PROFIS Engineering - Concrete-to-concrete (C2C) Module
With the newly launch C2C module in PROFIS Engineering, you can now design post-installed rebar connection without the use of spreadsheet.
Select Concrete-to-Concrete Module in PROFIS Engineering:

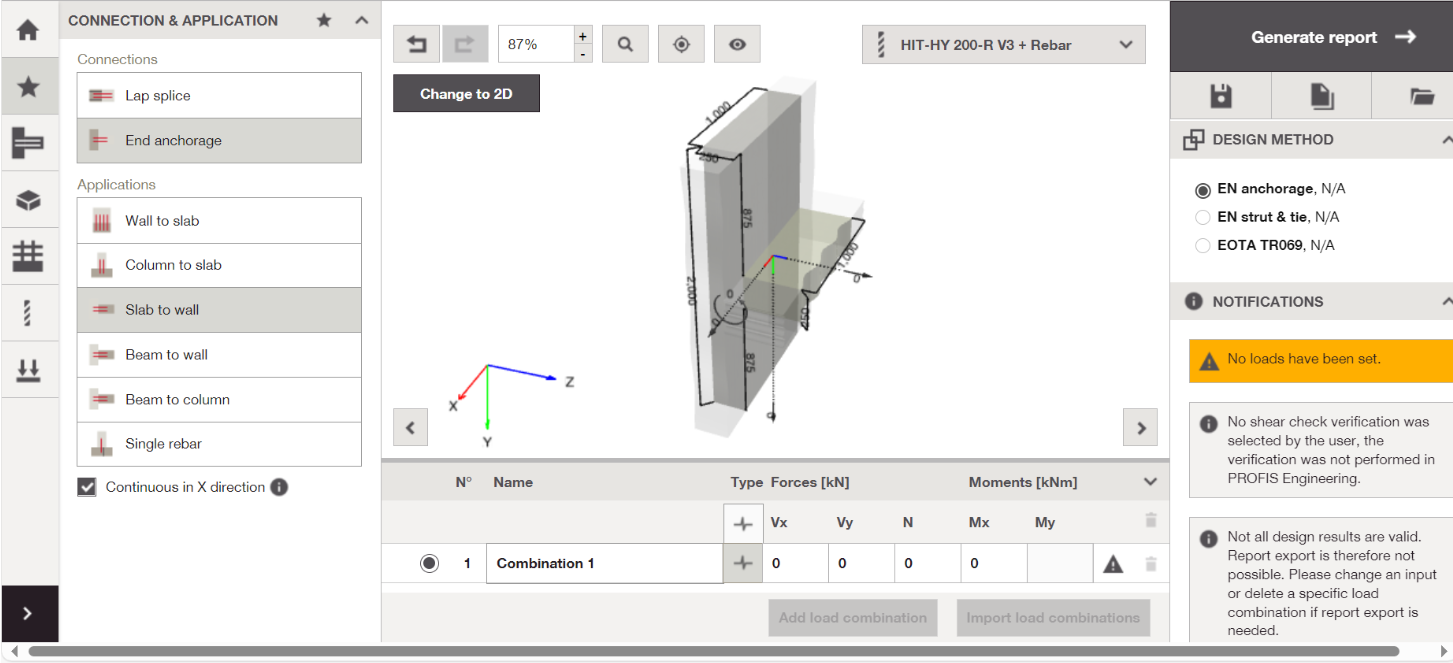

Select "end anchorage" and your corresponding application:
If you have the loading for individual rebar and wish to go for a "per bar" analysis, please select "Single Rebar".

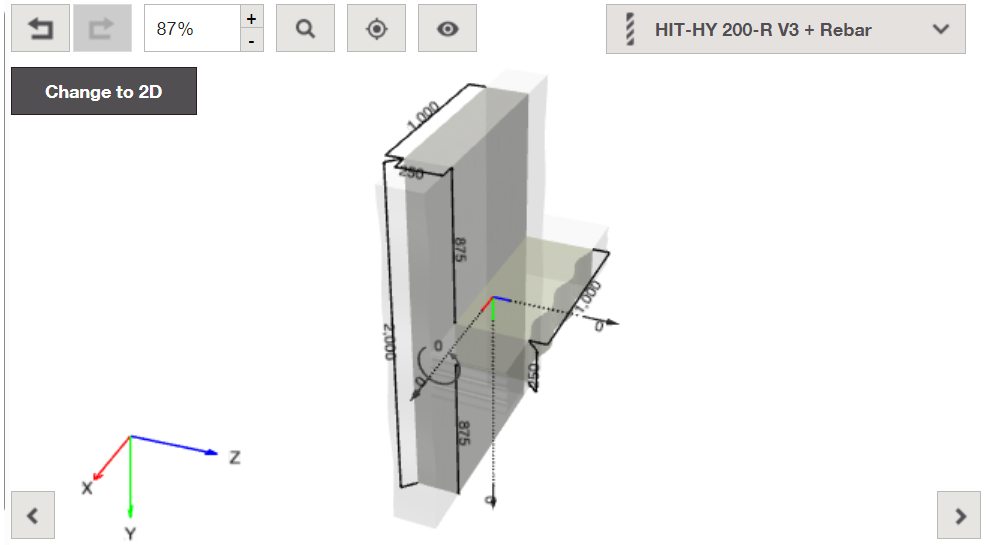

Adjust the geometry of the connection and enter your loading:
You can input the dimension and loading of your connection in the center session of the interface. Please note that under EC2, simply support is assumed and only shear force is allowed.
Adjust the concrete grade:

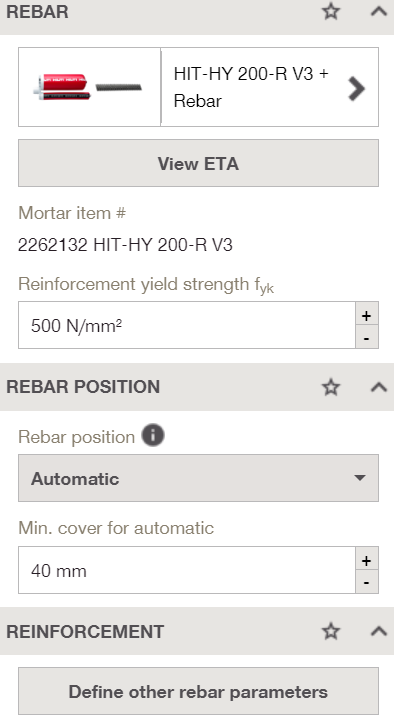

Enter the rebar configuration and corresponding product used:
By clicking "Define other rebar parameters", you can set tailor-made minimum and maximum area of reinforcement.
Corresponding result is shown on the right and report extraction:
Please note that the calculated embedment length under "EN Anchorage" is most commonly accepted in HK. Further engineering judgement is needed if you wish to go for "EN Strut & Tie" or "EOTA TR069".

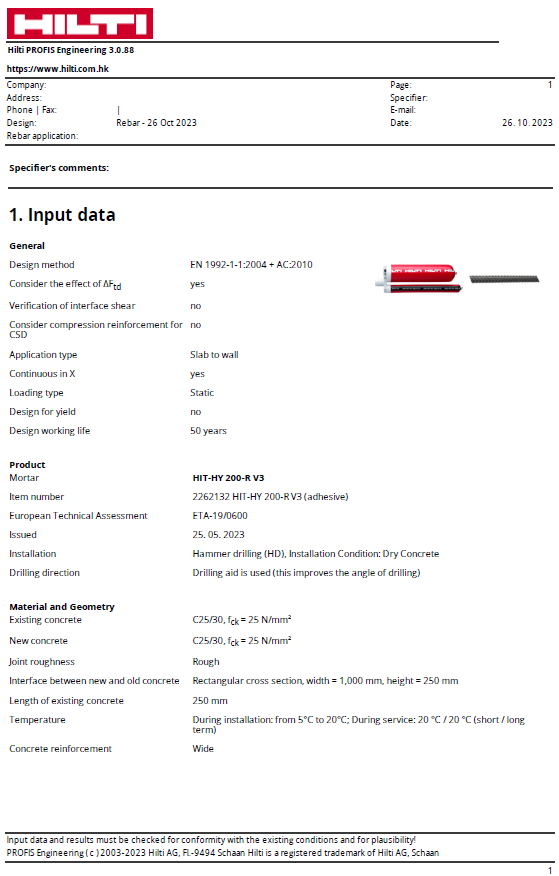

Click "Generate Report" to extract the calculation result for submission:
