MIB-SH

Baseplate MIB-SBH steel #2174675

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG002327_HDG_v1 (203018)
LCG001714_v1_cropped (179063)
IS_MIB-SBH_0001 (179900)

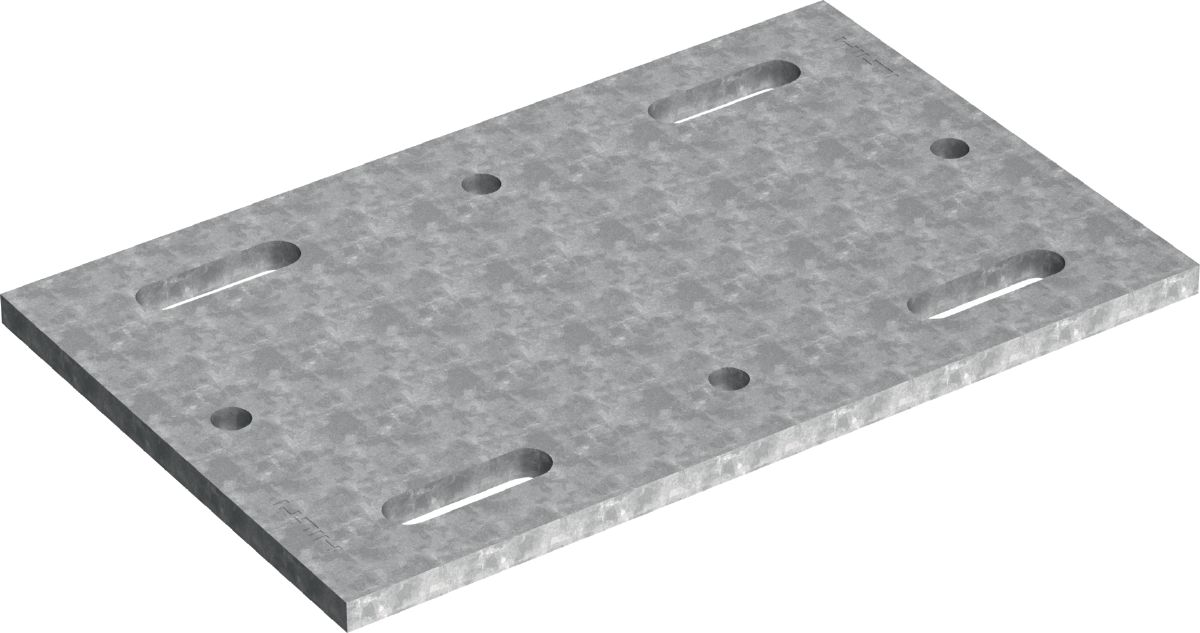

Hot-dip galvanised (HDG) baseplate for fastening MI girders to steel

  • Weight: 7.44 kg
  • Material composition: DD11 MOD - HN 547, S235JR - DIN EN 10025
  • Surface finish: HDG: min 55 µm - DIN EN ISO 1461

Choose options

Steel beam width
  • 165 - 235 mm
Modular Girder Type
  • 90, 120
Pack size
  • 2 pc
 Product options
Quantity
Packs
Total Pieces
2
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
HKD 2,142.25
HKD 1,071.13
/
1 Piece

Technical Data

Details

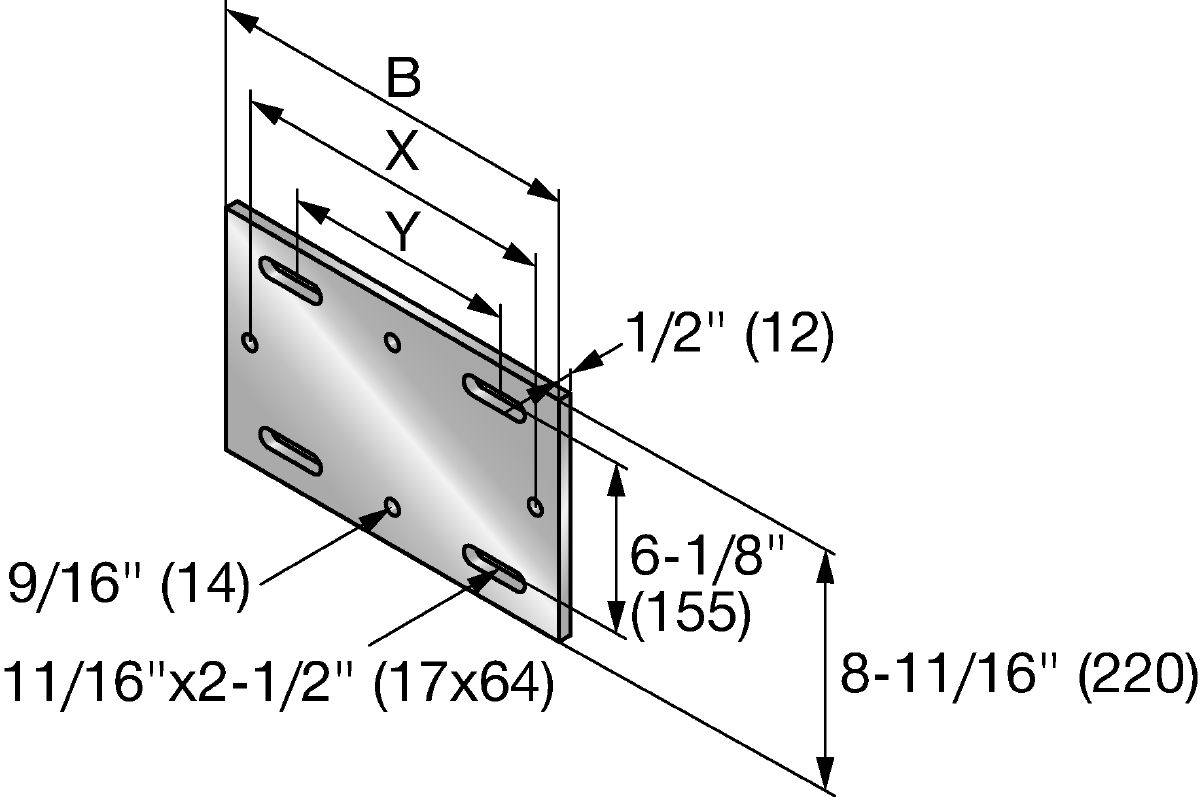

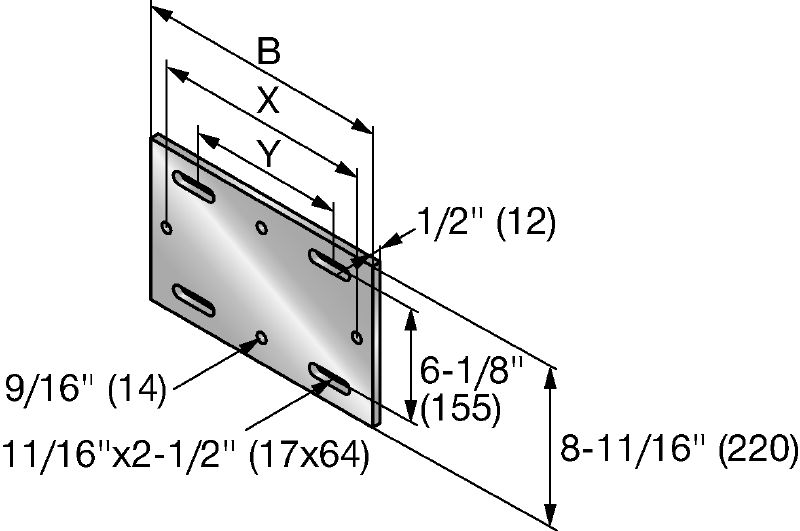

Technical illustrations
Weight
7.44 kg
Material composition
DD11 MOD - HN 547, S235JR - DIN EN 10025
Surface finish
HDG: min 55 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Width - B
350 mm
X
300 mm
Y
214 mm

Documents

pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Girder connection point can be positioned as desired for special cases
  • All steel beam widths from 75-300 mm covered by only 3 plates
  • High-strength part designed for extra-high application loads

Applications

  • Connection to steel using M16 threaded rods
  • For MI 90/MI 120 girders in combination with MIC-SC90/MIC-SC120 connectors
  • Industrial and heavy commercial applications, eliminating the need for welding
  • Supporting cable trays, pipes and miscellaneous secondary steel
  • Recommended for use in moderately corrosive outdoor and indoor environments
