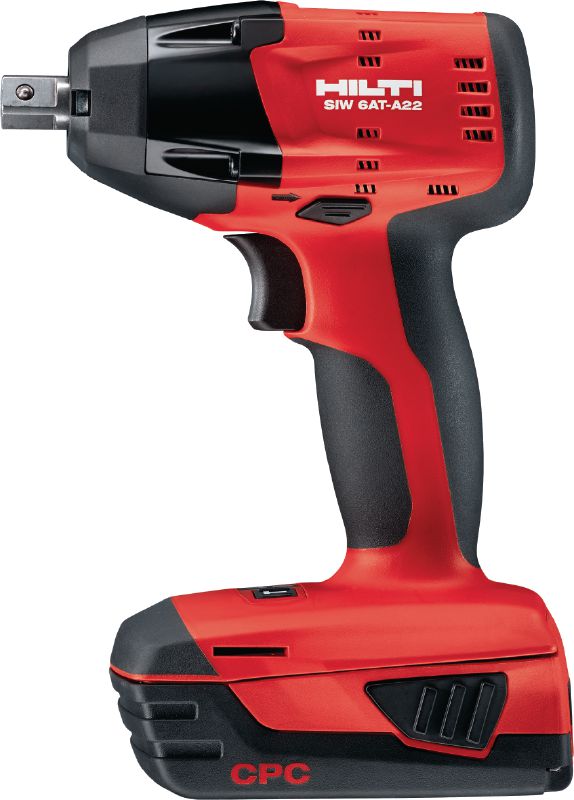

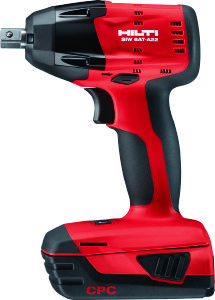

SIW 6AT-A22 Cordless impact wrench

Cordl. imp. wrench SIW 6AT-A22 case #2112536

SIW 6AT-A22, B22 (81464)
SIW 6AT-A22, SI-AT-A22, B22, SI-S, Kwik-HUS, HUS3 (83483)
SIW 6AT-A22, SI-AT-A22, B22, SI-S, KB-TZ, MQN, HST3 (83489)
SIW 6AT-A22, SI-AT-A22, B22, SI-S, KB-TZ, HST3 (83485)
SIW 6AT-A22, SI-AT-A22, B22, SI-S, MQN (83486)
SIW 6AT-A22, B22 (81464)
SIW 6AT-A22, SI-AT-A22, B22, SI-S, Kwik-HUS, HUS3 (83483)
SIW 6AT-A22, SI-AT-A22, B22, SI-S, KB-TZ, MQN, HST3 (83489)
SIW 6AT-A22, SI-AT-A22, B22, SI-S, KB-TZ, HST3 (83485)
SIW 6AT-A22, SI-AT-A22, B22, SI-S, MQN (83486)

Power-class 22V light-torque impact wrench with 1/2" detent anvil for anchoring and bolting

  • Anvil type: 1/2" detent pin
  • Maximum torque: 90 Nm (1); 135 Nm (2); 213 Nm (3)
  • Full hammering frequency: 3500 impacts/minute

Customers also searched for cordless impact wrench, 22v wrench, Hilti Impact Wrench, Hilti SIW or Impact wrench.

Customize your kit

Tool Body
Tool body with case
How many kits do you want to order?
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
HKD 2,563.66

Technical Data

Anvil type
1/2" detent pin
Maximum torque
90 Nm (1); 135 Nm (2); 213 Nm (3) 1
Full hammering frequency
3500 impacts/minute
Number of gears
3
No load RPM
gear 1: 1000 rpm; gear 2: 1500 rpm; gear 3: 2300 rpm
Dimensions (LxWxH)
154 x 94 x 228 mm
Tool body weight
1.04 kg
A-weighted emission sound pressure level
94 dB (A) 2
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

  • High-efficiency brushless motor means the tool lasts longer and gets more work done per charge
  • Compact design for use wherever space is limited
  • Three gears and electronic speed control for easy switching between different driving speeds and torque
  • Four bright LEDs around the chuck provide direct illumination of the work surface
  • Compatible with the Hilti SI-AT-A22 Adaptive Torque module for controlled fastenings

Applications

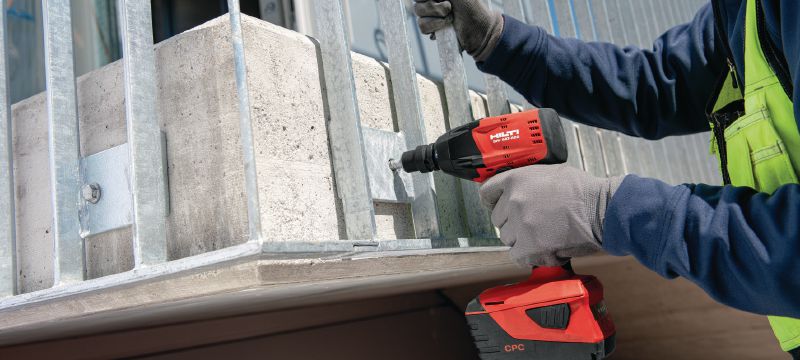

  • Driving 6 mm and 8 mm HUS3 screw anchors in concrete
  • Driving screws in HRD frame anchors 8 mm and 10 mm in diameter in masonry and concrete
  • Driving lag bolts up to 8 mm in diameter in wood
  • Driving lag bolts up to 1/2" in diameter

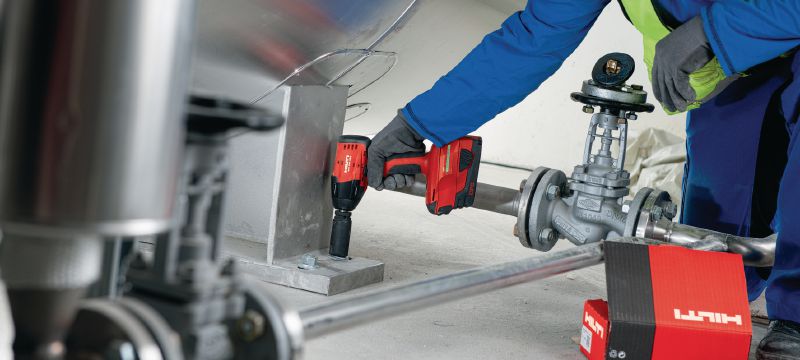

  • Tightening and releasing nuts and bolts in sizes M8 to M16

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped at max. 40% of the price of an equivalent new tool
  • 3-month no-cost period after each repair
