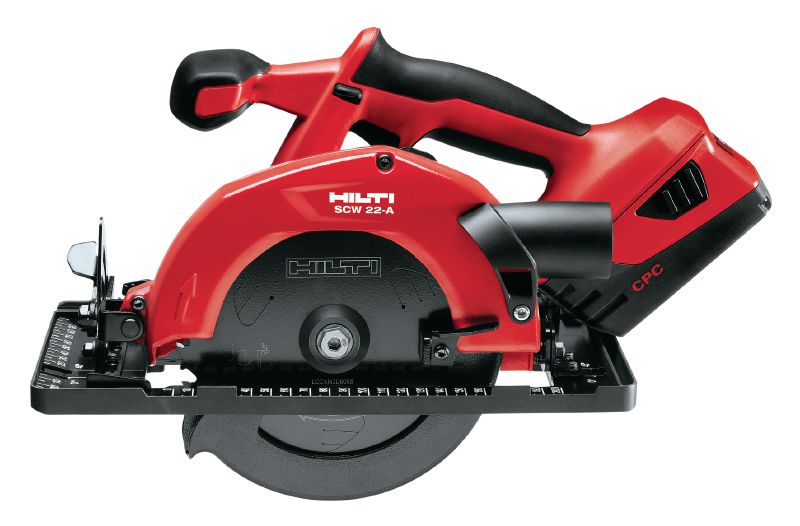

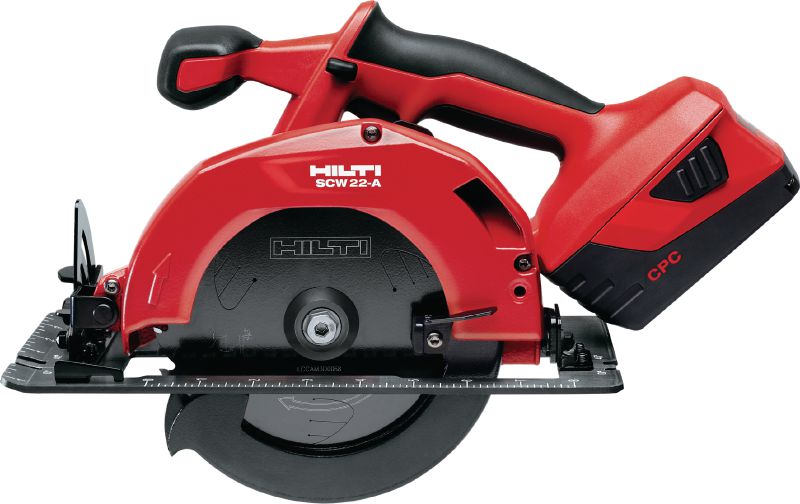

SCW 22-A Cordless circular saw

Cordl. circular saw SCW 22-A case #423165

SCW 22-A without battery pack
46593.tif
46594.tif

22V cordless circular saw with optimised power-to-weight ratio for straight cuts up to 57 mm depth

  • Max. cutting depth: 57 mm
  • Blade diameter: 165 mm
  • Base material: Wood, Sandwich panel

Customize your kit

Tool Body
Tool body with case Includes: 1x Rail adapter SCW assy, 1x Parallel guide, 1x Case SCW 22-A
How many kits do you want to order?
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
HKD 3,680.80

Technical Data

Max. cutting depth
57 mm
Blade diameter
165 mm
Base material
Wood, Sandwich panel
No load RPM
gear 1: 4000 rpm
Guiding rail compatibility
Yes
Dimensions (LxWxH)
393 x 208 x 241 mm
Cutting depth at 45 degrees
42 mm
Max. bevel angle
50 °
A-weighted emission sound pressure level
93 dB (A) 1
Triaxial vibration value for sawing into wood (ah,W)
1.2 m/s² 2
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SCW 22-A (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Japanese, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Chinese [ 7.7 MB ]

Features & Applications

Features

  • Compact and mobile – for cut-as-you-go work on the jobsite
  • Rapid blade stop and dust extraction for maximum safety
  • Low weight makes the circular saw more versatile and less tiring to use in any position
  • Suitable for use with the Hilti guide rail
  • Dust extraction

Applications

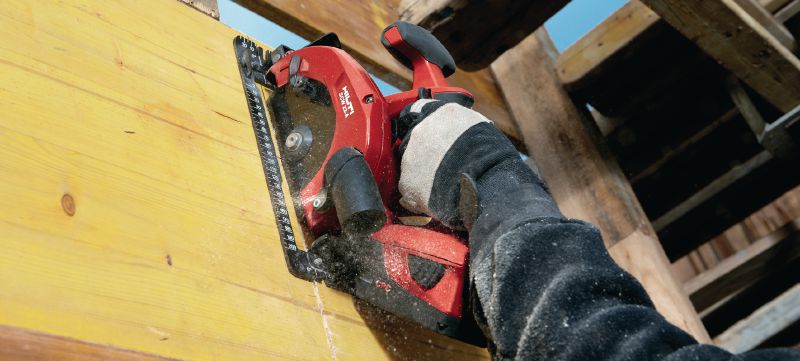

  • General construction – cutting formwork boards, OSB, plywood, chipboard, plastics, rafters and battens

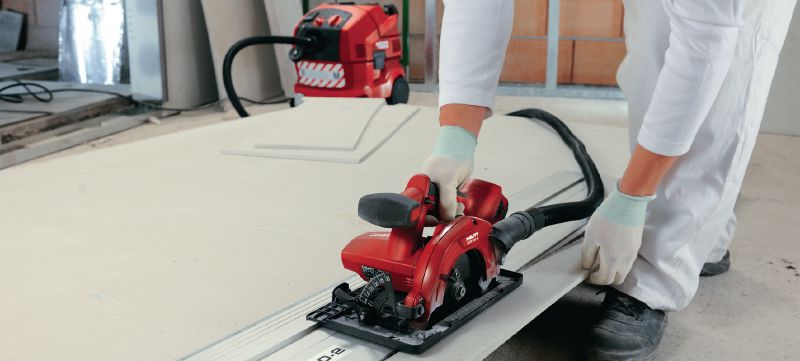

  • Interior finishing – cutting plasterboard, cement board, MDF and HDF
  • Cutting formwork boards, planks, battens, OSB, chipboard, plywood sheets and plastics
  • Trimming and fitting wood and sheet materials
  • Ripping and crosscutting as well as bevel and mitre cuts

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped at max. 40% of the price of an equivalent new tool
  • 3-month no-cost period after each repair
