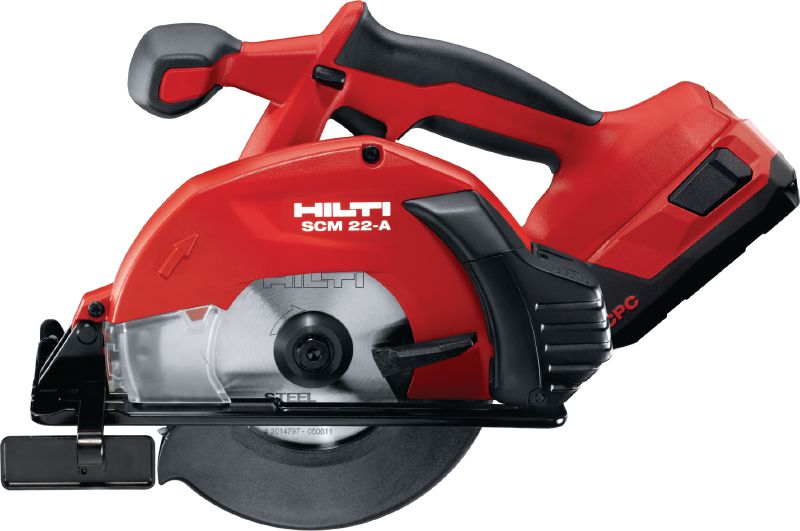

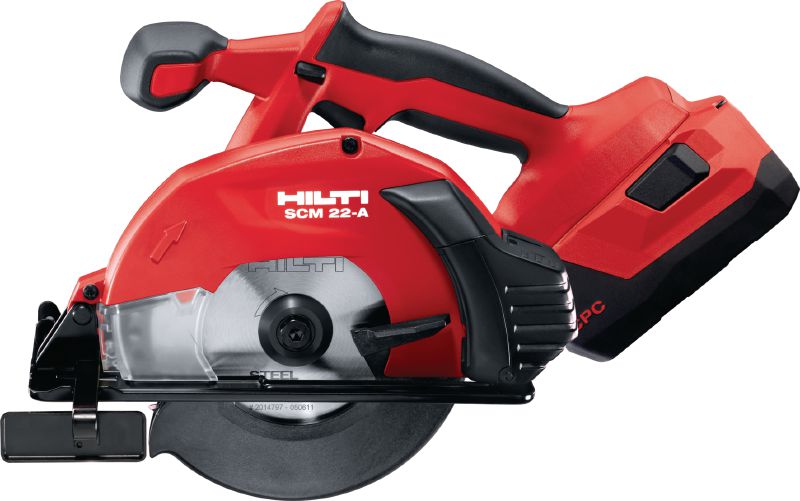

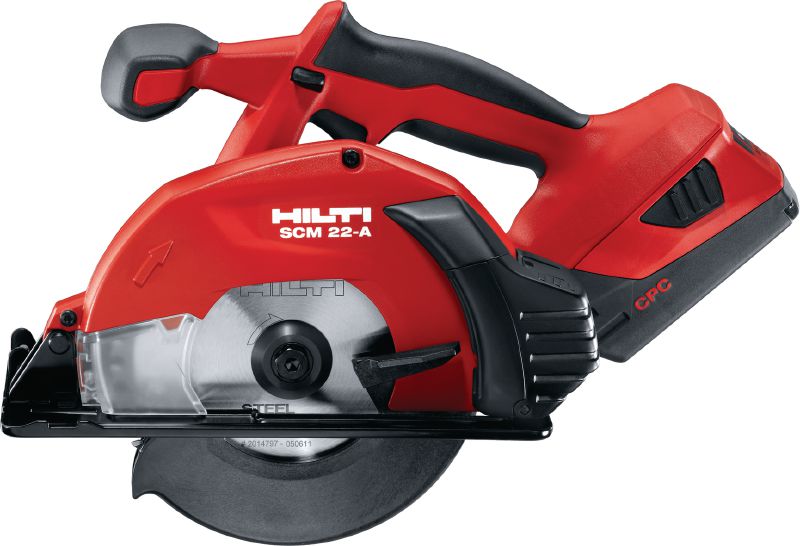

SCM 22-A Cordless metal saw

Cordl. circular saw SCM 22-A case #2024449

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
L049210.tif
SCM 22-A, WGS 1400-2, Guiding rail (71456)
SCM 22-A_app3_L050696.tif

Cordless 22V circular saw operated by Li-ion battery featuring guide rail compatibility and metal chip collector for cold metal cutting

  • Max. cutting depth: 57 mm
  • Blade diameter: 165 mm
  • Base material: Metal, Sandwich panel

Customize your kit

Tool Body
Tool body with case Includes: 1x Circ. saw blade SCBM XCut Struct 165 A, 1x Parallel guide, 1x Case SCM 22-A
How many kits do you want to order?
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
HKD 3,801.20

Technical Data

Max. cutting depth
57 mm
Blade diameter
165 mm
Base material
Metal, Sandwich panel
No load RPM
gear 1: 3500 rpm
Guiding rail compatibility
Yes
Dimensions (LxWxH)
370 x 206 x 242 mm
A-weighted emission sound pressure level
93 dB (A) 1
Triaxial vibration value for sawing into metal (ah,M)
0.82 m/s² 2
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SCM 18-A (01), Arabic, Bulgarian, cn, Danish, German, Estonian, Finnish, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Romanian, Russian, Swedish, Turkish, Chinese [ 4.8 MB ]
pdf Operating Instruction China RoHS II, cn, English, Chinese [ 14.2 KB ]

Features & Applications

Features

  • More than 100 cuts in MQ41 channel possible with one battery charge
  • Weight of less than 4 kg for best handling and ease of use
  • Blade brake stops the blade in less than 0.5 sec for maximum safety and convenience
  • Effective chip collector for a clean working environment
  • LED lamp built into the front section of the blade guard for shadowless illumination of the cutting line

Applications

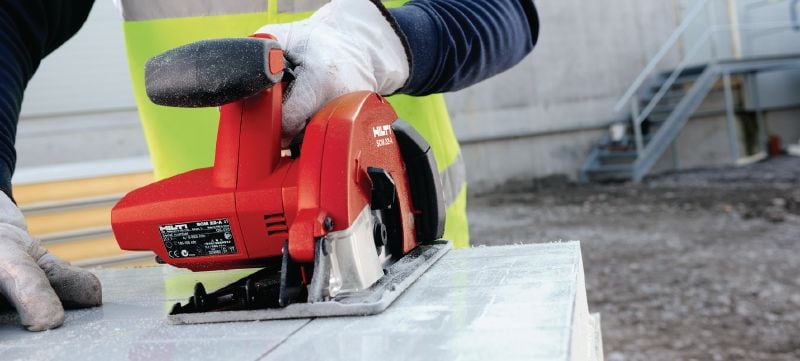

  • Cutting channels and pipes on the jobsite quickly, with the highest possible accuracy
  • Cutting openings in sheet metal in heating and air conditioning installation work
  • Cutting sandwich panels, mesh and corrugated sheet metal
  • Corrective cutting and trimming of sheet metal on the jobsite
  • Cutting channels, pipes, conduits and profiles quickly and accurately

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped at max. 40% of the price of an equivalent new tool
  • 3-month no-cost period after each repair
