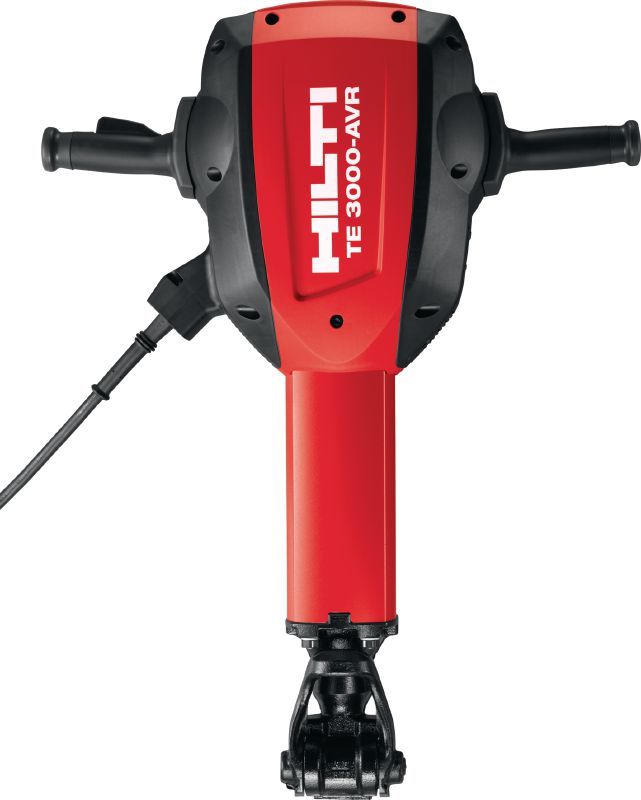

TE 3000-AVR Heavy-duty electric jackhammer
Exceptionally powerful electric jackhammer for heavy-duty floor demolition (with universal power cord)
- Working direction: Floor
- Tool chuck type: HEX 28
- Weight according to EPTA-Procedure 01/2003 without battery: 29.9 kg
Technical Data
Working direction
Floor
Tool chuck type
HEX 28
Weight according to EPTA-Procedure 01/2003 without battery
29.9 kg
Single impact energy
68 J
Full hammering frequency
860 impacts/minute
Max. chiselling performance
40000 cm³/min
Dimensions (LxWxH)
808 x 610 x 209 mm
Triaxial vibration for chiselling in concrete
6.3 m/s² 1
- According to the applicable product standard (see the Operating Instruction for more details)
Features & Applications
Features
- Highest demolition performance of all Hilti breakers – on par with 30 kg / 60 lb air hammers – for rapid progress in big concrete demolition jobs
- Virtually maintenance-free brushless SR motor and triple-chamber lubrication systems for longer service intervals and tool lifetime
- Increased user comfort due to AVR (Active Vibration Reduction) with two fully decoupled handles
- Detachable, universal supply cord for faster and easier replacement of damaged/broken power cables on the jobsite – designed to be compatible with other selected Hilti tools
- Optional TE DRS-3000 dust removal system, which collects up to 95% of dust
Applications

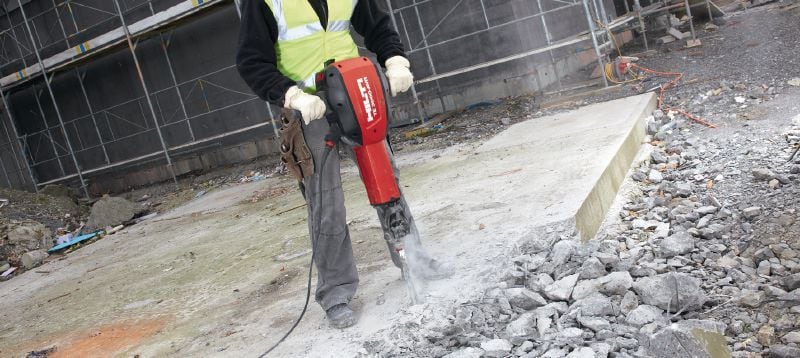

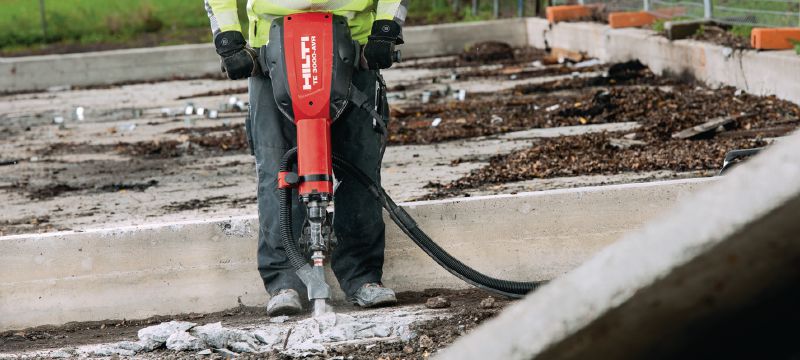

- Medium to heavy-duty demolition of concrete slabs and foundations
- Breaking up asphalt in road building, pipe laying and repair work
- Removing concrete for rebar connections and utility connections

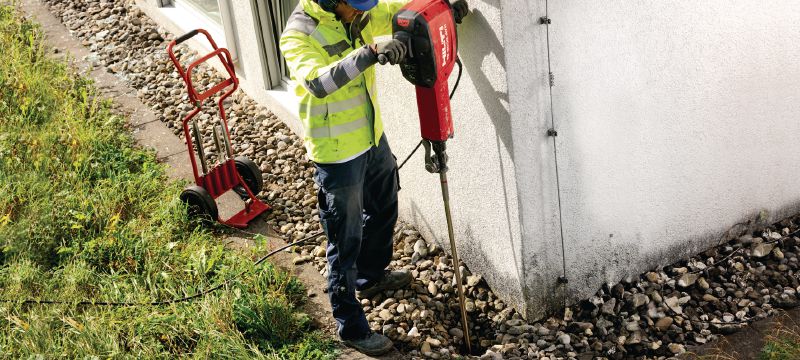

- Digging and tamping in earthwork
For approval or certificate information, please see individual items.
