HOW TO DESIGN ANCHOR CHANNELS

Hilti PROFIS Anchor Channel

Hilti PROFIS Anchor Channel software

Add Hilti’s expertise on anchor channels to your own, to design façades, lift shafts and other anchor channel applications.

Hilti PROFIS Anchor Channel design software is based on a wide range of design methods. It includes international codes ACI, EOTA, CEN, SA-TS101 or design using our own Hilti design methods based on more than 60 years of anchor fastening expertise and research.

Hilti PROFIS Anchor Channel design software helps to save you time:

  • Find solutions faster using our Hilti PROFIS Anchor Channel’s geometry adjustment feature
  • Optimization functions help you to find the right solution for your application.
  • You can also input custom plates using the custom geometry function

Hilti PROFIS Anchor Channel is used all over the world and has designed core elements of major structures and skyscrapers in Hong Kong, China, the Middle East and the United States.

If you need help, we can also offer local Hilti engineering advice.

Or if you’re working on a particularly daring or innovative build – then our global engineers can support you. They can think through with you just how far you can safely take our Hilti anchor channels and solutions.

ACCESS HILTI PROFIS ANCHOR CHANNEL

You can access Hilti PROFIS Anchor Channel free of charge here at Hilti Online. Just sign up or log in.

OUR HILTI ENGINEERING SERVICE

If you’d like help with your design, our expert Hilti engineers can design anchor channel fastener systems for you. For more information, contact your local Hilti team.

Professional development and expert advice on one digital platform

RELATED SOFTWARE

ASK AN ENGINEER

  • Do you have a technical question? Don’t hesitate to contact us.

    8228-8118

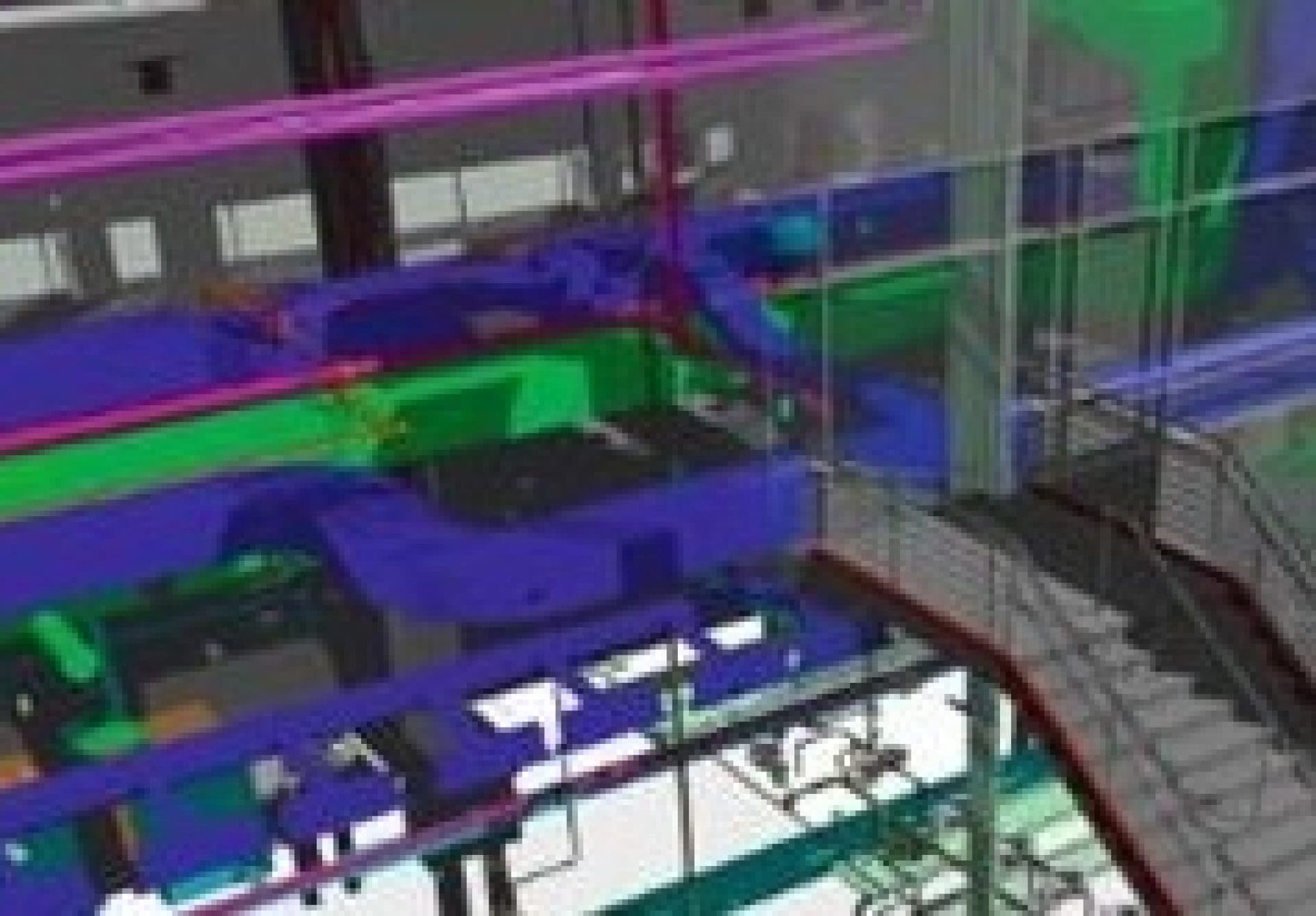

Hilti BIM/CAD library
