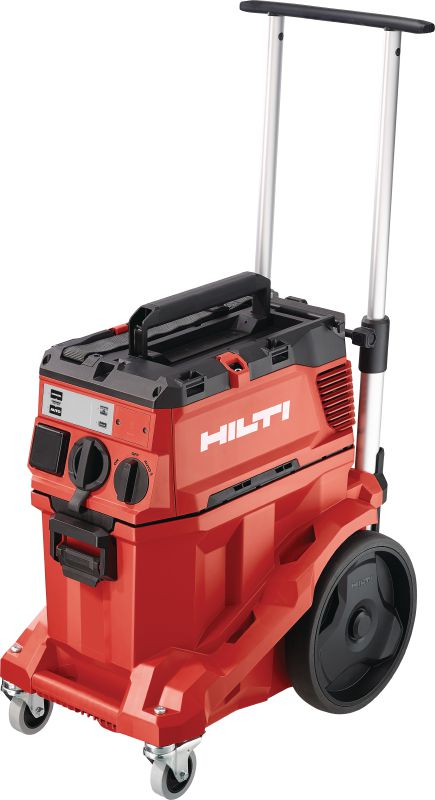

VC 40M-X M-Class dust extractor (ACD)

Dust extr. VC 40MX ACD 110V (16A) #2411703

Configurator
Technical Data
Features & Applications
Related Products
L124479_v6_2024 (3532971)
L150885_cropped (3549355)
L150900_cropped (3549363)
L150925_cropped (3549367)

Powerful dust extractor with large container and push-bar for connection with power tools and jobsite clean ups (wet & dry), 30l tank – ACD certified vacuum

  • Air Flow Motor Alone: 74 l/s
  • Air Flow at Hose End: 39 l/s
  • Max. Vacuum: 24.5 kPa

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
HKD 9,564.78
HKD 9,564.78
/
1 Piece

Technical Data

Air Flow Motor Alone
74 l/s
Air Flow at Hose End
39 l/s
Max. Vacuum
24.5 kPa
Water capacity
22.8 l
Dust capacity
30 kg
Dust class
M
Application
Cleaning, Drilling and breaking, Wood batten, Wood sawing, Cutting and grinding (light, up to 125 mm / 5 in), Drywall and wood sanding, Wet coring, Socket cutting
Integrated power socket
Yes
Max socket output power
1200 W
Power source
Corded
Suction capacity
74 l/s
Supply cord length
7000 mm
Dimensions (LxWxH)
560 x 365 x 590 mm
Weight according to EPTA-Procedure 01/2003 without battery
14.4 kg

Features & Applications

Features

  • Sturdy M-class dust extractor built for construction work – integrated push-bar for mobility over longer distances and extra-durable components to withstand the harshest jobsite conditions
  • Extremely durable tyres – help to withstand water, heat and punctures when in use on construction sites
  • Automatic filter cleaning – adaptive filter cleaning maintains consistent suction performance and activates only when necessary, helping reduce noise and work interruptions
  • Increased versatility – simply attach your VC 40M-X vacuum top to a VC continuous bag system for more capacity and faster bag swaps to match your application
  • Easy organization and transport – keep your gear stored with built-in accessories, including a belt strap for extra tool storage space, bungee cords for hose and power cable storage and optional soft bag for spare filters and more

Applications

  • dust extraction from grinding, cutting, slitting, drilling and dry coring tools
  • Wet and dry cleaning
  • Removing slurry during wet coring applications
  • ACD certified – meets the criteria for an appliance for combustible dust (ACD) for picking up fine particles that can ignite or explode when mixed with air (e.g. during woodworking or metalworking)
  • M-Class vacuum – for capturing 99.9% of dust with a grain size under two microns
