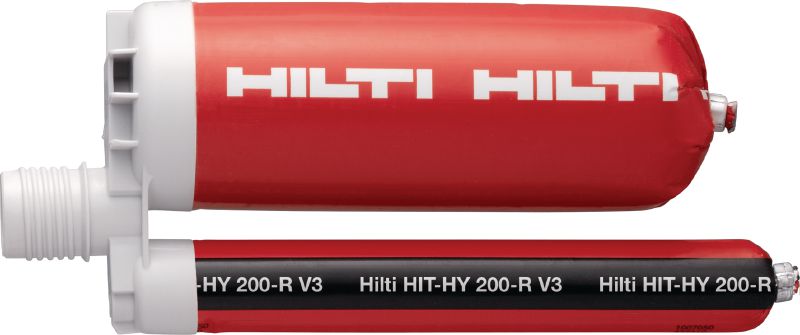

HIT-HY 200-R V3 Adhesive anchor

Ultimate-performance injectable hybrid mortar with approvals for rebar connections

Base materials: Concrete (non-cracked)
Base material condition: Dry, Wet
Approvals / test reports: ETA, ICC-ES report (concrete)

Technical Data

Base materials

Concrete (non-cracked)

Base material condition

Dry, Wet

Approvals / test reports

ETA, ICC-ES report (concrete)

PROFIS software

Yes

Anchoring elements

HAS threaded rods, HAS-U threaded rods, HIT-Z torque-controlled bonded anchors, Rebar

Environmental conditions

Dry indoor, Highly corrosive special applications (e.g. tunnels, swimming pools), Indoor with temporary condensation, Outdoor (more than 1km to coast)

Cleaning procedures

Compressed-air cleaning, Manual cleaning

Storage and transportation temperature range

5 - 25 °C

In-service temperature – range

-40 - 120 °C

Free of styrene

Yes

Documents

Features & Applications

Features

Can result in post-installed rebar with performance higher than cast-in bars

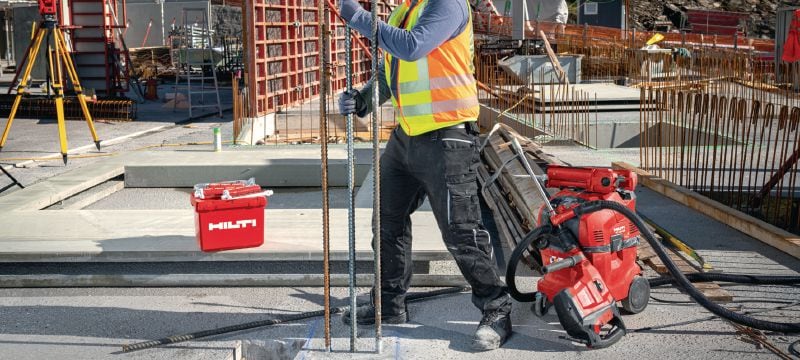

Part of Hilti SafeSet system – no extra hole cleaning may be needed if you're drilling with TE-CD or TE-YD hollow drill bits in combination with Hilti vacuum cleaners
Fulfils the requirements of the most demanding ICC-ES and ETA C2 approvals for seismic applications
Working time optimised for rebar applications
Holds ETA approvals for rebar and anchor designs with a service life up to 100 years

Applications

Anchoring structural steel connections (e.g. steel columns, beams)
Anchoring secondary steel structures (e.g. racking, guard rails, sound barriers)
Strengthening concrete and retrofitting reinforced concrete buildings

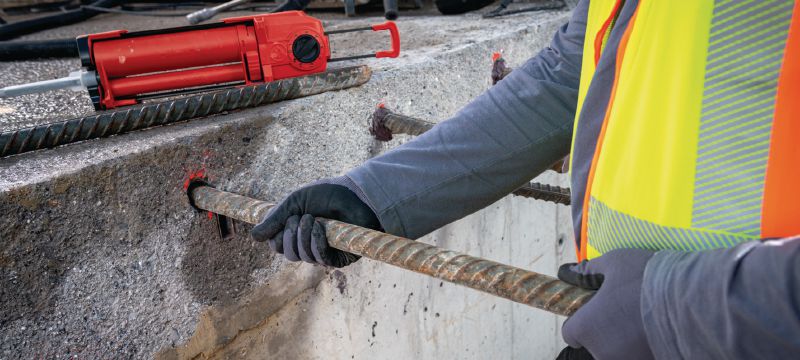

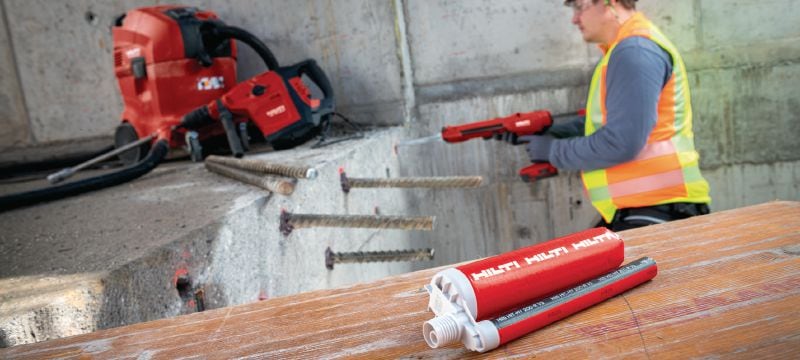

Structural concrete connections with post-installed rebar

For approval or certificate information, please see individual items.
