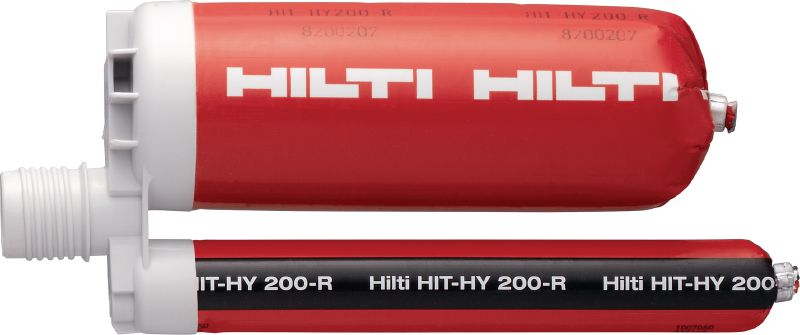

HIT-HY 200-R Adhesive anchor

HIT HY200 with HDB hollow drill bit HDB scribble – ENGLISH

Hilti HIT-HY 200 system with Safe Set™ technology

Hilti HIT-HY 200 adhesive anchor installation instructions

Ultimate-performance injectable hybrid mortar with approvals for rebar connections and heavy-duty anchoring

Base materials: Concrete (cracked), Concrete (non-cracked), Masonry (solid)
Base material condition: Dry, Wet
Approvals / test reports: ETA, Fire, Seismic

Customers also searched for Chemical anchor , Injection mortar, Chemical mortar, Cracked concrete or fast curing mortar.

Choose options

Content per can/cartridge

0.5 l

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

Price loading error occured

Please contact us

Technical Data

Base materials

Concrete (cracked), Concrete (non-cracked), Masonry (solid)

Base material condition

Dry, Wet

Approvals / test reports

ETA, Fire, Seismic

Seismic loading

Yes

Fatigue loading

Fire resistance

Yes

PROFIS software

Yes

Anchoring elements

HIT-V threaded rods

Environmental conditions

Dry indoor, Indoor with temporary condensation, Outdoor (more than 1km to coast)

Cleaning procedures

Manual cleaning

Storage and transportation temperature range

5 - 25 °C

In-service temperature – range

-40 - 120 °C

Free of styrene

Yes

Type of fastening

Pre-fastening, Through-fastening

Documents

Features & Applications

Features

No hole cleaning required with the revolutionary new HIT-Z anchor rod

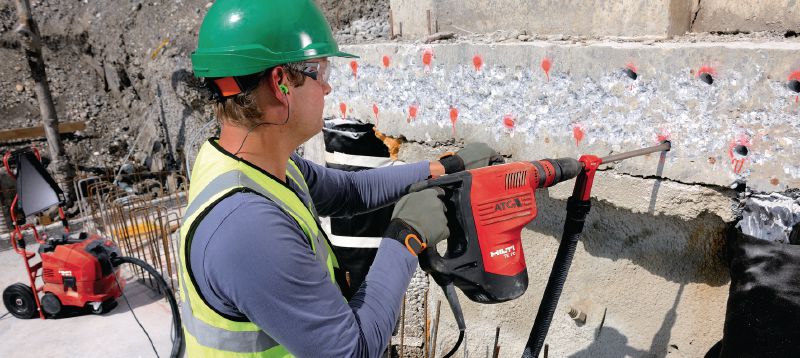

Automatic hole cleaning with TE-CD and TE-YD drill bits in combination with Hilti vacuum cleaners
Fulfils the requirements of the most demanding ICC-ES and ETA C2 approvals for seismic applications
Working time optimised for rebar and deep anchoring applications
Post-installed rebars perform like cast-in connections

Applications

Anchoring structural steel connections (e.g. steel columns, beams)
Anchoring secondary steel structures (e.g. racking, guard rails, sound barriers)
Anchoring safety barriers, balustrades, fire escape staircases
Seismic strengthening / retrofitting and bracing of reinforced concrete buildings
Structural splices / straight connections with post-installed rebars

For approval or certificate information, please see individual items.
