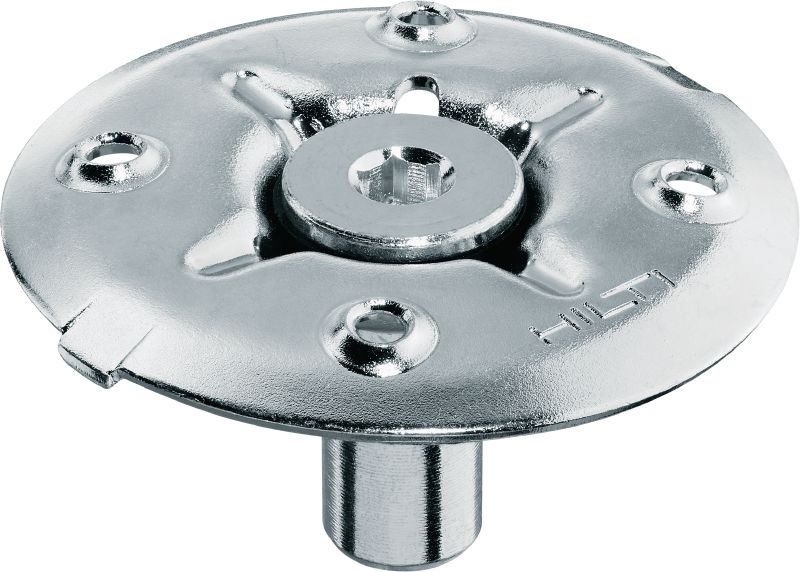

X-FCM-F Grating fastener disc (duplex coated)
New product UltimateItem #r1669
Duplex coated grating fastener disc for fixing floor grates with threaded studs in mildly corrosive environments
- Application: Grating
- Approvals: ABS, BV, DNV GL, LR
- For use with (tools): DX 351
Share
Features
- Labour-saving grating installation – fewer steps than traditional grating clamps and welding
- Approvals and certificates – technical data, test reports and approvals available
- No surface rework needed – when fastening grating to steel with S-BT and X-BT threaded studs
- Durable hold – locking tabs on the disc help to prevent loosening or spinning
- Reduce trip hazards – non-slip surface and minimized protrusion on walkway gratings when correctly installed
Applications
- Fastening grating to steel in mildly corrosive C3 environments, such as power plants, industrial facilities and mining
- For gratings exposed to standard loads such as walkways
- Fastening steel grating
- Fastening fiber-reinforced plastic (FRP) grating
- Grating fastener disc for use with M8 threaded studs
For approval or certificate information, please see individual items.
Technical Data
Documents
-
- ETA-24/0018 for X-FCM Grating fasteners and X-FCP Checker plate fasteners, English, German, [ 3 MB ]
- LR Type Approval LR21394055TA for S-BT fastening system in off-shore, shipbuilding and industrial application, English, [ 470.9 kB ]
- RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English, [ 108.1 kB ]
- ABS Type Approval 22-2285526-PDA for X-FCM-R, X-FCM-F grating and X-FCP checker plate fasteners in marine, off-shore and industrial environments, English, [ 110.3 kB ]
- DNV Type Approval TAS00001UJ for X-FCM-R, X-FCM-F and X-FCS-R grating fasteners in marine and industrial environments, English, [ 209.6 kB ]
- BV Type Approval 71291-A0 for X-FCM-R, X-FCM-F and X-FCS-R grating fasteners in marine environments, English, [ 577.8 kB ]
