S-MD03PS Self-drilling metal screws

Self-drill screw S-MD03PS 5,5x32 #2229860

Configurator
Technical Data
Documents
Features & Applications
Related Products
L053373.tif

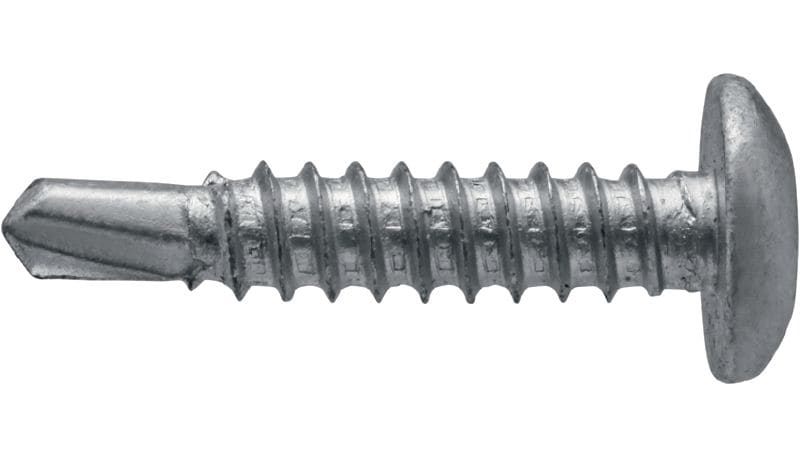

Self-drilling pan head screw (A2 stainless steel) without washer for medium-thick metal-to-metal fastenings (up to 6.0 mm)

  • Screw drive/recess type: TX 25
  • Base materials: Carbon steel, Aluminium
  • Environmental conditions: Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution

Choose options

Thickness fastened range MF
  • 2.6 - 17 mm
Drilling capacity range DC
  • 2.6 - 6 mm
Length
  • 32 mm
Pack size
  • 250 pc
 Product options
Quantity
Packs
Total Pieces
250
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
HKD 1,015.31
HKD 4.06
/
1 Piece

Technical Data

Screw drive/recess type
TX 25
Base materials
Carbon steel, Aluminium
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Screw diameter d
5.5 mm
Length
32 mm
Screw head diameter
12 mm
Washer type
none

Documents

Approval document
Reference document
Technical information
Sustainability Documentation
Operating Instruction
pdf DIBt Zulassung Z-14.4-769 für Fassadenschrauben S-MD, S-AD, S-MP, S-PD und S-PS, German, English [ 13.3 MB ]
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, German [ 4.4 MB ]
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, English [ 4.4 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Pan head for improved aesthetics and better accessibility in tight spaces
  • For reliable and corrosion-resistant fastenings
  • Fast and robust drill tip
  • For reliable fastenings with defined load values

Applications

  • Thin metal-to-metal connections (up to 6.0 mm)
  • Stainless steel (A2) for fastening in mildly corrosive environments
  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
