S-MD 03 SS Self-drilling metal screws

Configurator
Technical Data
Documents
Features & Applications
Related Products
Self Drilling Screw

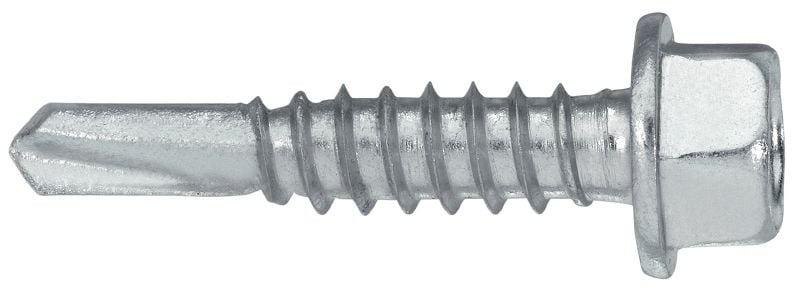

Self-drilling screw (A4 stainless steel) without washer for medium-thick metal-to-metal fastenings (up to 6 mm)

  • Screw drive/recess type: Hexagon 8
  • Base materials: Aluminium, Carbon steel
  • Environmental conditions: Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution, Outdoor, areas with heavy industrial pollution, Close proximity to roads, Coastal areas
premium

Customers also searched for 316 stainless.

Choose options

Drilling capacity range DC
  • 2.6 - 6 mm
Length
  • 25 mm
  • 32 mm
Pack size
  • 250 pc
  • 500 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From HKD 3.51

Technical Data

Screw drive/recess type
Hexagon 8
Base materials
Aluminium, Carbon steel
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution, Outdoor, areas with heavy industrial pollution, Close proximity to roads, Coastal areas
Screw diameter d
5.5 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
none

Documents

Approval document
Reference document
Technical information
Submittal
Sustainability Documentation
Instruction for use
Operating Instruction
pdf DIBt Zulassung Z-14.4-769 für Fassadenschrauben S-MD, S-AD, S-MP, S-PD und S-PS, German, English [ 13.3 MB ]
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, German [ 4.4 MB ]
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, English [ 4.4 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and help prevents point burn-out
  • For reliable fastenings with defined load values
  • Attractive final appearance – screw head can be coloured to match the façade
  • Reliable, highly corrosion-resistant fastenings

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Stainless steel (A4) for fastening in highly corrosive environments
  • Thin to medium-thick metal-to-metal connections (up to 6 mm)
  • 0

For approval or certificate information, please see individual items.
