S-MD 01/S-MD 03/S-MD 05 ZW Self-drilling metal screws

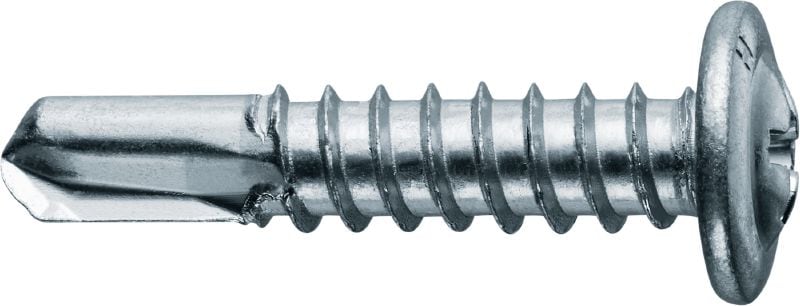

Self-drill screw S-MD01ZW 5,5x19 #408761
Self-drilling wafer head screw (zinc-plated carbon steel) without washer for metal to metal fastening
- Screw drive/recess type: PH #2
- Base materials: Carbon steel
- Environmental conditions: Dry indoor
premium
Choose options
Thickness fastened range MF
- 1.2 - 7.5 mm
Drilling capacity range DC
- 1.25 - 3 mm
Length
- 19 mm
Pack size
- 1000 pc
Quantity
Packs
Total Piece
1000
Discounted net
HKD 370.50
HKD 0.37 / 1 Piece
Technical Data
Screw drive/recess type
PH #2
Base materials
Carbon steel
Environmental conditions
Dry indoor
Screw diameter d
5.5 mm
Length
19 mm
Screw head diameter
11 mm
Product class
Premium
Washer type
none
Documents
Features & Applications
Features
- Self-drilling screw for fast assembly in one step
- Fast and robust drill tip
- For reliable fastenings with defined load values
- Attractive final appearance – screw head can be coloured to match the façade
- Flat head for low profile
Applications
- Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
- Metal-to-metal connections
- Fastening sheet to cold-rolled steel
