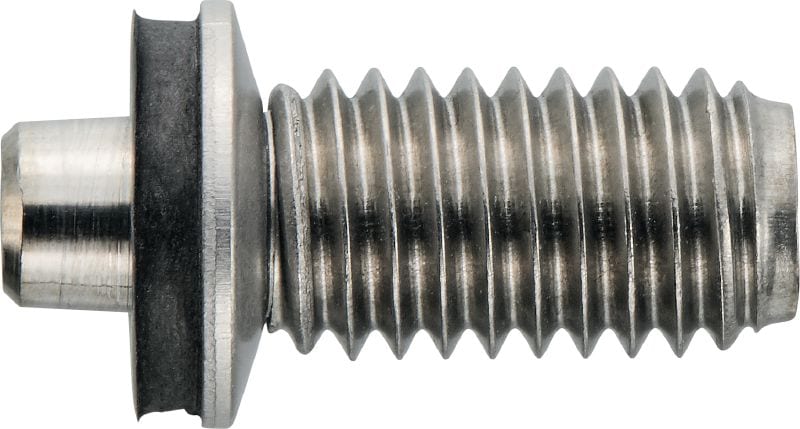

X-BT-GR Stainless steel threaded studs

Threaded stud for fastening grating and checker plate to steel

  • Base materials: Steel, Stainless steel, Cast iron
  • Minimum thickness of base material (steel): 8 mm
  • Corrosion protection: Corrosion protection equivalent to A4(316)
ultimate

Technical Data

Base materials
Steel, Stainless steel, Cast iron
Minimum thickness of base material (steel)
8 mm
Corrosion protection
Corrosion protection equivalent to A4(316)
Environmental conditions
Outdoor, areas with heavy industrial pollution
Material
Duplex stainless steel (1.4462)
Thread diameter
8 mm
Point type
Blunt tip
Approvals
ABS, BV, DNV, LR, UL
Product class
Ultimate

Documents

Features & Applications

Features

  • No rework necessary on coated steel – corrosion protection remains intact
  • Secure – creates a true weld to the base material for an extremely strong hold and high loading capacity
  • Portable, cordless system – eliminates the need for long electric supply cords
  • Fast – ideal for fastening directly to coated or treated steel
  • Corrosion-resistant – suitable for marine, offshore and petrochemical applications, power plants, etc.

Applications

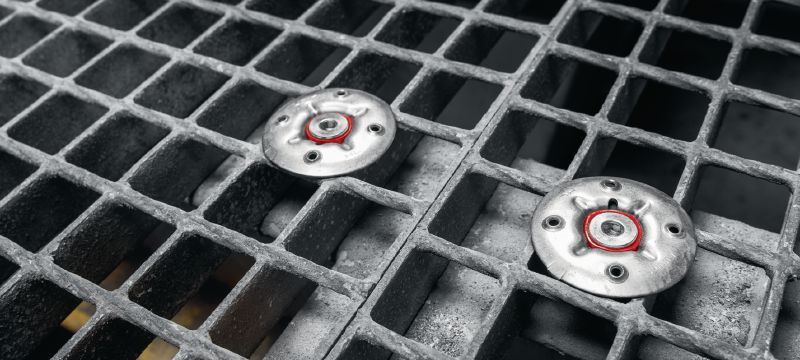

  • Fastening gratings to steel structures using X-FCM-M or X-FCM-R grating discs and X-FCS grating elements
  • Fastening cable trays, channels, strut, light-duty electrical installation (T-bars, instrumentation panels, junction boxes), fitting out and much more
  • Fastening threaded rod to steel
  • Fastening to fire-coated (PFP) beams
  • Fastening checker plate with X-FCP-R grating discs

For approval or certificate information, please see individual items.
