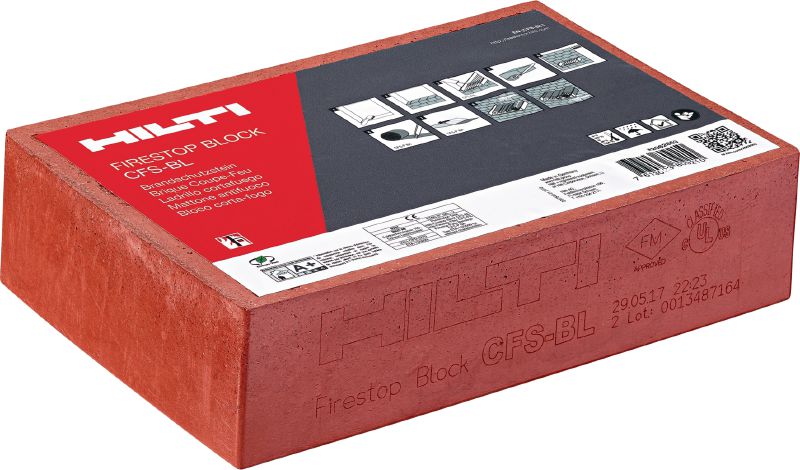

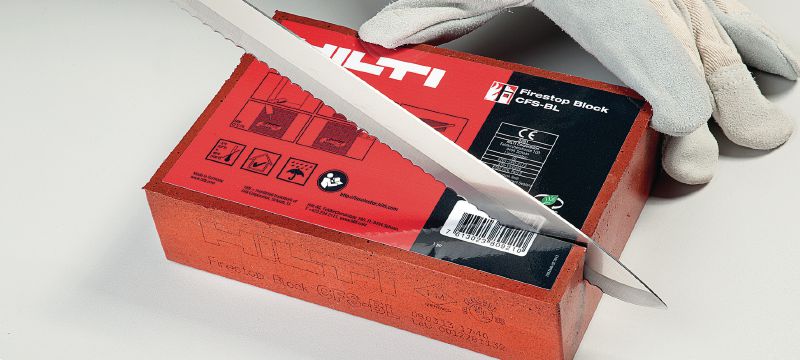

CFS-BL firestop block
Preformed firestop blocks for sealing penetrations with cables
- Dimensions (LxWxH): 200 x 130 x 50 mm
- Base materials: Concrete, Masonry, Gypsum board, Sandwich Panel, Multi
- Storage and transportation temperature range: -5 - 40 °C
ultimate
Technical Data
Dimensions (LxWxH)
200 x 130 x 50 mm
Base materials
Concrete, Masonry, Gypsum board, Sandwich Panel, Multi
Storage and transportation temperature range
-5 - 40 °C
Application temperature range
5 - 40 °C
Reaction to fire class (EN 13501-1)
E
Product class
Ultimate
Documents
Features & Applications
Features

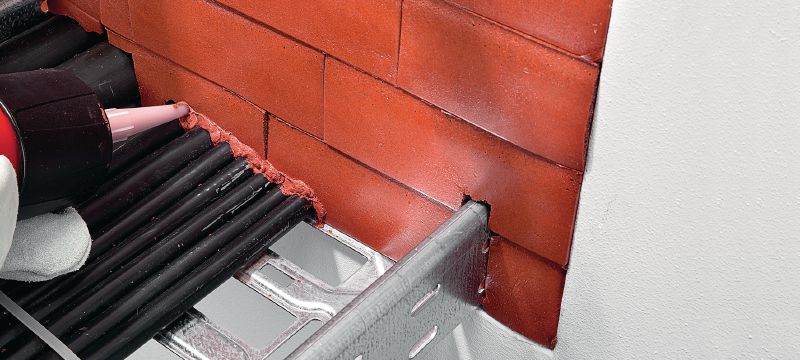

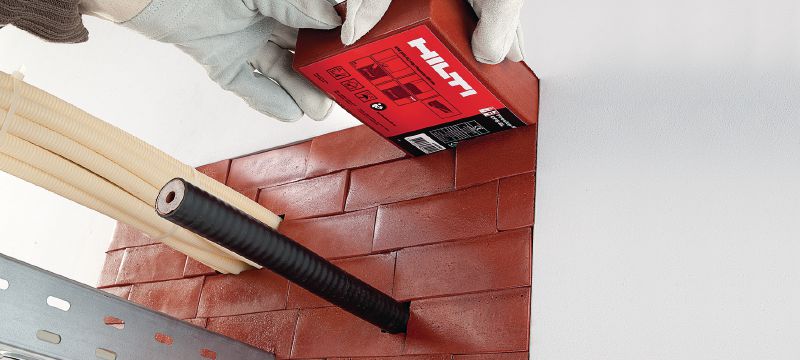

- Easy to install – no power tools required

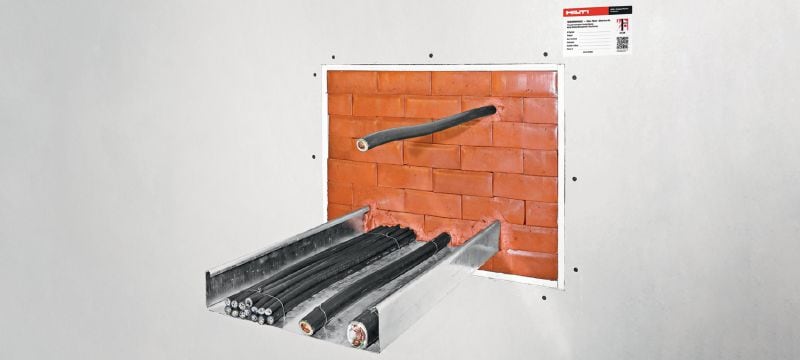

- Easy maintenance and possible retrofitting of cables
- Economical installation – firestop blocks arrive pre-cured and ready-to-use
- Fibre-, halogen- and solvent-free
- Virtually dust-free (depending on the installation method)
Applications

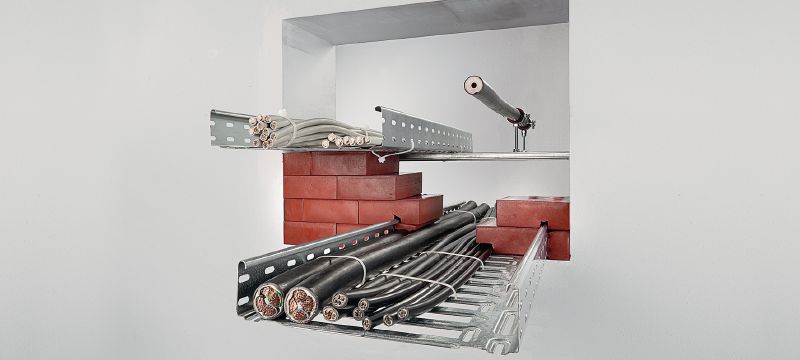

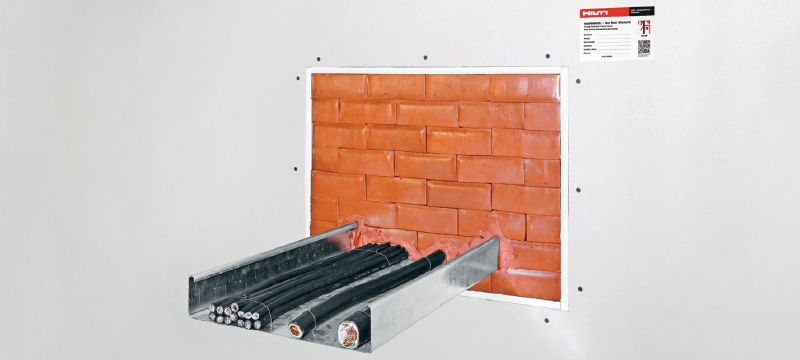

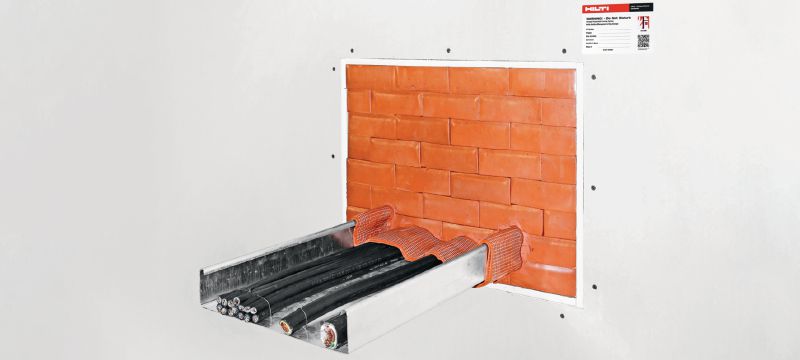

- Temporary or permanent passive fire sealing around cables, cable bundles and cable trays in wall and floor openings
- Firestopping penetrations for cables, cable bundles and cable trays
- Firestopping penetrations for conduits and conduit bundles
- Firestopping penetrations for co-axial cables
- Optimal for rooms with dust- and fibre-free requirements and areas with frequent retrofitting, such as server rooms, laboratories and hospitals
For approval or certificate information, please see individual items.
