CFS-C EL firestop endless collar

Firestop collar endless CFS-C EL #2075120

Configurator
Technical Data
Documents
Features & Applications
Related Products

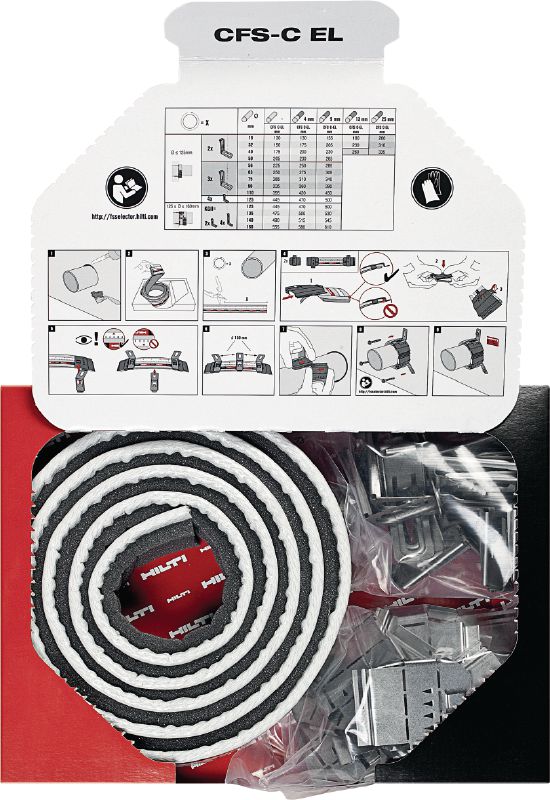

Firestop Collar Endless Box Opened

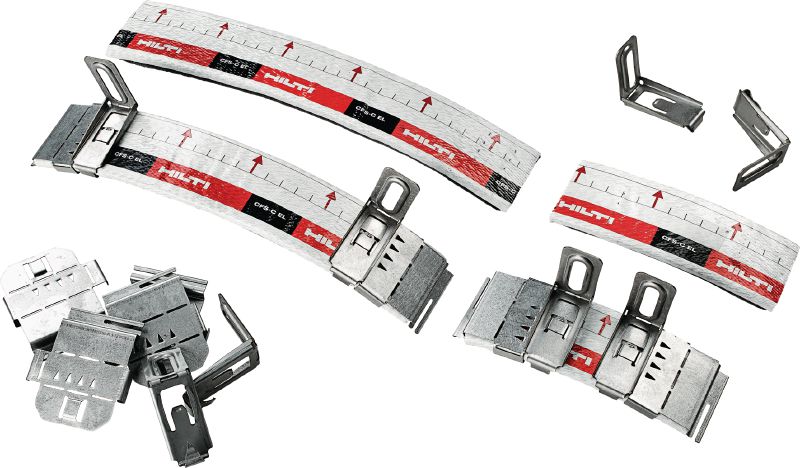

Firestop Collar Endless Oddments
Firestop Collar Endless Box Closed
Firestop Collar Endless KG1
Firestop Collar Endless Conlit
L068021.tiff
L068022.tiff
CFS-C EL
L068023.tiff
L068025.tiff
L068040.tiff
CFS-C EL

Solution to help create a fire and smoke barrier around pipes in non-standard configurations

  • Base materials: Drywall, Concrete (aerated), Concrete, Masonry, Shaftwall
  • Expansion ratio (unrestricted, up to): 1:19
  • Expansion temperature (approx.): 210 °C
ultimate

Choose options

Width
  • 52 mm
Length
  • 2580 mm
Pipe diameter - range
  • 16 - 160 mm
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
HKD 3,407.40
HKD 3,407.40 / 1 Piece

Technical Data

Base materials
Drywall, Concrete (aerated), Concrete, Masonry, Shaftwall
Expansion ratio (unrestricted, up to)
1:19
Expansion temperature (approx.)
210 °C
Length
2580 mm
Product class
Ultimate
Storage and transportation temperature range
-30 - 50 °C
Application
Other, Combustible pipes

Documents

Technical information
Brochure
Submittal
Sustainability Documentation
Operating Instruction
pdf Technical Manual CFS-C EL Firestop Endless Collar [ 3.3 MB ]

Features & Applications

Features

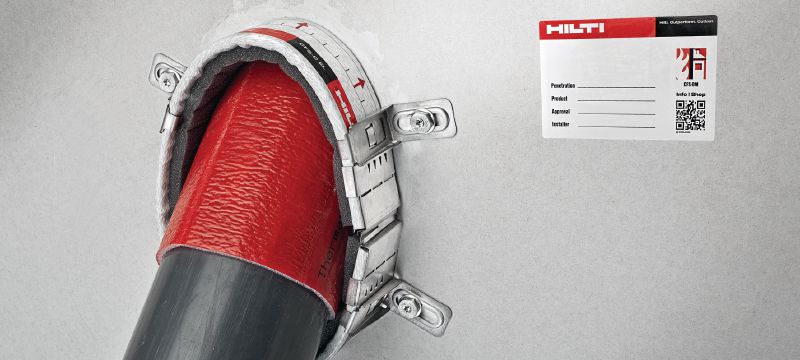

  • Problem-solver for non-standard pipe configurations – including pipe elbows, inclined pipes and pipes with limited clearance to the wall

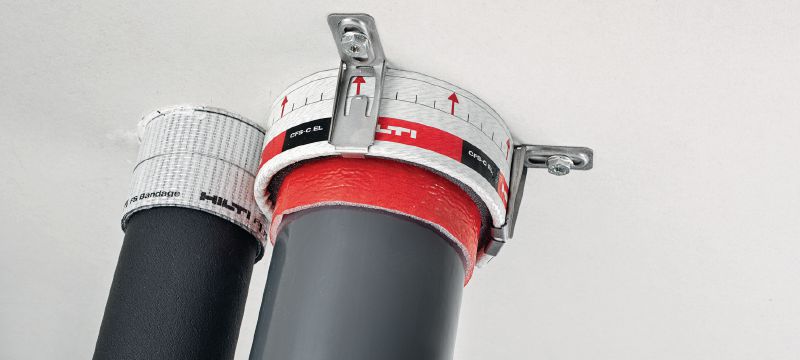

  • Space-saver – zero distance to CFS-C EL firestop endless collar, Conlit and CFS-B firestop bandage
  • Endless solution – one product for most penetrant sizes
  • Installed outside of the base material – can be visually inspected easily
  • Well-suited to complex pipe configurations

Applications

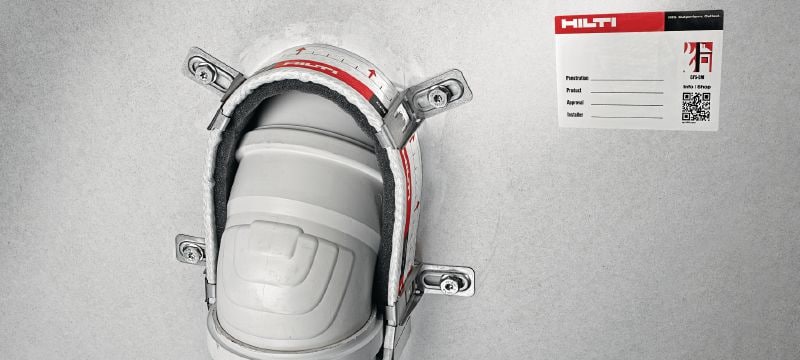

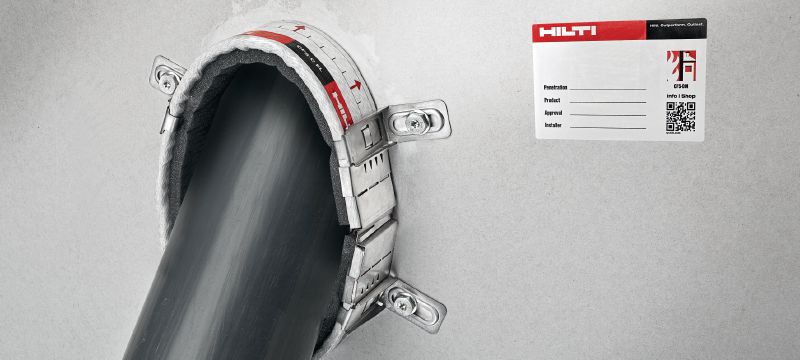

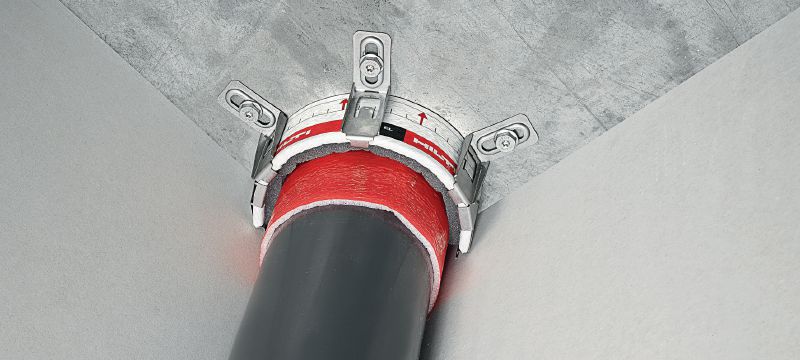

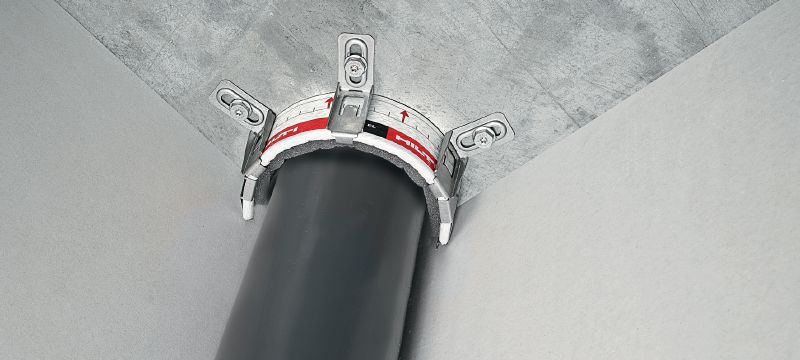

  • Configurations tested include pipe elbows, inclined pipes and pipes with limited clearance to the wall

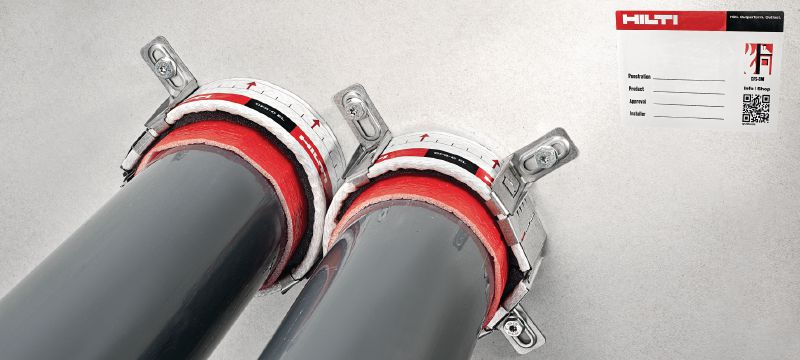

  • Zero distance required to CFS-B firestop bandage, CFS-C EL firestop endless collar and Conlit
  • Suitable for use on shaft walls, coated board, plasterboard, aerated concrete, masonry and concrete
  • Approved for use with PVC, PP, PE and a wide array of standard acoustic pipes.

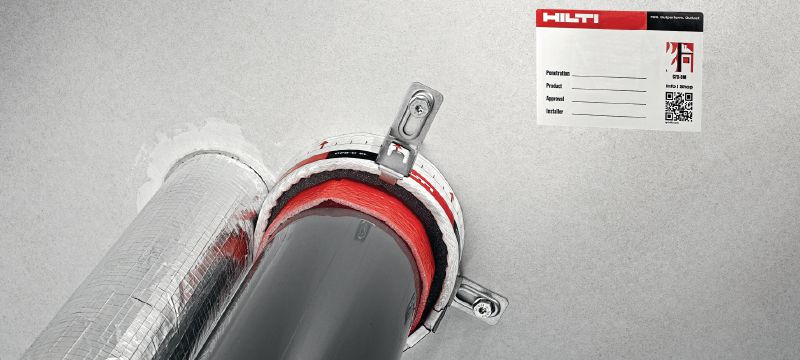

  • Acoustic pipes tested with insulation and sound decoupling
