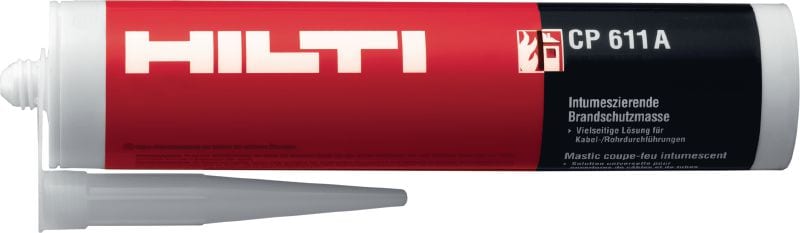

CP 611A Firestop intumescent sealant

#382841, Intumescent Sealant, Cartridge
CP 611A cables wo ID plate, CP611_IS_00382841_36139.tif

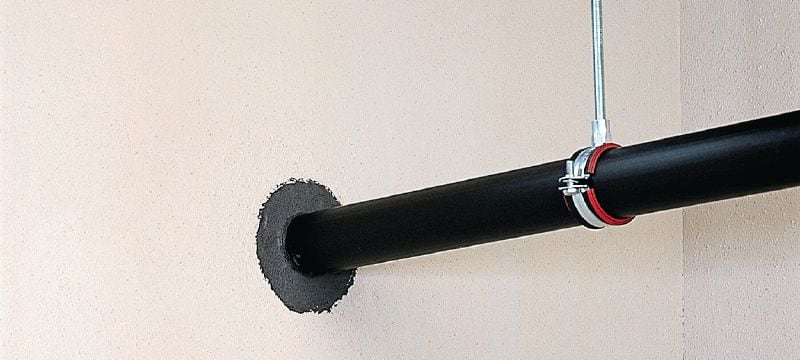

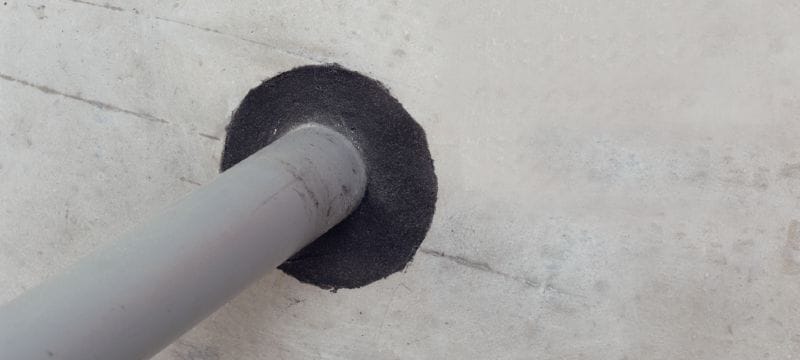

CP 611A Small pipe wo ID plate

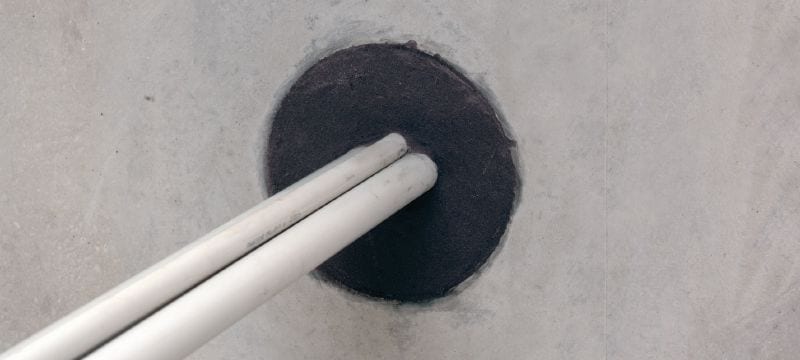

Cable penetration
11842.tif

Water-based and silicone-free intumescent sealant for firestopping of electrical penetrations

  • Base materials: Concrete, Brick, Masonry, Drywall
  • Application temperature range: 40 - 5 °C
  • Approx. curing time: 3 mm/3 days
ultimate

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
HKD 373.35
HKD 373.35
/
1 Piece

Technical Data

Base materials
Concrete, Brick, Masonry, Drywall
Application temperature range
40 - 5 °C
Approx. curing time
3 mm/3 days 1
Product class
Ultimate
  1. at 75°F/24°C, 50% relative humidity

Documents

pdf CP 611A General Submission Folder Hong Kong (Aug 2026), English [ 11.1 MB ]
pdf Macau CP 611A General Submission Folder (Mar 2026), English [ 8.2 MB ]

Features & Applications

Features

  • Designed to make installation quicker and easier
  • Tested for firestopping of single cables, cable bundles and conduits
  • Smoke-tight sealant
  • Can be applied to concrete, masonry or gypsum
  • Acoustically tested according to ISO 10140

Applications

  • Single cables and cable bundles
  • Plastic pipes up to 50 mm (2") diameter without additional collar
  • Metal pipes up to 160 mm (6") diameter
  • Irregular openings
  • Small openings

For approval or certificate information, please see individual items.
