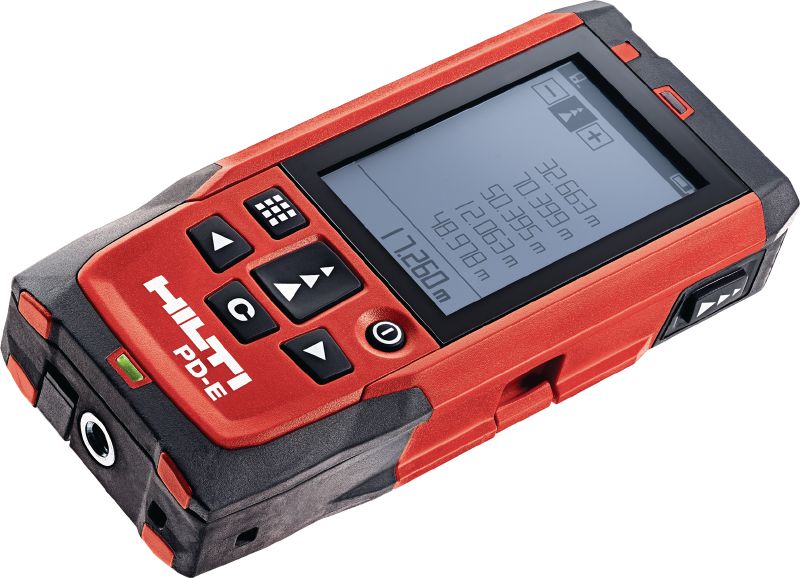

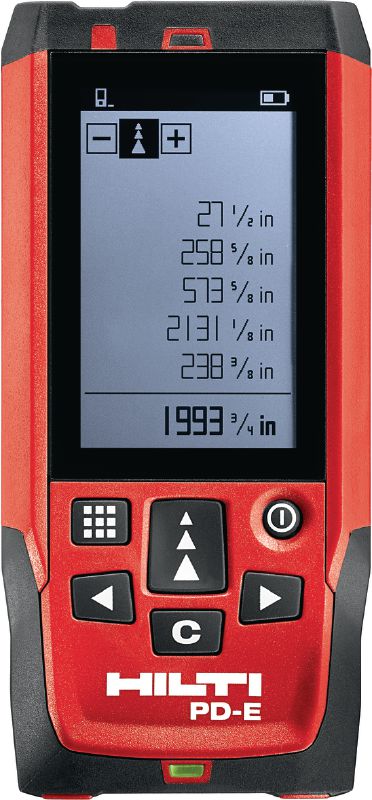

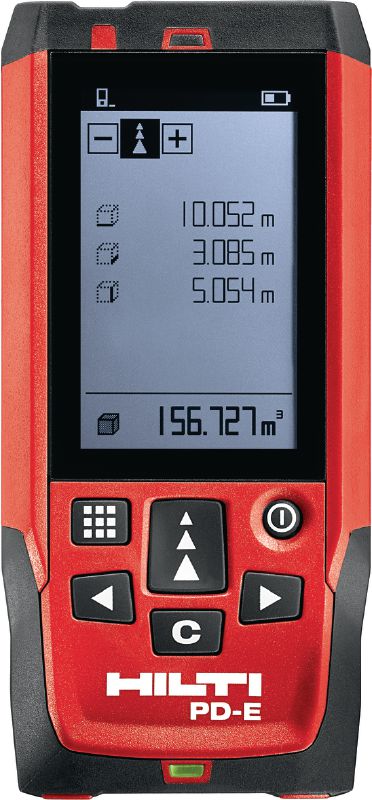

PD-E Laser meter
Outdoor laser meter with integrated viewfinder for measurements up to 200 m / 650 ft
- Measuring range: 0 m - 200 m
- Measurement accuracy: 1.0 mm
- Measuring functions: Single and continuous measurement, Outdoor mode, Digital level
Technical Data
Measuring range
0 m - 200 m
Measurement accuracy
1.0 mm
Measuring functions
Single and continuous measurement, Outdoor mode, Digital level
Calculation functions
Addition, Subtraction, Area, Volume, Painters area, Setting out, Min/max, Timer, Offset, Memory (30x), Trapezoid (2x), Pythagoras (3x), Indirect measurement (4x)
Data memory
Last 30 measurements, Calculation results with graphics
Battery type
2 x 1.5 V (AAA)
Laser class
<1 mW, 635 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
IP protection class
IP 65 (EN 60529)
Interface
none
Documents
Features & Applications
Features
- High-quality laser module enables long-range measurements even under the toughest outdoor conditions
- Purpose-built outdoor display can be read even in very bright sunlight

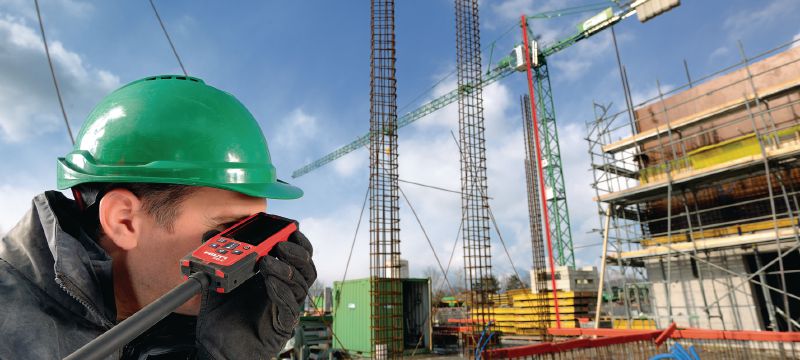

- Built-in optical viewfinder for outdoor measurements
- Rugged and durable to resist hard jobsite environments
- Built-in 360 degree tilt sensor and smart estimation functions support measurements in challenging situations
Applications

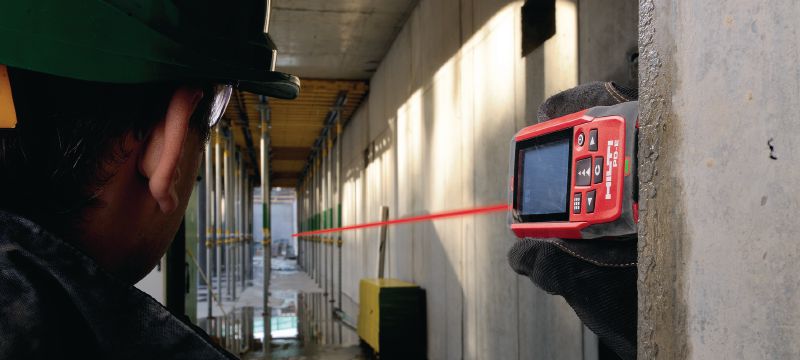

- Measuring quickly and safely in places where access is difficult
- Measuring surface areas for quotations in renovation work
- Determining the length or height of objects that cannot be directly accessed (remote measurement)

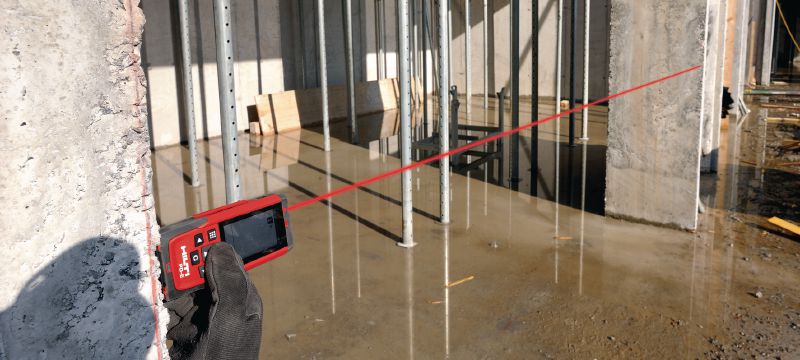

- Measuring long distances using outdoor mode
- Easy measurement of roof lengths using the trapezoid function
For approval or certificate information, please see individual items.
