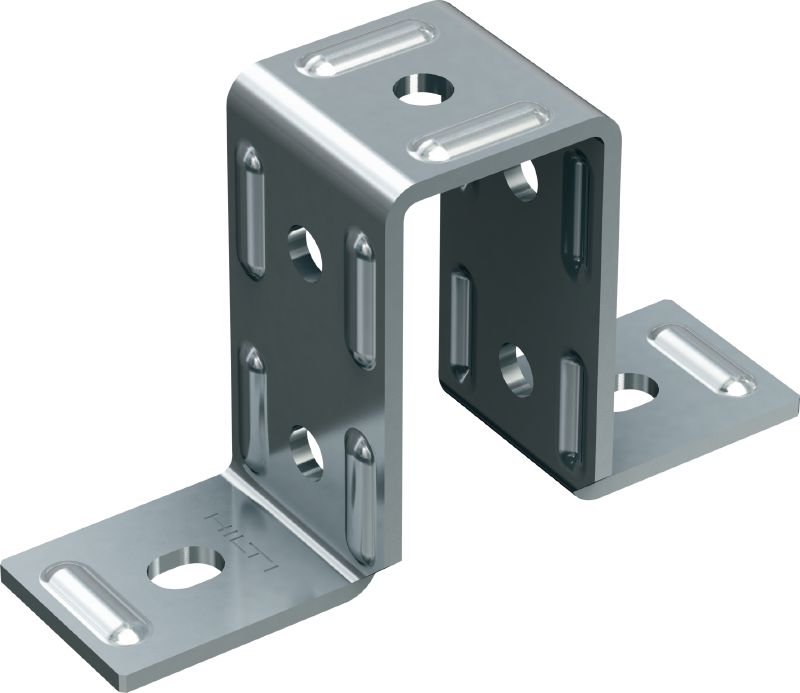

MT-CC-40D U-Fitting
Clamp MT-CC-40D #2322398
Clamp for channel-to-channel or channel-to-girder cross-connections with MT strut channel
- Material composition: Q235 or better steel
- Surface finish: Indoor Coated - Electro galvanised
- Material thickness: 4 mm
Choose options
Pack size
- 10 pc
Quantity
Packs
Total Pieces
10
Discounted net
HKD 931.00
HKD 93.10 / 1 Piece
Technical Data
Material composition
Q235 or better steel
Surface finish
Indoor Coated - Electro galvanised
Material thickness
4 mm
Weight
0.46 kg
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]
Features & Applications
Features
- Compatible with MT Twist-Lock and MT Thread Forming Bolt channel connectors – for much faster, adaptable assembly
- Universal – complete many different applications using few parts
- Twist-lock and Thread Forming Bolt channel connector takes up shear and tensile loads
- Compatible with multiple strut channel/girder profiles
Applications
- Cross-connection of one strut channel to another channel or girder
- Suitable for use in dry, indoor environments
