MT-S-L FL Pre-assembled seismic angle bracket

Angle connector MT-S-L FL seismic #2399664

Configurator
Technical Data
Documents
Features & Applications
Related Products
L150760 (3506013)
LCG004010_v1_cropped (3640805)
11_IS_MT-S-L FL_0001 (3658303)

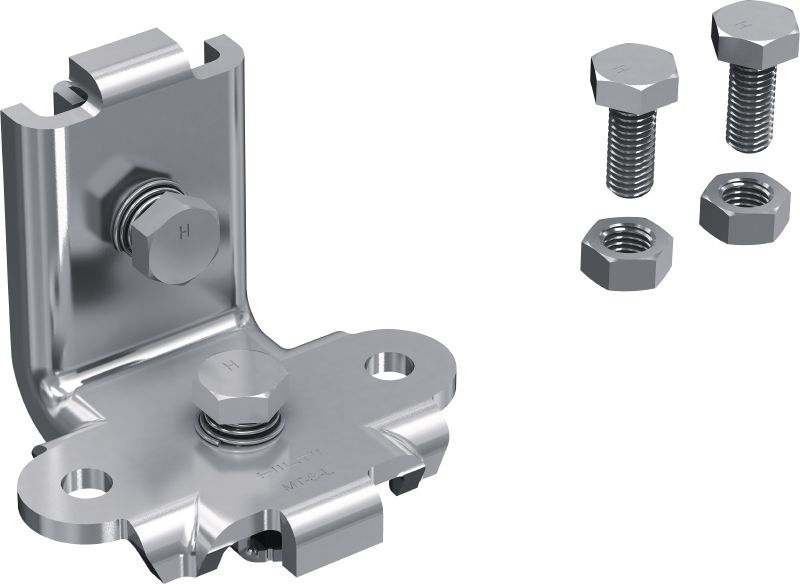

Angle bracket with pre-assembled Fast-Lock nut and bolt for assembling braced MT strut channel structures in seismic zones

  • Material composition: Q235B, Bolt: grade 8.8, Nut: grade 8
  • Material and coating: Carbon steel - indoor coated
  • Material thickness: 5 mm

Choose options

Pack size
  • 14 pc
 Product options
Quantity
Packs
Total Pieces
14
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Details
Technical illustrations
Material composition
Q235B, Bolt: grade 8.8, Nut: grade 8
Material and coating
Carbon steel - indoor coated
Material thickness
5 mm
Surface finish
Indoor Coated - Electro galvanised
Thread connection - M
M10
Tightening torque
30 Nm
Weight
0.65 kg

Documents

Certificate
Brochure
Operating Instruction
pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Features & Applications

Features

  • Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
  • Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling and storage
  • Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
  • Winged angle connector – includes connection points to MT-S-H1
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Right-angle connections between MT-40 strut channels with connection to seismic bracing
  • Assembling metal framing for MEP support structures in seismic zones
  • Suitable for use in dry, indoor environments
