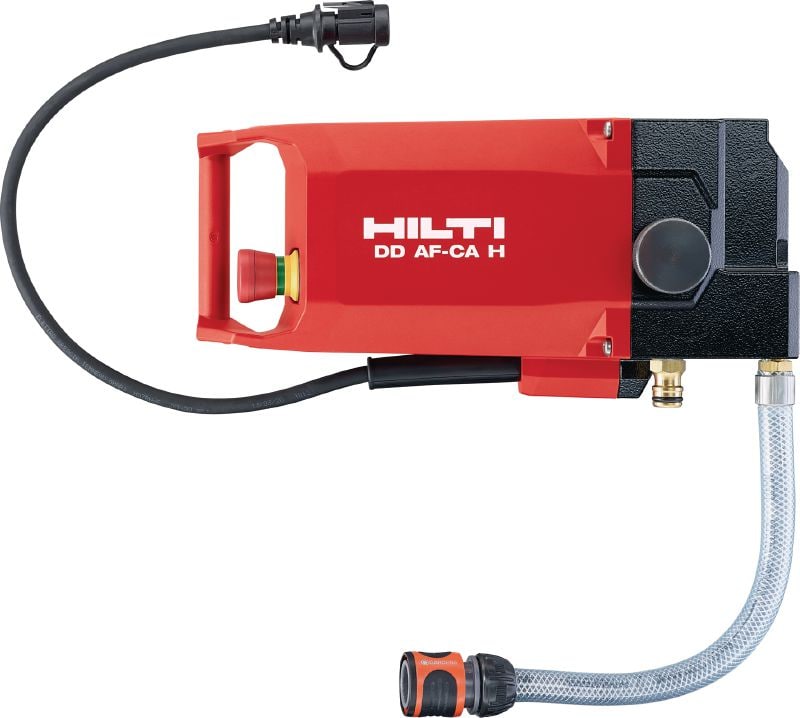

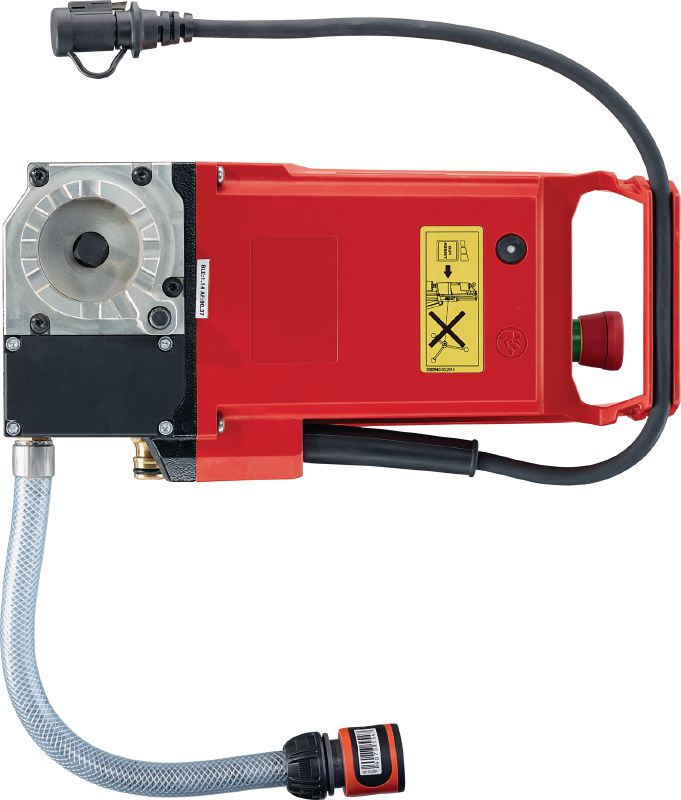

DD AF-CA L Cut Assist autofeed unit for core drills
Autofeed unit DD AF-CA H 230V #2240487
Cut Assist autofeed unit to assist the drilling process with rig-based diamond coring systems – for use with the DD 250-CA
- For use with: DD 250-CA
- Weight: 4.2 kg
- Dimensions (LxWxH): 176 x 137 x 325 mm
Technical Data
For use with
DD 250-CA
Weight
4.2 kg
Dimensions (LxWxH)
176 x 137 x 325 mm
IP protection class
IP 55 (EN 60529)
Rated input voltage
230 V
Rated input power
100 W
Documents
Features & Applications
Features
- Unmatched productivity and convenience – autofeed units enable assisted core drilling
- Greater operator safety, higher working comfort and less fatigue when core drilling in difficult conditions
- Intelligent features include automatic surface detection, tracking of drilling depth, water management, hole starting and through-hole detection
- Applies optimum power during the drilling process, helping to prolong equipment lifespan while reducing your drilling time per hole
- Bluetooth® data transfer between drill motor and autofeed unit – convenient, graphical controls via the core drill’s display
Applications
- Upgrading DD 250-CA core drills for near-autonomous operation
- Large diameters
- Deep holes
