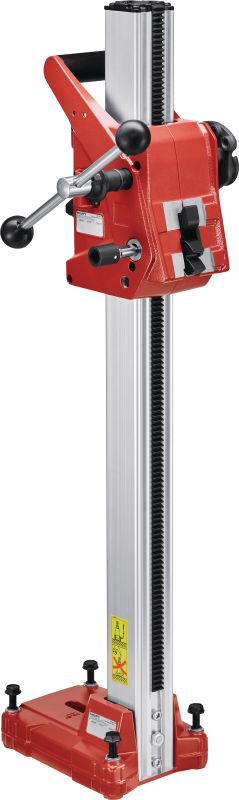

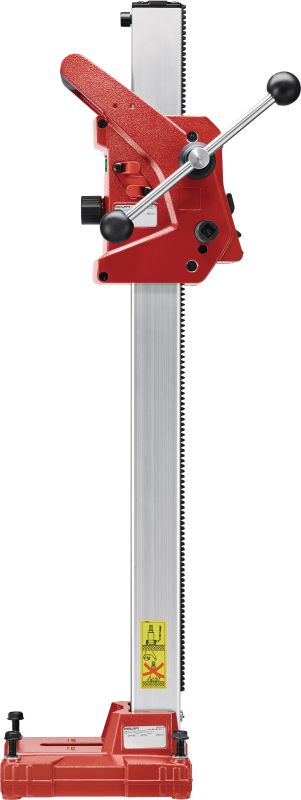

DD-ST 22 110/150/160 SFL Core drill stand
Drilling stand DD-ST 22 110/150/160 SFL #2347690
Compact and lightweight core drill mean Hilti DD 110/150/160 cordless coring machines
- Fixation mode: Anchor, vacuum with add-on vacuum pad
- Angular coring: No
- Column extension: Yes
Technical Data
Fixation mode
Anchor, vacuum with add-on vacuum pad
Angular coring
No
Column extension
Yes
Weight
11.8 kg
Base plate dimensions (LxW)
229 x 165 mm
Drill stand height
946 mm
Features & Applications
Features
- Compact and lightweight – designed for portability and easier setup
- Comprehensive range of accessories available – such as vacuum pads, jack screws, fastening kits and water collector systems
- Easy setup – tool-free quick-connection of drive unit
Applications
- Drilling range up to 162 mm diameter without spacers
- Drilling range up to 6-3/8" diameter without spacers
- Can be fastened by anchor, using the optional vacuum pad or with the jack screw
- Compatible with the DD 150-U-22, DD 110-U-22 and the DD 160-22 cordless core drill
Related Products
Keep jobsites clean by collecting slurry from diamond drilling at the source. For use with a drill stand – compatible with the WMS 100 water management system
