Nuron

SID 4R-22 Right-angle impact driver

Cordl. RA impact driver SID 4R-22 case #2363673

Configurator
Technical Data
Documents
Features & Applications
Related Products
L600005 (3006905)
L148335_cropped (3065368)
L148325_cropped (3065374)
L131807_cropped (3101743)
L131803_cropped (3101726)

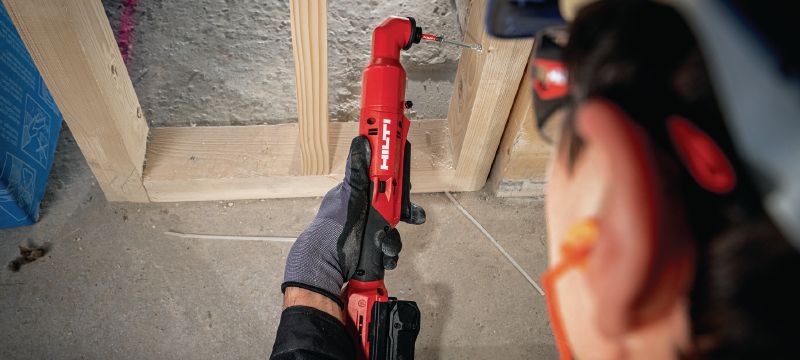

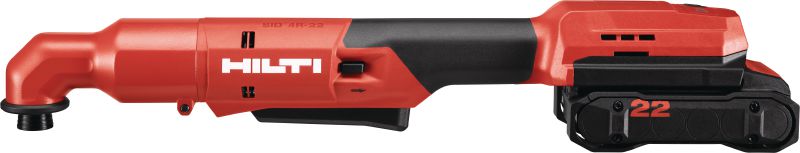

Compact, cordless right-angled impact driver for reaching tough to access applications

  • Feature: LED light
  • Chuck type: 1/4" hexagonal click-in
  • No load RPM: gear 1: 1600 rpm; gear 2: 2250 rpm

Customize your kit

Tool Body
Tool body with case
How many kits do you want to order?
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
HKD 2,756.30

Technical Data

Feature
LED light
Chuck type
1/4" hexagonal click-in
No load RPM
gear 1: 1600 rpm; gear 2: 2250 rpm
Maximum torque
31 Nm (1); 98 Nm (2) 1
Full hammering frequency
3800 impacts/minute
Number of gears
2
Dimensions (LxWxH)
438 x 69 x 78 mm
Tool body weight
1.2 kg
A-weighted emission sound pressure level
97 dB (A) 2
Tri. vibr. val. for impact tightening of fasteners at max. cap. of tool (ah)
17.4 m/s²
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SID 4R-22 (01) (ARCNDAENETFIJAKKKOLTLVNORUSVTRUKZH), Arabic, cn, Danish, English, Estonian, Finnish, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Russian, Swedish, Turkish, Ukrainian, Chinese [ 3 MB ]

Features & Applications

Features

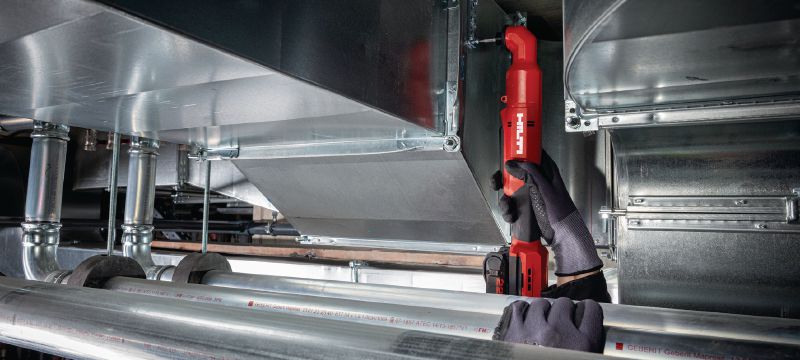

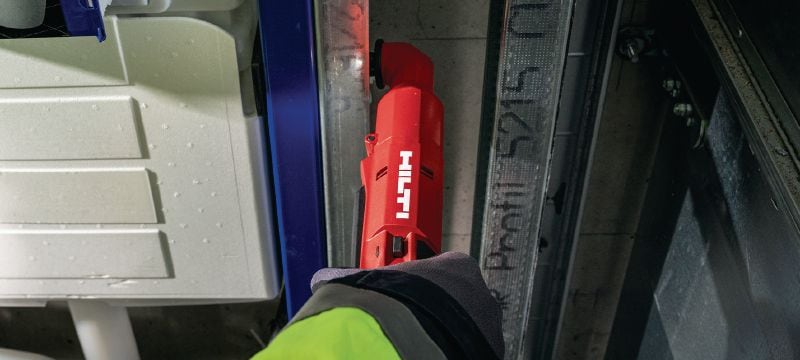

  • Access to hard to reach spaces where other tools won't fit
  • Reach even further into confined spaces with the longer grip and in-line battery interface
  • Quick change ¼" hex chuck allows for the easy input of bits
  • Built to last thanks to the more efficient brushless motor, more powerful motor cooling and sealed electronics
  • Strong LED light provides more powerful illumination of the work area

Applications

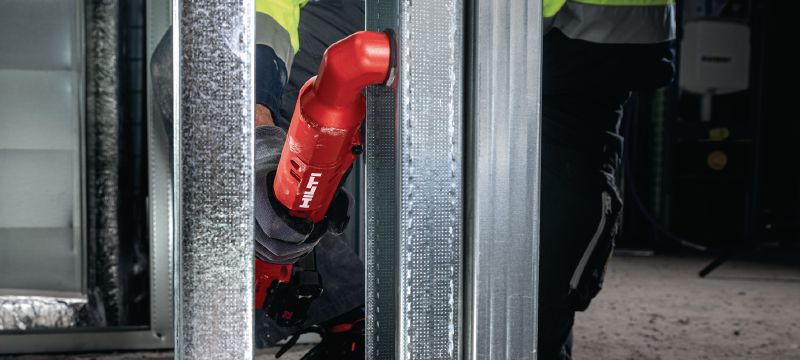

  • self-drilling screws – optimised for drilling through metal, then driving threads to completion
  • Wood screws – agile cordless impact driver for attaching wood to your project
  • Masonry screws – two gears so torque can be reduced for masonry screws
  • Drilling in wood with spade bits such as WDB-S
