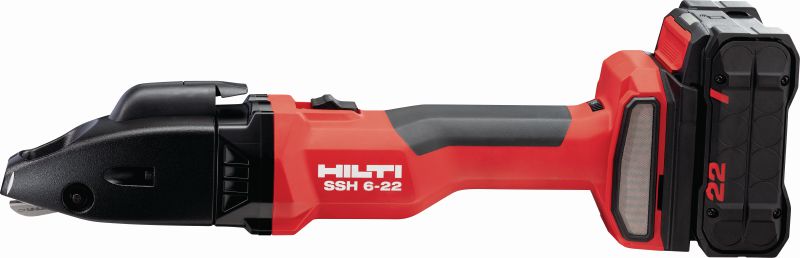

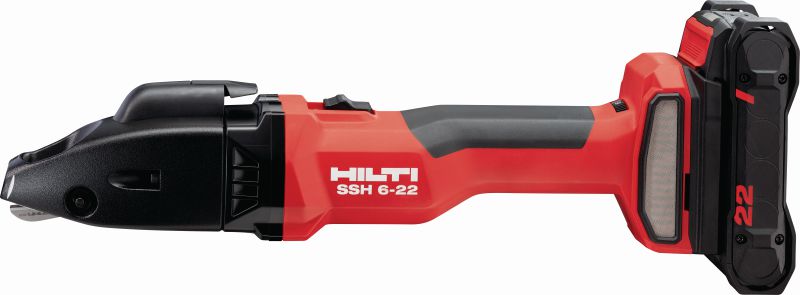

SSH 6-22 cordless metal shears
New productItem #r13250336

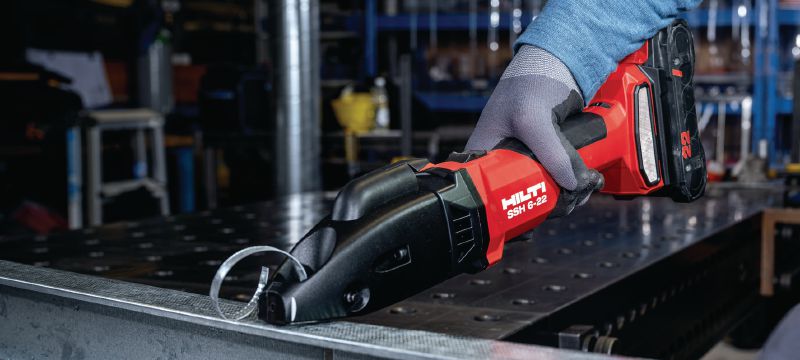

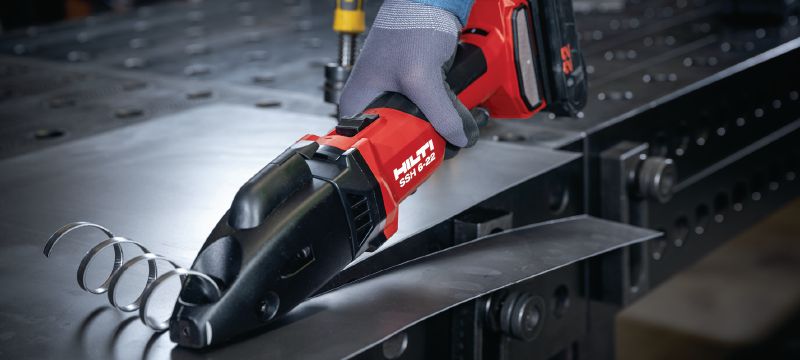

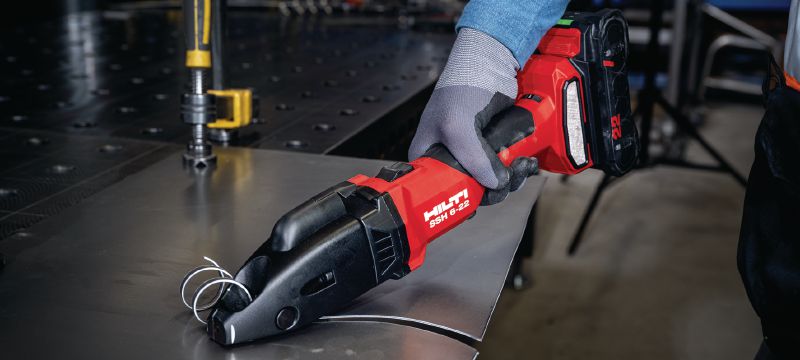

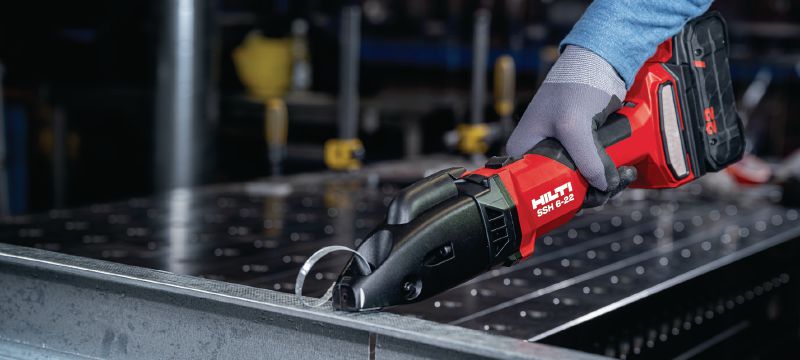

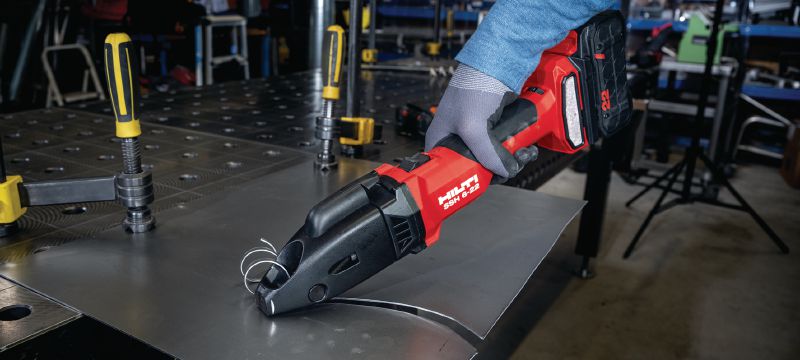

Cordless double cut shear for fast cuts in sheet metal and profiles up to 2.5 mm│12 Gauge – with Hilti SSH CS blades included (Nuron battery platform)
- Material type: Flat sheet, C.L.U. profile
- Rated voltage: 21.6 V
- Tool body weight: 2.2 kg
Share
Features
- Ultimate versatility – high cutting capacity, five different blade types and adjustable speed make this cordless shears perfect for virtually all everyday metal cutting
- Agile handling – slim, ergonomic grip, balanced body and lock-on switch offer more precision and comfort when cutting metal for extended periods

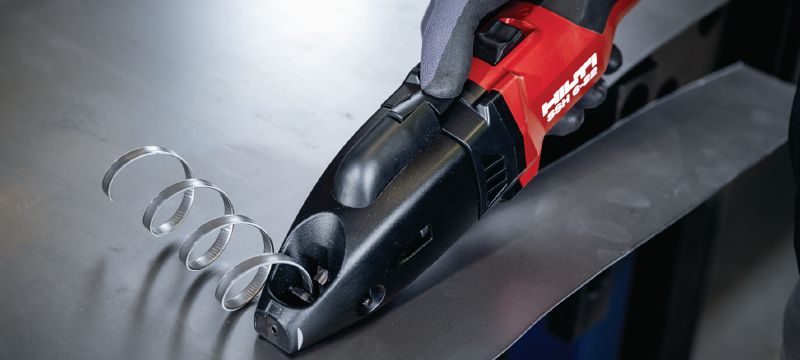

- Integrated chip clipper – easily stop the cut anywhere and clear the chip with one hand
- Faster blade changes – no spanner required to exchange cutters
- On the Nuron battery platform – cordless metalworking tools without compromise thanks to longer-lasting batteries, a powerful brushless motor and a range of services to keep you productive, today and tomorrow
Applications
- Cutting mild or galvanised steel sheet and profiles up to 2.5 mm thick – Hilti SSH CS blades recommended (multiple versions available)
- Cutting stainless steel sheet and profiles up to 1.5 mm thick – Hilti SSH CX blades recommended
- Cutting HVAC spiral and ventilation duct up to 4x 0.9 mm – Hilti SSH CD blades recommended
- Cutting tighter radius curves or circles in sheet metal up to 1.5 mm thick – Hilti SSH CC blades recommended
- Metal fabrication, building envelope, interior finishing or MEP installation tasks requiring quick and distortion-free cuts
Technical Data
Documents
-
- Operating Instruction SSH 6-22 (02), Italian, Serbian, German, Turkish, Russia, Swedish, Ukrainian, Arabic, French, Portuguese, Spanish, Norwegian, Finish, Polish, Lithuanian, Latvian, Romanian, Bulgarian, Korean, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 4.2 MB ]
