Question about cantilever of anchor plate

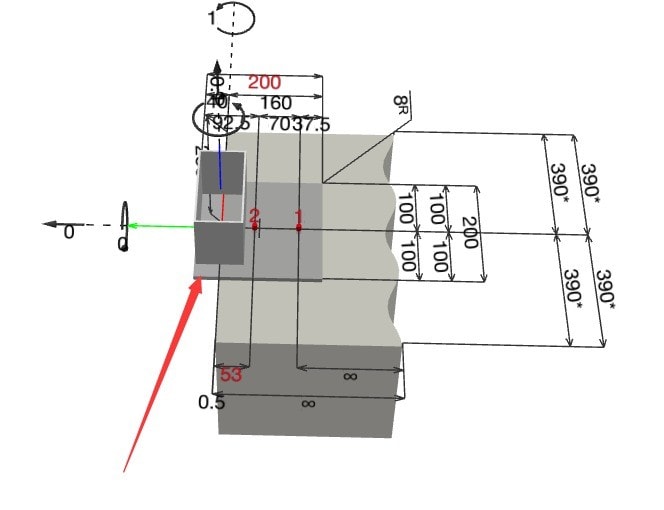

Hi , we have a design of anchor plate on cantilever case . However , the system said it is not okay. Please advise.
1 Reply
Posted by Danielover 3 years ago
Dear Yeti,
Thank you for your enquiry.
From the capture, the edge distance does not meet the requirement of HST3 M10. Please adjust the anchor position especially for anchor no.2.
Please feel free to contact us if there is any problem.
Regards,
Daniel
2 comments on this reply
Posted by Danielover 3 years ago
Hi Yeti, may I have your original file for further checking? You may send it to TeamEngineering.HK@hilti.com
Posted by Yeti Yeungover 3 years ago

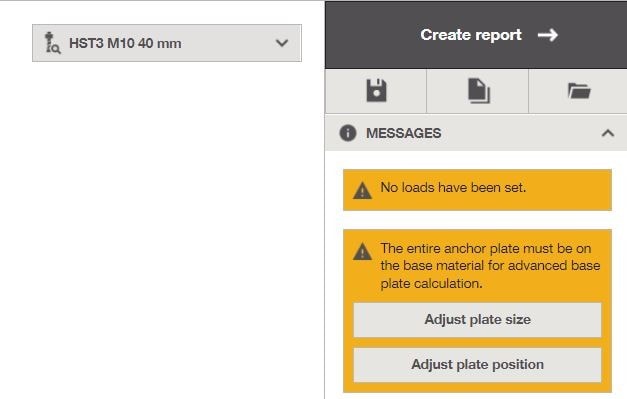

Hi Daniel , the description from the system is " The entire anchor plate must be on the base material for advanced base plate calculation." It is not workable even i relocate the anchor.
