TE-YD (SDS Max) Imperial hollow drill bit
Ultimate SDS Max (TE-Y) hollow hammer drill bit for virtually dust-free drilling in concrete
- Connection end: TE-Y (SDS-max)
- Base material: Reinforced concrete, Concrete
- Head shape: Multi cutter
ultimate
Choose options
Diameter
- 38.1 mm
- 44.45 mm
Working length
- 1000 mm
Length
- 1190 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
Connection end
TE-Y (SDS-max)
Base material
Reinforced concrete, Concrete
Head shape
Multi cutter
Head material composition
Tungsten carbide
Need vacuum cleaner
Yes
Product class
Ultimate
Documents
Features & Applications
Features
- Drilling and hole cleaning in one step
- Optimum hole cleaning for consistent anchor setting
- Robustness, lifetime and drilling speed equal to TE-YX drill bits
- Minimised snagging or sticking when drilling into rebar
Applications

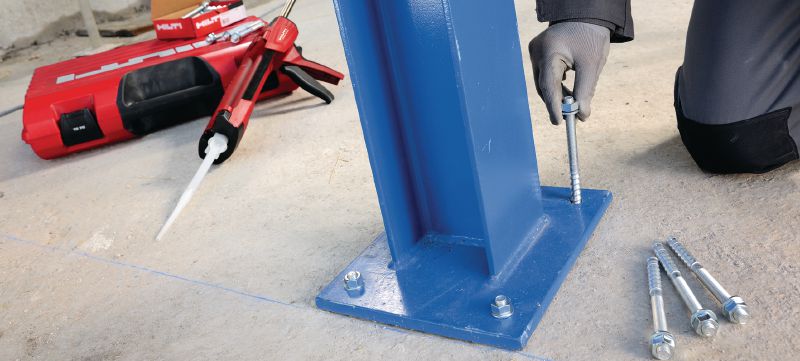

- Drilling holes for anchoring structural steel connections (e.g. steel columns, beams)
- Drilling holes for structural connections with post-installed rebar
- Drilling holes for anchoring secondary steel structures (e.g. staircases, steel ledgers)
- Drilling holes for structural renovation or upgrading with post-installed rebar
- Drilling holes for substitution of misplaced or missing rebars
For approval or certificate information, please see individual items.
