Ultimate-class 22V high-torque impact wrench with 3/4" through hole anvil for bolting and anchoring

  • Anvil type: 3/4" through hole
  • Maximum torque: 800 Nm (1)
  • Nut-busting torque: 875 Nm

Technical Data

Anvil type
3/4" through hole
Maximum torque
800 Nm (1) 1
Nut-busting torque
875 Nm
Full hammering frequency
2200 impacts/minute
Number of gears
1
Dimensions (LxWxH)
250 x 92 x 267 mm
Tool body weight
2.86 kg
A-weighted emission sound pressure level
98.5 dB (A) 2
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

  • Robust metal gearbox housing for demanding jobsite conditions
  • High-strength steel 3/4" square anvil drive with thru-hole retention for long lifetime
  • Durable and user-friendly E-spring lets you fit impact sockets in one step
  • Low vibration values due to double-hammer gearbox allow long periods of productive work
  • Centred balance point for precise handling in all working directions

Applications

  • Tightening and releasing M16 to M24 nuts and bolts
  • Tightening and releasing 5/8" to 1" nuts and bolts
  • Assembling steel profiles, formwork, timber or precast concrete components
  • Pre-tightening bolts on the flanges of large-diameter pipes
  • Pre-tightening nuts and bolts up to 1-1/4"

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped at max. 40% of the price of an equivalent new tool
  • 3-month no-cost period after each repair
More information about Tool Services

Product Videos

Consulting & Support

Information: We will contact you about the product demo request within 1 business day(request before 6:00pm).

Information: Only available during business hours from Mon - Fri: 08:30 - 17:00

Information: Only available during business hours from Mon - Fri: 08:30 - 17:00

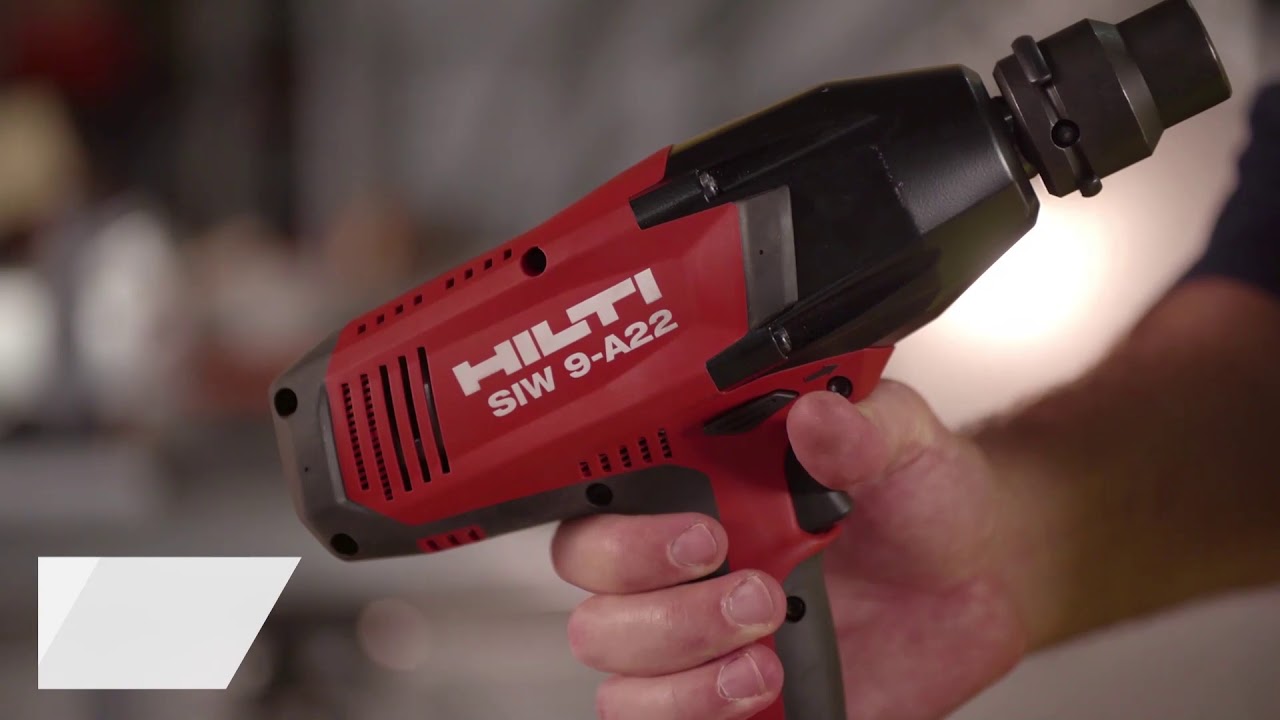

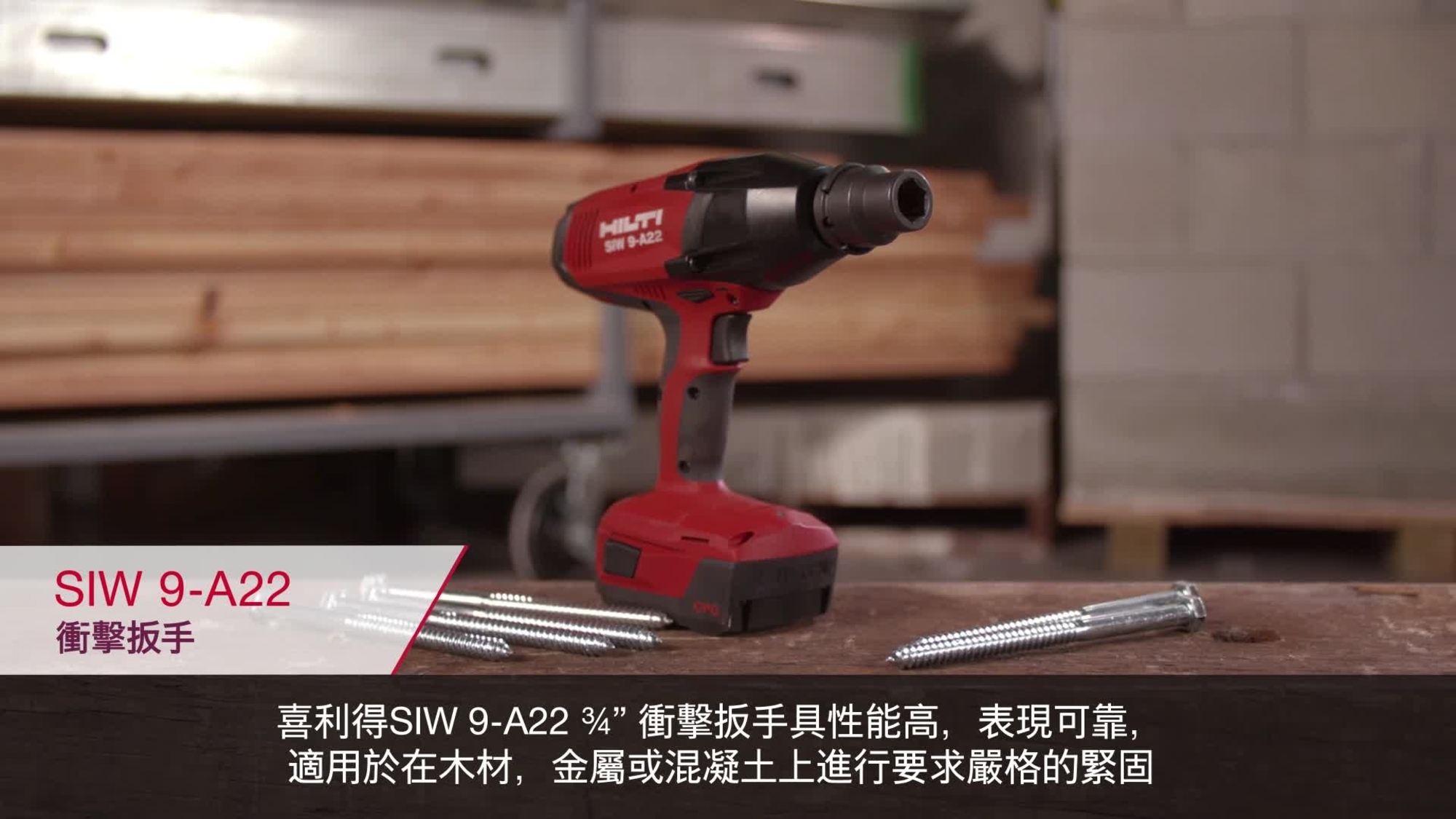

Introducing the SIW 9-A22

High torque cordless impact wrench

The SIW 9-A22 ¾” high torque impact wrench gives you corded performance with cordless flexibility

With a robust metal gearbox housing and a 3/4" high-strength steel through hole anvil, the SIW 9-A22 gets your heavy duty applications done.

Developed to meet the demands of the jobsite


Metal

Concrete

Concrete

Wood

Wood

SF 6H-A22 is fast and versatile

High Torque for bolting applications in structural steel

With a rated torque of 800Nm, the SIW 9-A22 can be used for structural bolting applications tightening bolts up to M24 in size. The gearbox housing and high-strength ¾” anvil make the tool robust enough for jobsite conditions.

Cropped applicaton image

Designed to increase accessibility and control

The slim diameter and integrated LED lights of the SIW 9-A22 make it easier to work in small spaces, while the handle and trigger have been developed to improve control for applications such as tightening pipe flange bolts.

Cropped applicaton image

New double hammer mechanism reduces vibrations

For setting larger diameter screw anchors such as the Hilti HUS3-H14 and Hilti HUS3-H10 we developed the double hammer mechanism that reduces vibrations, helping to increase safety in serial applications when working in concrete.

SF 6H-A22 B22 2.6ah Holesaw

Features that help increase safety and productivity

Helping ensure operator and jobsite safety, the SIW 9-A22 uses an E-Spring that connects in a through-hole in the anvil to keep sockets in place, an additional retaining strap can be used to protect if the tool is accidentally dropped.

HIGH TORQUE CORDLESS IMPACT WRENCH

Please enter Alternative Text here (optional)

Hilti impact-ready sockets are designed for demanding applications

Hilti-long-impact-sockets

Hilti ¾” long impact sockets SI-S ¾” - L

¾” long sockets designed for impact wrenches are the universal solution, that gives you enough space within the sockets to drive it on your anchoring and bolting applications.

E-Spring (for 3/4" impact socket)

Hilti E-Springs

Only a through hole fixation ensures big sockets to stay on the anvil, not being a hazard for other workers on the jobsite. With the new Hilti E-Spring, through-hole socket fixation can be done in one step, ensuring no downsides in productivity.

HUS3-V Checking 1

HUS checking gauge

Lets you quickly check the wear of a HUS screw anchor and indicates whether the screw anchor can be reused. Can be fitted to the SIW 6AT-A22, SIW 22T-A and SIW 9-A-22 cordless impact wrenches
