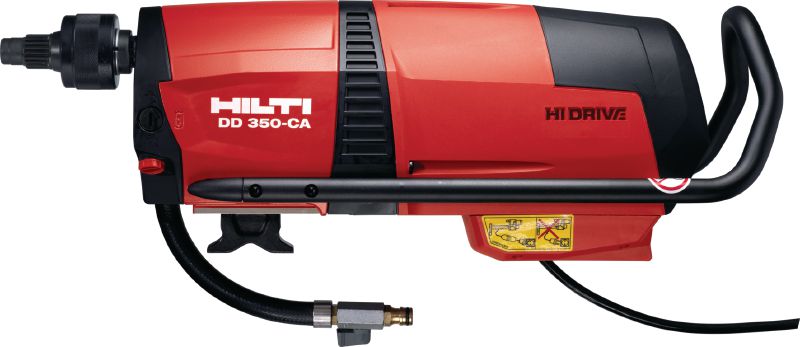

DD 350-CA Core drill

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
L073448 (157237)
DD 350-CA, DD AF-CA, DD-HD 30 (68950)
DD 350-CA, DD AF-CA, DD-HD 30 (68949)
19650.tif
43620.tif
DD 350-CA, DD AF-CA (72115)
DD 350-CA, DD-HD 30 (72118)

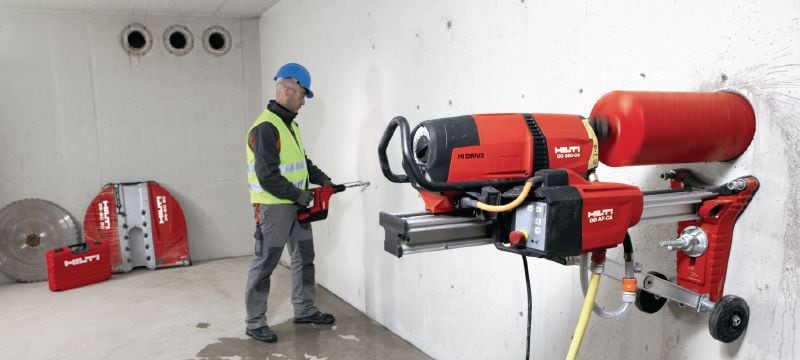

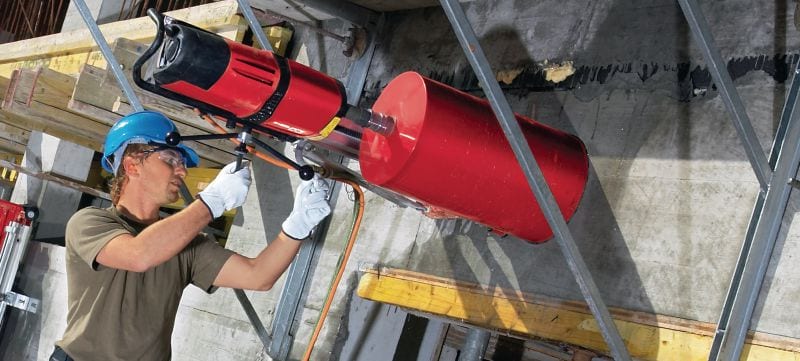

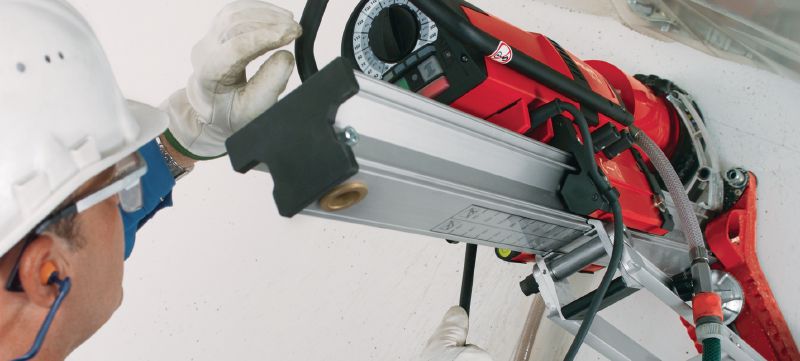

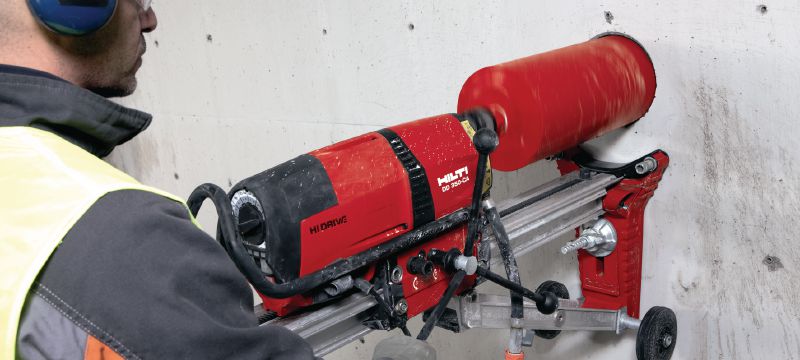

Heavy-duty diamond coring machine with high-frequency motor and optional auto-feed unit for rig-based coring from 52-500 mm (2-1/16 - 19-11/16”) in diameter

  • Diameter range: 52 - 500 mm
  • Base material: Concrete, Reinforced concrete

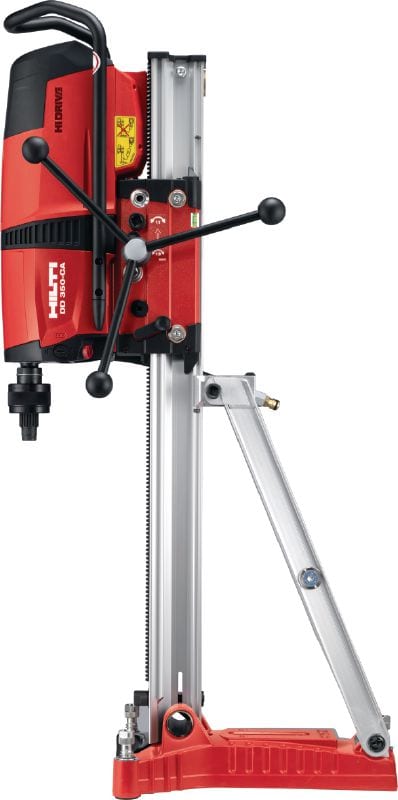

  • Operation mode: Rig-based drilling system

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From HKD 35,734.38

Technical Data

Diameter range
52 - 500 mm
Base material
Concrete, Reinforced concrete
Operation mode
Rig-based drilling system
Number of gears
10
No load RPM
gear 4: 619 rpm; gear 5: 571 rpm; gear 6: 524 rpm; gear 7: 405 rpm; gear 8: 357 rpm; gear 9: 286 rpm
Weight according to EPTA-Procedure 01/2003 without battery
14.4 kg
Weight of complete system
35 kg
Dimensions (LxWxH)
608 x 192 x 216 mm
A-weighted emission sound pressure level
95 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
2.5 m/s²
  1. According to the applicable product standard (see Operating Instruction for more details)

Documents

Operating Instruction
Instruction for use
pdf Operating Instruction DD 350-CA (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese [ 15.9 MB ]
pdf Operating Instruction China RoHS II, cn, English, Chinese [ 13.9 KB ]

Features & Applications

Features

  • Powerful high-frequency motor with electronic speed control for optimum power delivery over the entire diameter range

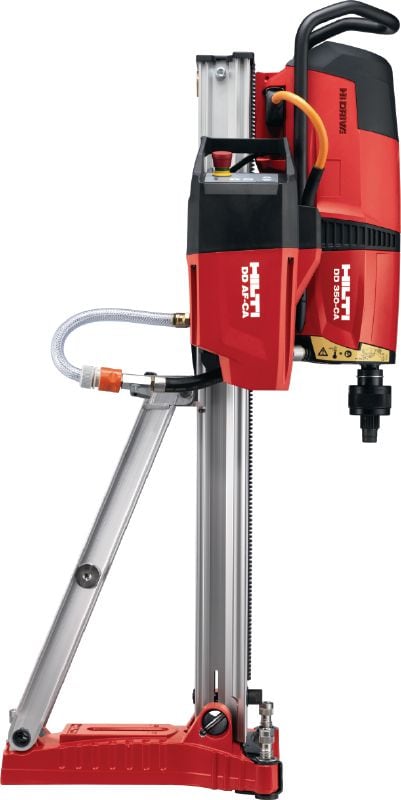

  • Compatible with the DD AF-CA automatic feed unit that makes drilling a highly efficient and fully automated process
  • Iron Boost: for a quick performance boost with increased torque when drilling through rebar
  • Thanks to IP 55 water spray protection, drilling can be carried out under adverse conditions
  • Operation within the optimum power band, for peak performance and longer core bit life, is easy with the aid of the LED power indicators

Applications

  • Drilling through-holes and penetrations
  • Blind holes for setting anchors or post-installed rebar
  • Corner holes for sawing
  • Manhole openings
  • Stitch coring for installing cable trays

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped at max. 40% of the price of an equivalent new tool
  • 3-month no-cost period after each repair
