DD 30-W Core drill

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
DD 30-W (86948)
DD 30-W (86955)
L098855_cropped (179860)
L098769_cropped (179861)
L094451_cropped (181091)

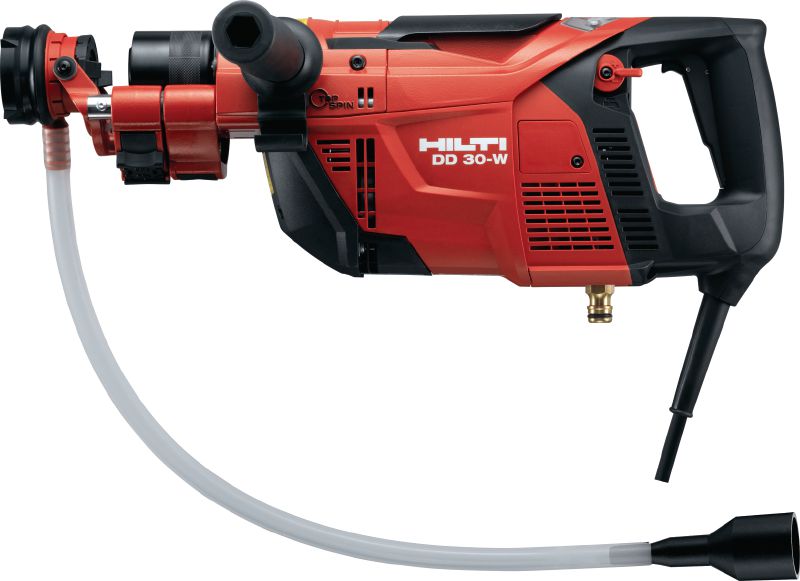

Compact, light diamond coring machine for wet, handheld coring of heavy-duty anchor and rebar holes from 8-35 mm (5/16 - 1-3/8") in diameter

  • Diameter range: 8 - 35 mm
  • Base material: Concrete, Masonry

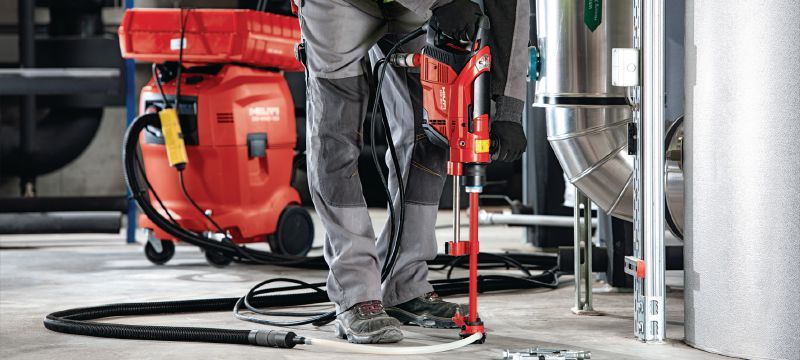

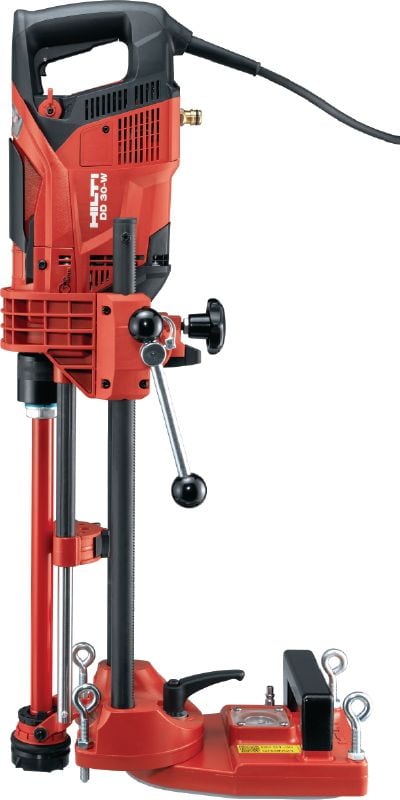

  • Operation mode: Hand-held and rig-mounted drilling system

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From HKD 25,394.43

Technical Data

Diameter range
8 - 35 mm
Base material
Concrete, Masonry
Operation mode
Hand-held and rig-mounted drilling system
Number of gears
1
No load RPM
gear 1: 9200 rpm
Weight according to EPTA-Procedure 01/2003 without battery
7.6 kg
Dimensions (LxWxH)
429 x 127 x 238 mm
A-weighted emission sound pressure level
88 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
6 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
C+ 18/300 SPX-T
Corner accessibility
45 mm
  1. According to the applicable product standard (see Operating Instruction for more details)

Documents

Material safety datasheet
Operating Instruction
pdf Material safety datasheet Spray 66/300 ML (EN) [ 137.9 KB ]

Features & Applications

Features

  • Very low drilling noise – the ideal solution for drilling in inhabited buildings
  • Impact-free drilling reduces the risk of damage to brittle materials and allows drilling close to edges
  • Fast drilling through rebar thanks to the unique TopSpin technology
  • Soft-start feature for precise hole positioning
  • The quick-lock keyless chuck system makes changing core bits quicker and easier than ever

Applications

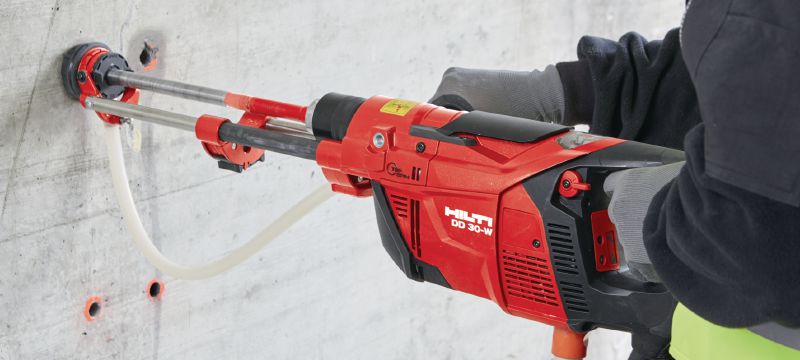

  • Drilling accurate anchor holes and through holes 8 to 35 mm (5/16 - 1-3/8") in diameter
  • Low-noise drilling for setting anchors during renovation work in hospitals, commercial and residential buildings

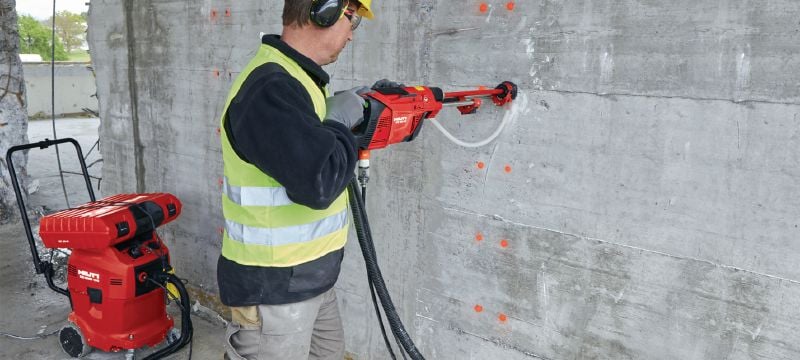

  • Wet coring in heavily-reinforced concrete, masonry and natural stone
  • Wet coring in brittle materials (marble, tiles, masonry, natural stone) and close to edges

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • After the no-cost period, repair costs are capped at max. 40% of the price of an equivalent new tool
  • 3-month no-cost period after each repair
