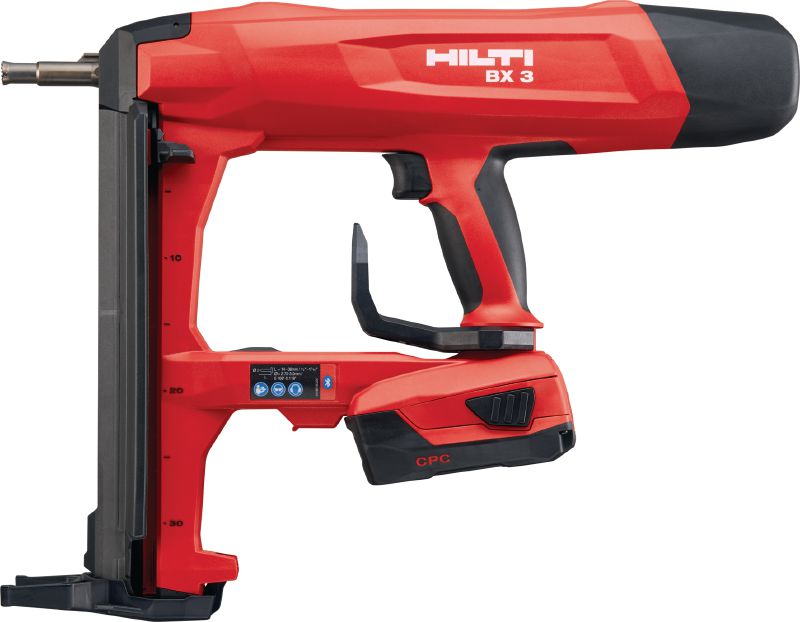

BX 3-L (02) Fastening tool

Batt.-actuated tool BX 3-L A22 case #2161469

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
L101512_v1 (187873)

22V cordless nailer for interior finishing applications

  • Dimensions (LxWxH): 474 x 134 x 368 mm
  • Tool body weight: 3.478 kg
  • Fastener length range: 14 - 36 mm

Customers also searched for drywall applications, Powder-actuated fastening tool or battery tool.

Customize your kit

Tool Body
Tool body with case Includes: 3x Clip BX 3-L printed, 1x Tool case BX 3 / L / ME
How many kits do you want to order?
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
HKD 18,463.14

Technical Data

Dimensions (LxWxH)
474 x 134 x 368 mm
Tool body weight
3.478 kg
Fastener length range
14 - 36 mm
Bluetooth
Yes
Power source type
22 V battery platform
Rated voltage
21.6 V

Documents

Technical information
Operating Instruction
pdf [PDS_T_002_BX] BX 3 Battery-actuated tool - Data Sheet 05/2025, English [ 1.3 MB ]

Features & Applications

Features

  • Second generation of Hilti’s combustion-free direct fastening technology – for high-quality, more reliable fastening to concrete, steel and some types of solid masonry
  • Combustion-free operation – no gas cans or powder cartridges to store and dispose of
  • Drives up to 800/500/400 fasteners with a single battery charge (depending on B22 battery model - 5.2 Ah, 3.0 Ah or 2.6 Ah)
  • Magazine capacity of 30 nails
  • Engineered for high productivity – fastening rate of 1.3 nails per second

Applications

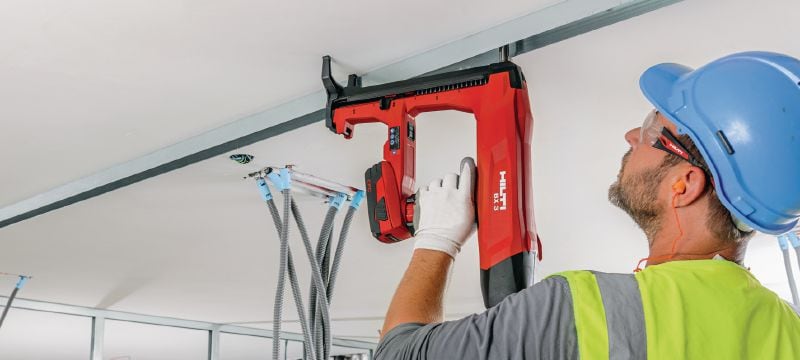

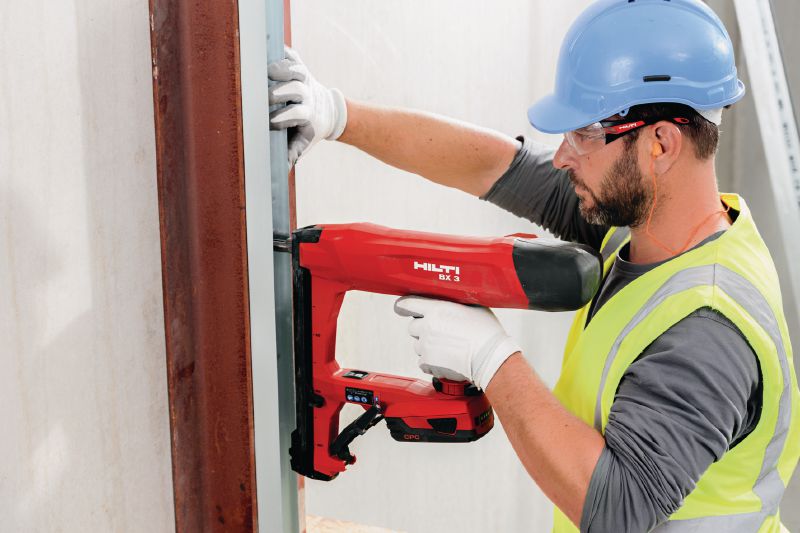

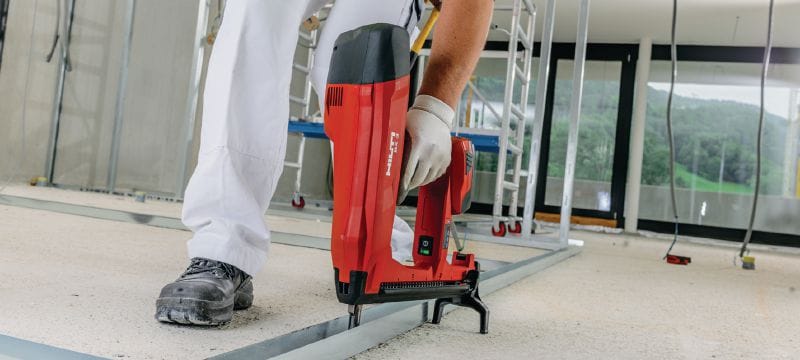

  • Fastening drywall track to floors, walls and ceilings on concrete, solid masonry or steel
  • Fastening mesh, membranes or foil with special washer holders to concrete walls
  • Fastening wall tie connections to concrete, solid masonry or steel – use of the special washer holder is recommended
  • Suitable for various light-duty fastening applications on concrete, solid masonry or steel
  • Fastening cables, conduits or various light electrical installations – use of the ME nailer nose is recommended

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • After the no-cost period, repair costs are capped at max. 40% of the price of an equivalent new tool
  • 3-month no-cost period after each repair
