Nuron

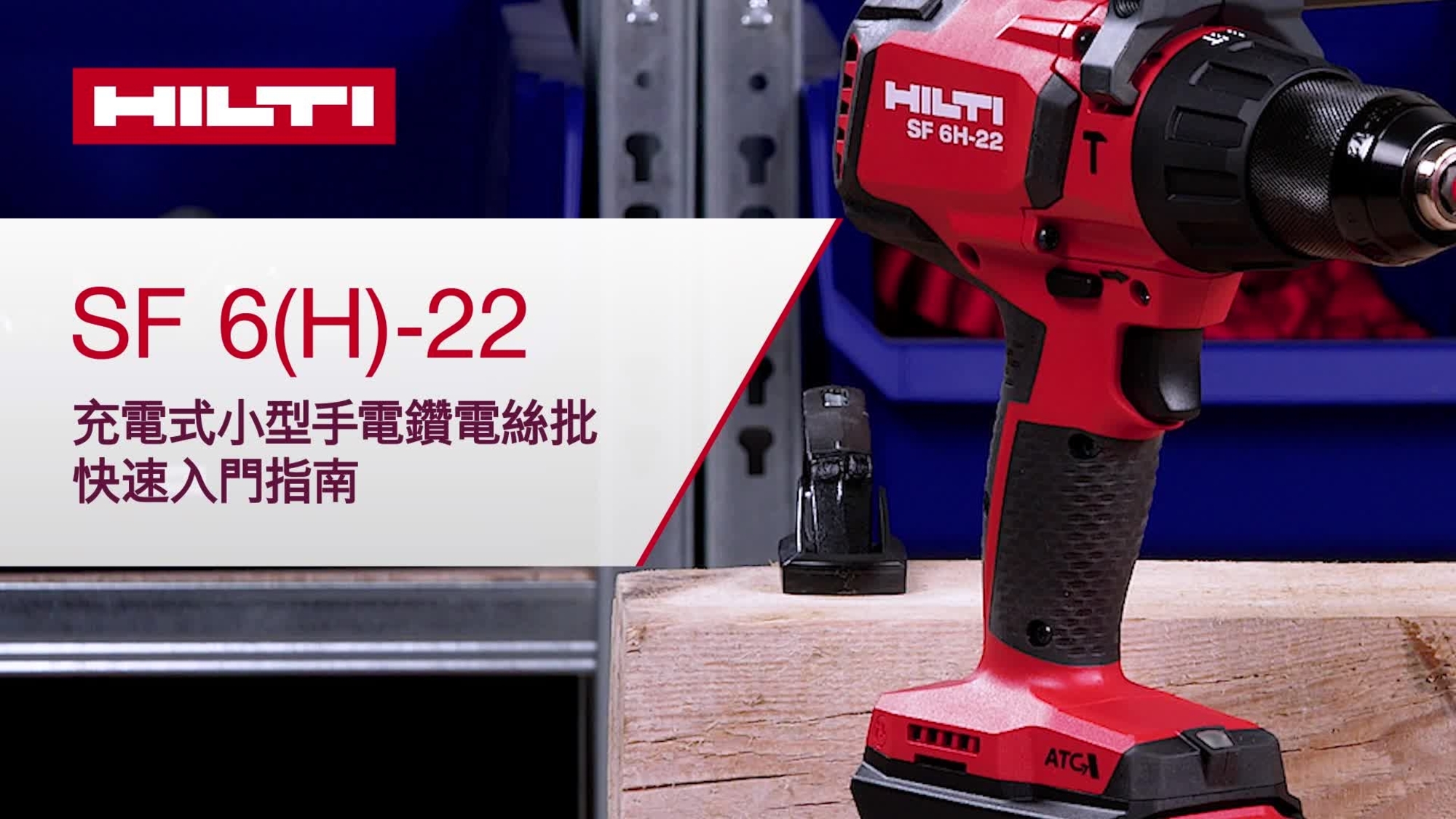

SF 6H-22 Cordless hammer drill driver

Name: SF 6H-22 Cordless hammer drill driver
Brand: Hilti
SKU: r13275508

Power-class hammer drill driver with Active Torque Control and advanced ergonomics for universal drilling and driving on wood, metal and masonry (Nuron battery platform)

Maximum torque (soft/hard joint): 65 Nm (soft joint), 85 Nm (hard joint)
No load RPM: gear 1: 490 rpm; gear 2: 2000 rpm
Chuck clamping range: 2 - 13 mm

Technical Data

Maximum torque (soft/hard joint)

65 Nm (soft joint), 85 Nm (hard joint)

No load RPM

gear 1: 490 rpm; gear 2: 2000 rpm

Chuck clamping range

2 - 13 mm

Number of gears

Torque increments

Dimensions (LxWxH)

208 x 68 x 215 mm

Tool body weight

1.677 kg

A-weighted emission sound pressure level

98 dB (A) ¹

Rated voltage

21.6 V

Triaxial vibration value for drilling into metal (ah,D)

1.1 m/s² ²

According to the applicable product standard (see Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

High-speed, high-torque cordless hammer drill driver built to help you save time with every hole you drill or screw you drive, including in masonry
Uncompromised cordless performance – drill and drive more per charge at consistently high speed thanks to Nuron batteries and the brushless motor
Built to last – full metal chuck, brushless motor, rubber bumpers and optimised cooling to better withstand intense use under tough jobsite conditions
Advanced safety features – Active Torque Control (ATC) helps to prevent the tool body from uncontrolled spinning if the drill bit sticks, and an LED work light in the base provides a clear view of your work area
On the Nuron battery platform – cordless tools without compromise thanks to longer-lasting batteries, energy-saving drill bits and a range of services to keep you more productive, today and tomorrow

Applications

Hammer drilling in brick, masonry and aerated concrete (max. diameter 14 mm)
Cutting recesses and through-holes with hole saws (max. diameter 127mm)
Drilling with auger and spade bits in wood (max. diameter 32 mm)
Fast driving of self-drilling screws in metal (max. diameter 6.3 mm)
Fast drilling with high torque in metal (max. diameter 13 mm)

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
After the no-cost period, repair costs are capped at max. 40% of the price of an equivalent new tool
3-month no-cost period after each paid repair

More information about Tool Services

Fleet Management

Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
High-performing tools and latest technology help to increase jobsite productivity.
Loan tools during repair to reduce downtime.
Temporary tools for peak times and special applications help to reduce investments.
Theft coverage helps to reduce financial risk and unexpected expenses.

More information about Fleet Management
