Nuron

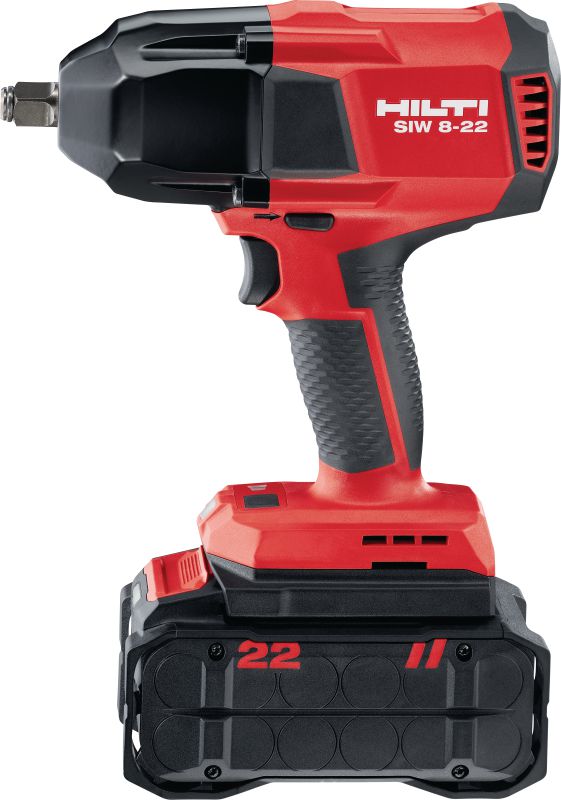

SIW 8-22 ½” Cordless impact wrench
Ultimate-class, high-torque cordless impact wrench with 1/2" friction ring anvil for structural bolting and anchoring (Nuron battery platform)
- Anvil type: 1/2" friction ring
- Maximum torque: 600 Nm (1); 1000 Nm (2)
- Nut-busting torque: 1650 Nm
Technical Data
Anvil type
1/2" friction ring
Maximum torque
600 Nm (1); 1000 Nm (2) 1
Nut-busting torque
1650 Nm
Full hammering frequency
2.950 impacts/minute
Number of gears
2
No load RPM
gear 1: 1250 rpm; gear 2: 1500 rpm
Dimensions (LxWxH)
205 x 80 x 223 mm
Tool body weight
2.4 kg
A-weighted emission sound pressure level
101 dB (A) 2
Rated voltage
21.6 V
- Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- Uncompromised cordless power – heavy-duty ½” cordless impact wrench offers higher torque and greater productivity, capable of structural bolting in anchors up to M24
- Durable build – brushless motor and friction ring anvil contribute to the extreme longevity of our cordless impact wrenches
- Faster anchor setting with more control – two speed settings and improved LED light so you can set HUS concrete anchors faster, and maintain better control when working with smaller bolts
- Exceptional ergonomics – slimmer, 45 mm shorter and 0.5 kg lighter than the SIW 9-A22, helping to make your work more comfortable when bolting and anchoring all day
- On the Nuron battery platform – cordless impact wrenches without compromise thanks to longer-lasting batteries, time-saving accessories and a range of services to keep you productive, today and tomorrow
Applications

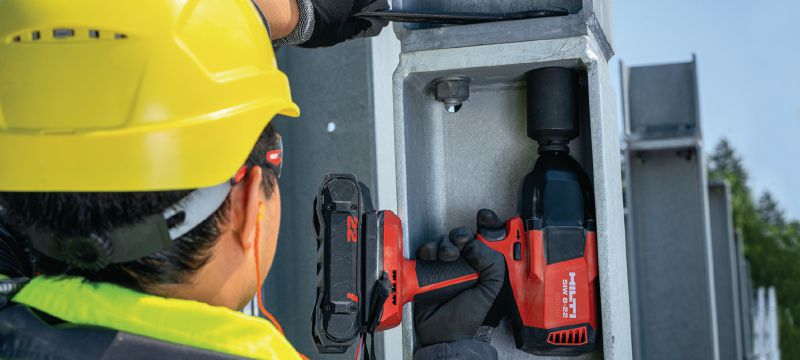

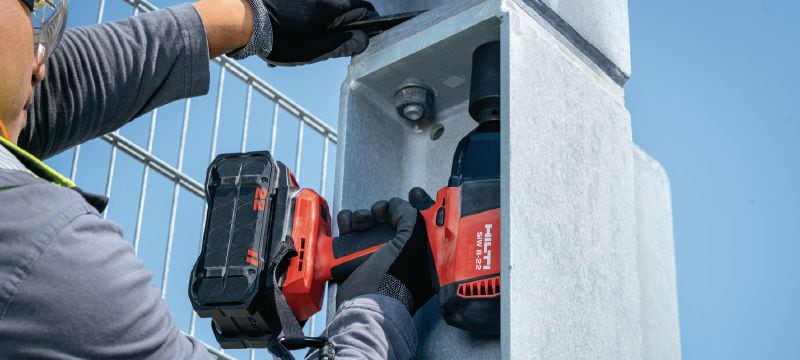

- Bolting steel – such as for primary and secondary steel structures, handrails, racking and machinery (M12-M24 diameter)

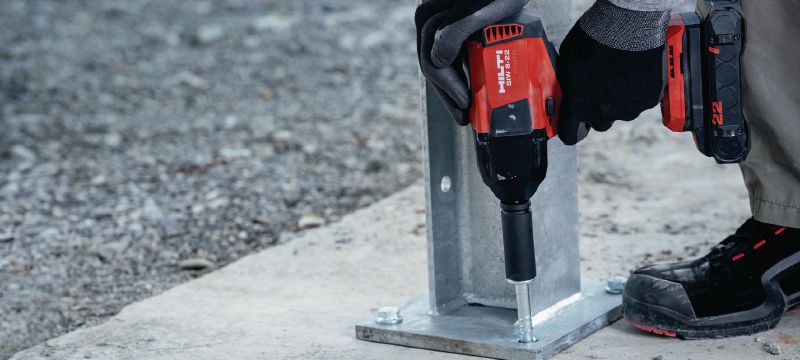

- Setting HUS anchors in concrete – such as for baseplates, formwork props, handrails and temporary fixtures (10-14 mm diameter)

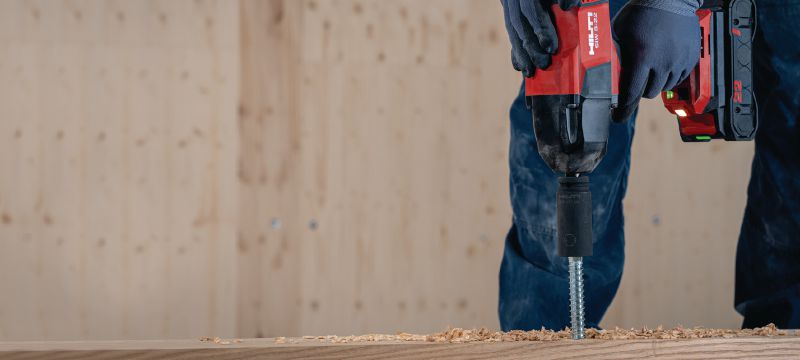

- Lag bolting in wood – such as for primary and secondary wood structures, wooden roofs or temporary structures (12-20 mm diameter)
- Bolting steel – structural steel connections, pipe flanges, equipment, A325 bolts (1/2” to 15/16” diameter)
- Setting HUS anchors in concrete – such as for baseplates, formwork props, handrails and temporary fixtures (1/2” to 3/4” diameter)
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
- After the no-cost period, repair costs are capped at max. 40% of the price of an equivalent new tool
- 3-month no-cost period after each paid repair
Fleet Management
- Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
- High-performing tools and latest technology help to increase jobsite productivity.
- Loan tools during repair to reduce downtime.
- Temporary tools for peak times and special applications help to reduce investments.
- Theft coverage helps to reduce financial risk and unexpected expenses.
