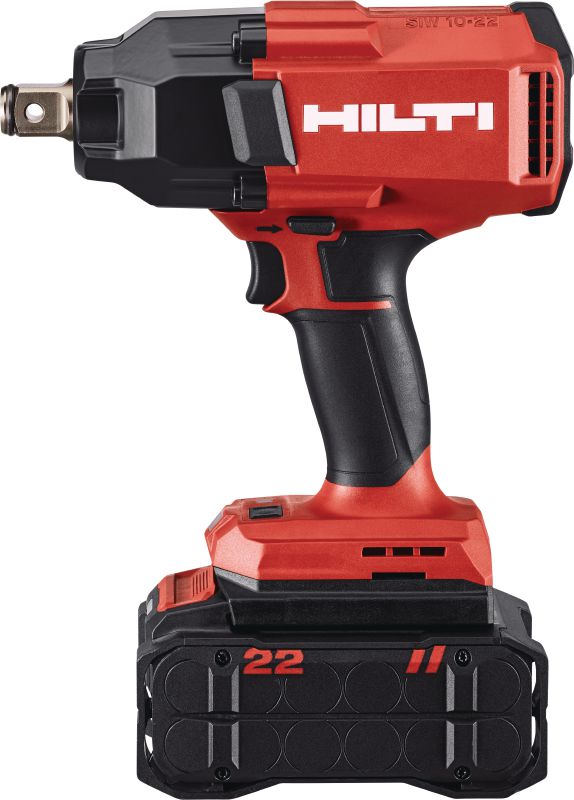

SIW 10-22 ¾” high-torque cordless impact wrench

Cordl. imp. wrench SIW 10-22 3/4" box #2361531

Configurator

Technical Data

Documents

Features & Applications

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

HKD 5,119.58

HKD 5,119.58 / 1 Piece

Technical Data

Anvil type

3/4" through hole with friction ring

Maximum torque

850 Nm (1); 1600 Nm (2) ¹

Nut-busting torque

2000 Nm

Full hammering frequency

2500 impacts/minute

Number of gears

No load RPM

gear 1: 1000 rpm; gear 2: 1250 rpm

Dimensions (LxWxH)

217 x 86 x 235 mm

Tool body weight

2.9 kg

A-weighted emission sound pressure level

100 dB (A) ²

Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SIW 10-22 (01), Arabic, cn, Danish, English, Estonian, Finnish, French, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Russian, Swedish, Turkish, Ukrainian, Chinese [ 3.1 MB ]

Download

Features & Applications

Features

Advanced cordless performance – heavy-duty cordless impact wrench offers higher torque and greater power in a more compact body
Designed to last – robust brushless motor and ¾” anvil contribute to the durability and consistent performance of our cordless impact wrenches
More productivity and control – two speed settings and brighter LED light so you can transition easily from heavy to lighter-duty applications
Less vibration for more user comfort – lower tool vibration enables longer periods of work without user fatigue
On the Nuron battery platform – cordless tools without compromise, thanks to longer-lasting batteries, time-saving accessories and a range of services to keep you productive, today and tomorrow

Applications

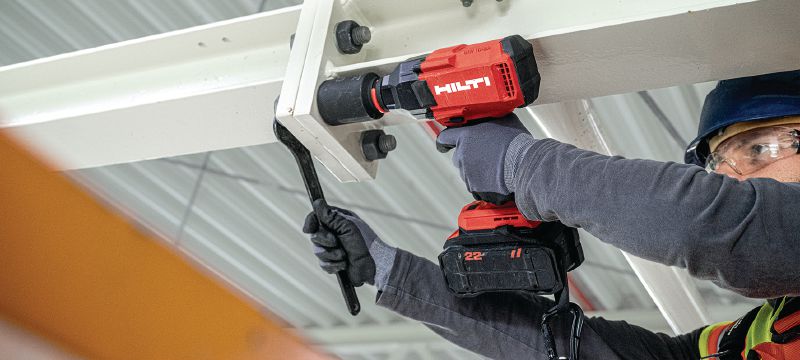

Bolting steel for primary and secondary steel structures, handrails, racking and machinery (up to M30 diameter high-tensile bolts)

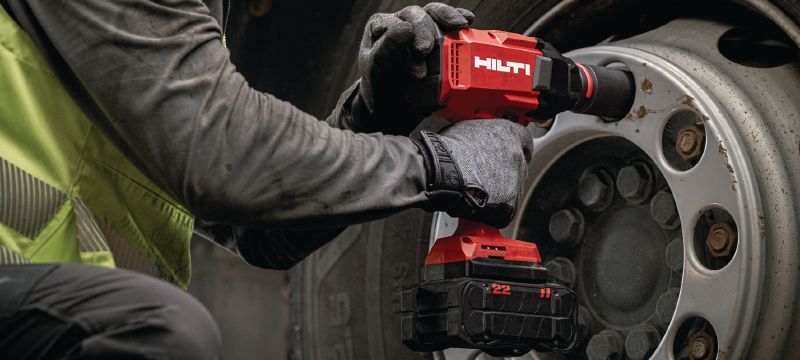

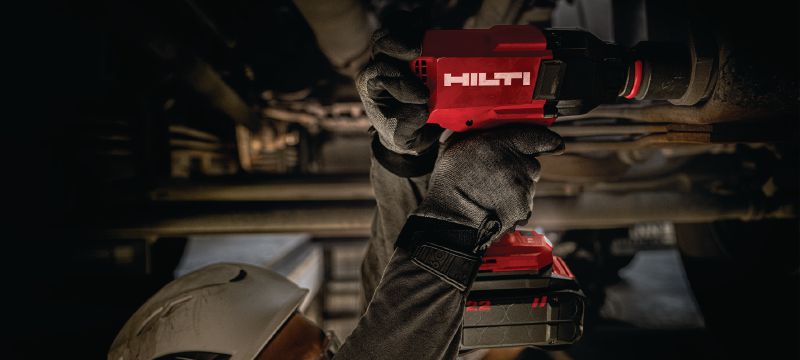

Loosening large rusty bolts for maintenance, operation and repair work

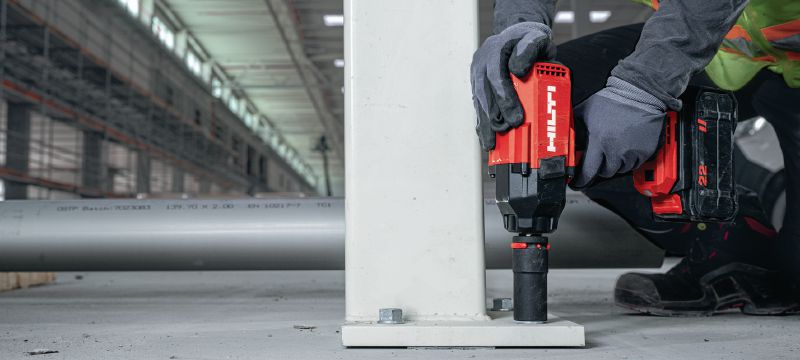

Setting large diameter HUS anchors in concrete for baseplates, formwork props, handrails and temporary fixtures (10-16 mm diameter)
Lag bolting in wood for primary and secondary wood structures, wooden roofs or temporary structures (12-20 mm diameter)
Bolting structural steel connections, pipe flanges, equipment, 1/2”to 1 1/8” diameter structural bolts
