TE 30-22 cordless rotary hammer

TE 30-22 + TE CX 20/22 (2) #3831806

Configurator

Technical Data

Features & Applications

Customize your kit

Tool Body

Tool body with cardboard box

How many kits do you want to order?

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

HKD 8,339.42

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery

3.9 kg

Optimum hammer drilling range

10 - 25 mm

Single impact energy

3.8 J

Hammer drilling diameter range

5 - 28 mm

Hammer drilling RPM

777 rpm

Full hammering frequency

4500 impacts/minute

Functionality

Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiselling, Chipping, Depth gauge, Removable chuck, Reverse mode, Torque clutch

Triaxial vibration value for hammer drilling into concrete (ah,HD)

11.1 m/s² ¹

Triaxial vibration for chiselling in concrete

8.5 m/s² ²

A-weighted emission sound power level

102 dB (A) ³

A-weighted emission sound pressure level

94 dB (A) ⁴

Dust removal system available

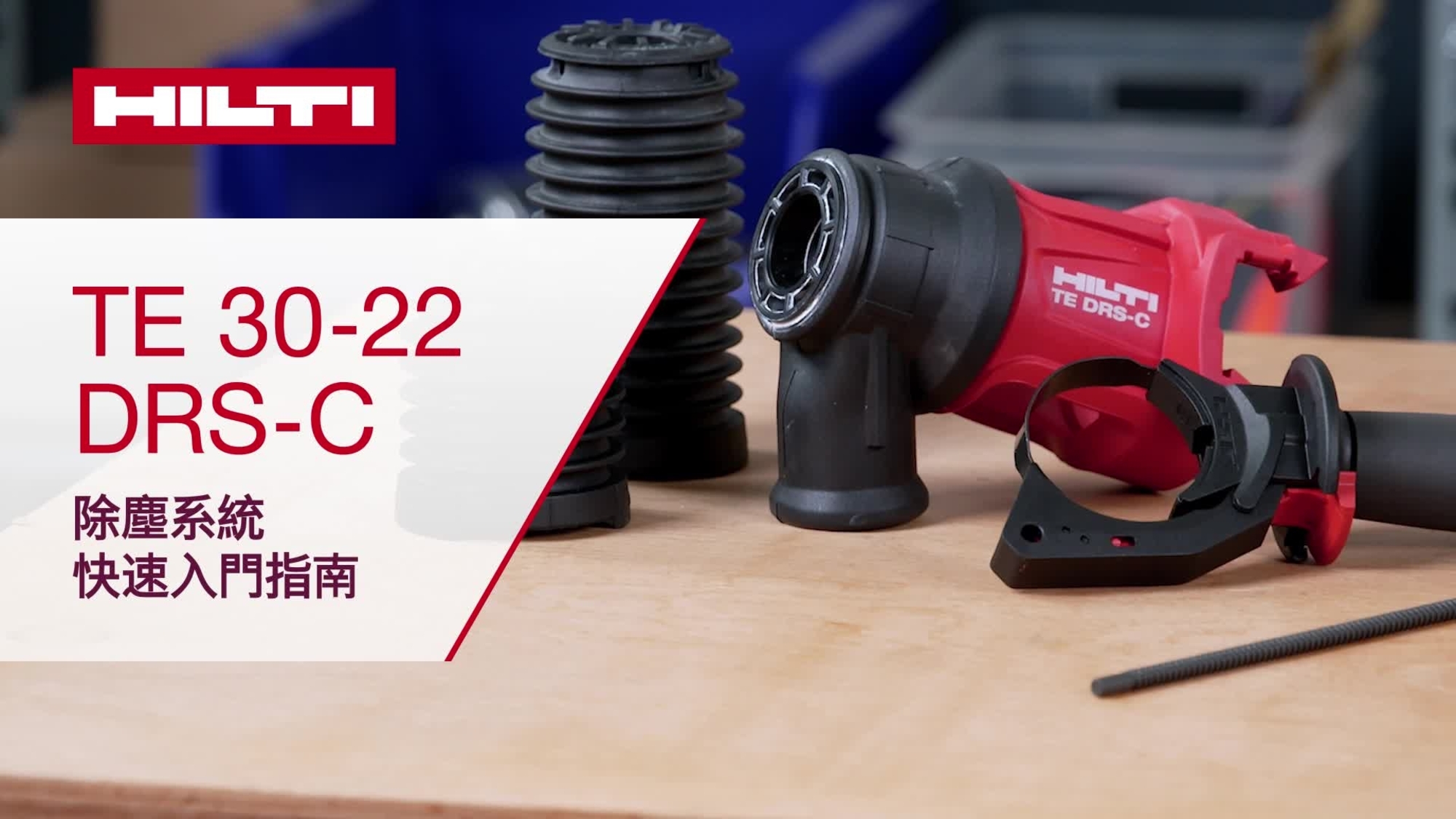

TE DRS-D, TE DRS-C

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

Our most powerful SDS Plus cordless rotary hammer drill ever, still weighing just 5.1 kg (including B 22-170 battery)
Exceptional drilling speed – drills through reinforcing bar up to 200% faster than predecessors
More run time per charge – drills up to twice as long as comparable SDS Plus rotary hammers thanks to the combination of brushless motor and revolutionary Nuron batteries
Versatility – with a wider optimal drilling range and extensive range of chisel bits and hole saws available, TE 30-22 is an extremely versatile tool with a wide range of capabilities for any jobsite
Comprehensive safety features – includes Active Torque Control (ATC) to better protect you from uncontrolled spinning if the bit jams

Applications

Drilling anchor holes in concrete and masonry (recommended diameter range 10-28 mm)
Drilling holes for reinforcing bar doweling

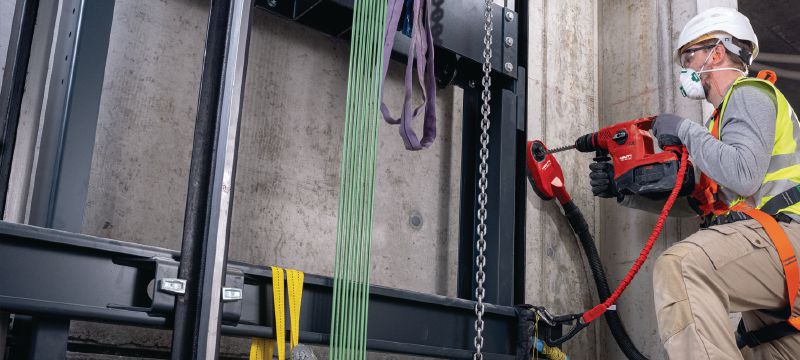

Virtually dust-free drilling (TE DRS-C or TE DRS-D vacuum cleaner connector required)
light-duty chiseling – such as tile scraping, channel cleaning and surface correction
Occasional drilling in wood and steel (optional quick-release chuck required)
