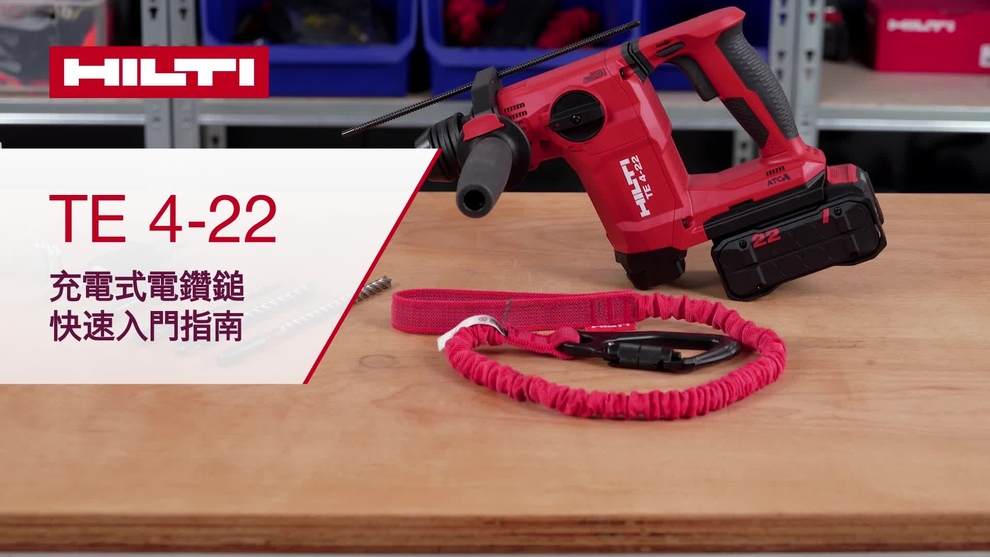

TE 4-22 Cordless rotary hammer

TE 4-22 + TE CX (6) M2 set #3831804

Configurator

Technical Data

Features & Applications

Customize your kit

Tool Body

Tool body with cardboard box

How many kits do you want to order?

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

HKD 2,638.48

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery

2.45 kg

Optimum hammer drilling range

4 - 14 mm

Single impact energy

2.3 J

Hammer drilling diameter range

4 - 28 mm

Hammer drilling RPM

1050 rpm

Full hammering frequency

5100 impacts/minute

Functionality

Active Torque Control (ATC), Active Vibration Reduction (AVR), Depth gauge, Hammer drilling, Integrated Dust Removal System (DRS), Reverse mode, LED working light

Triaxial vibration value for hammer drilling into concrete (ah,HD)

12.3 m/s² ¹

A-weighted emission sound power level

98 dB (A) ²

A-weighted emission sound pressure level

90 dB (A) ³

Dust removal system available

TE DRS-4/6, TE DRS-C, TE DRS-D

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

Compact but highly capable – the best balance of power-to-weight ratio, drilling speed and work per charge of any Hilti SDS Plus rotary hammer drill
Faster drilling – finish your installation faster thanks to 20% more power from the new brushless motor and revolutionary Nuron batteries
Improved comfort – reduced weight, redesigned grips, LED light and better balance make the TE 4-22 cordless rotary hammer especially easy to handle when drilling overhead
Comprehensive safety features – includes Active Torque Control (ATC) to better protect you from uncontrollable spinning if the bit sticks
Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

Applications

Drilling and hammer drilling in concrete and masonry
Overhead drilling in concrete, such as for hanging pipes and conduits, MEP installations and suspended ceilings
Virtually dust-free drilling (TE DRS-4/6 on-board dust removal system or TE DRS-C vacuum cleaner connector required)
Setting anchors and drop-in anchors in concrete (with optional TE-C bit holder and setting tool)
OSHA 1925.1153 Table 1 compliant, virtually dust-free drilling (TE DRS-4/6 on-board dust removal system or TE DRS-C vacuum cleaner connector required)
