Nuron

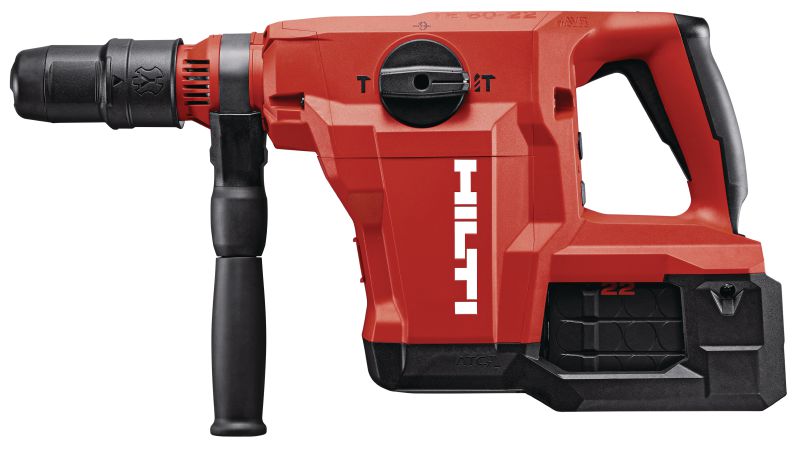

TE 60-22 Cordless rotary hammer

TE 60-22 + TE-YX BP36 #5007156

L601471 (3680642)
L153684_cropped (4154621)
L153601_cropped (4154607)
L153629_cropped (4154608)
L153657_cropped (4154609)
L153667_cropped (4154613)

Powerful and cordless SDS Max (TE-Y) rotary hammer with high power-to-weight ratio for heavy-duty drilling and chiselling in concrete and masonry (Nuron battery)

  • Weight according to EPTA-Procedure 01/2003 without battery: 6.4 kg
  • Optimum hammer drilling range: 18 - 40 mm
  • Single impact energy: 8.8 J

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
HKD 13,104.68
HKD 13,104.68
/
1 Piece

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
6.4 kg
Optimum hammer drilling range
18 - 40 mm
Single impact energy
8.8 J
Hammer drilling RPM
303 rpm
Full hammering frequency
3480 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Hammer drilling, Chiselling, Power reduction
Triaxial vibration value for hammer drilling into concrete (ah,HD)
10.2 m/s² 1
Triaxial vibration for chiselling in concrete
9.1 m/s² 2
Dust removal system available
TE DRS-Y, TE DRS-D
A-weighted emission sound pressure level
98 dB (A) 3
A-weighted emission sound power level
106 dB (A) 4
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)
  4. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (EN) [ 735.2 KB ]

Features & Applications

Features

  • Outsized power-to-weight ratio – our next-generation TE 60-22 offers 25% faster drilling speeds and the power you’d expect from a much heavier rotary hammer
  • Maximised work per charge – brushless motor and more efficient 22V Nuron batteries help you get more battery run time

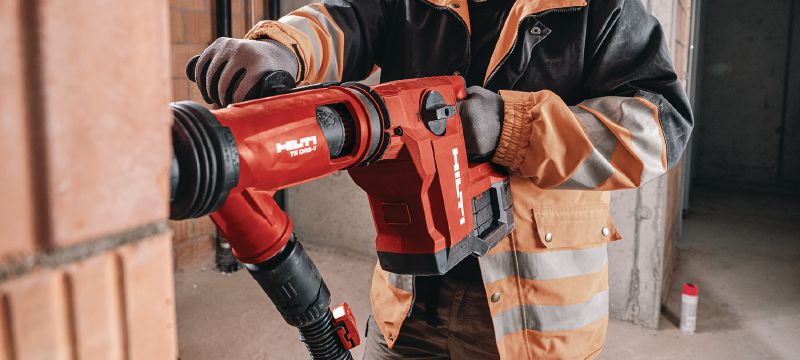

  • Upgraded safety features – includes Active Torque Control (ATC) to better protect you from uncontrolled spinning if the bit jams, and Dust Removal System (DRS) compatibility for virtually dust-free drilling
  • Longer trigger time – Active Vibration Reduction (AVR) helps shield from vibration so that you can work with fewer interruptions
  • On the Nuron battery platform – cordless rotary hammers without compromise thanks to longer-lasting lithium-ion batteries, energy-saving drill bits and a range of services to keep you productive, today and tomorrow

Applications

  • Extremely versatile rotary hammer drill for heavy-duty concrete construction work as well as building services installation

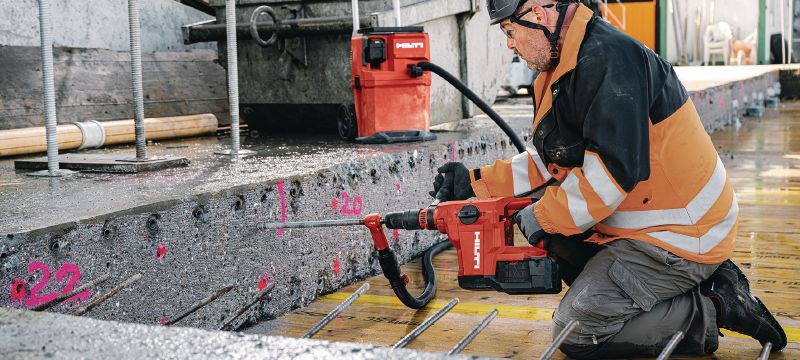

  • Drilling holes for post-installed rebar connections in concrete (recommended diameter range 3/4” to 1-5/8”)
  • Drilling holes for post-installed rebar connections in concrete (recommended diameter range 20mm to 40mm)

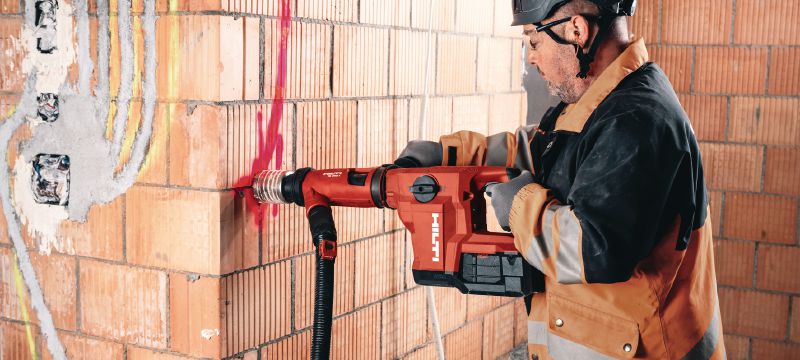

  • Drilling holes for pipe penetrations or electrical outlets through concrete and masonry

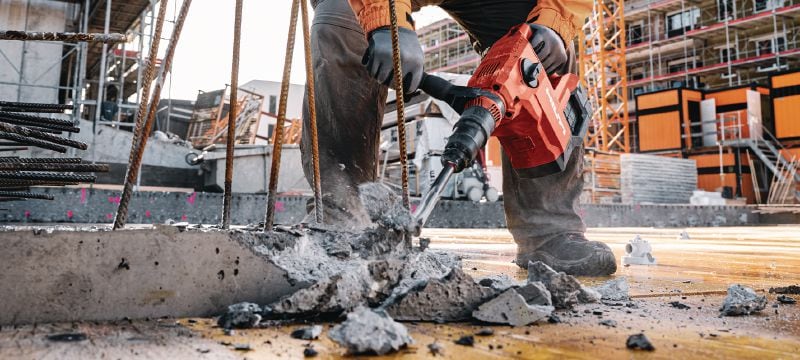

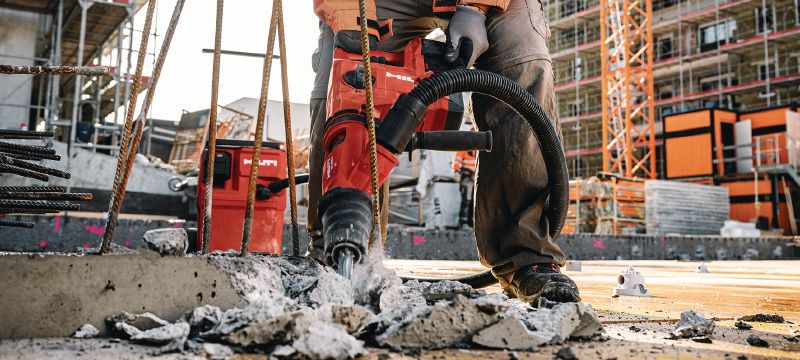

  • Chiselling openings and channels in concrete or masonry
