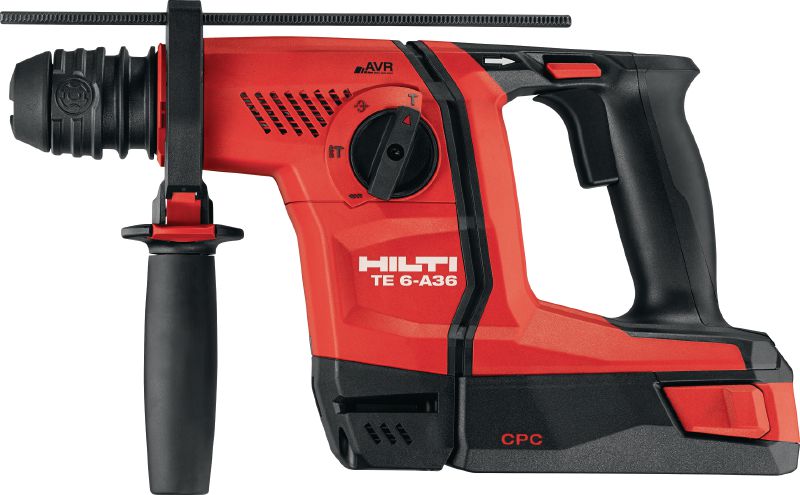

TE 6-A36 Cordless rotary hammer

Name: TE 6-A36 Cordless rotary hammer
Brand: Hilti
SKU: r4694033

Powerful D-grip 36V cordless rotary hammer with superior concrete drilling and chipping performance

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery

3.7 kg

Optimum hammer drilling range

6 - 16 mm

Single impact energy

2.5 J

Hammer drilling diameter range

4 - 20 mm

Hammer drilling RPM

1050 rpm

Full hammering frequency

5100 impacts/minute

Functionality

Active Vibration Reduction (AVR), Integrated Dust Removal System (DRS), Removable chuck, LED working light, Reverse mode, Depth gauge

Triaxial vibration value for hammer drilling into concrete (ah,HD)

16.8 m/s² ¹

Triaxial vibration for chiselling in concrete

8.1 m/s² ²

A-weighted emission sound power level

102 dB (A) ³

A-weighted emission sound pressure level

91 dB (A) ⁴

Dust removal system available

TE DRS-6-A, TE DRS-D, TE DRS-S, DCD

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Extremely powerful rotary hammer, designed for serial concrete drilling
Very convenient and lightweight for superior handling
High run time flexibility thanks to powerful and fast-charging 36V Li-Ion batteries
Active Vibration Reduction (AVR) system designed to increase user comfort and productivity
Virtually dustless drilling with the DRS-6-A dust removal system

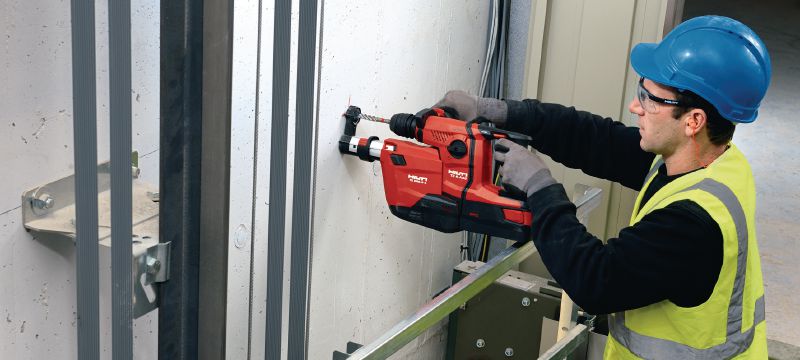

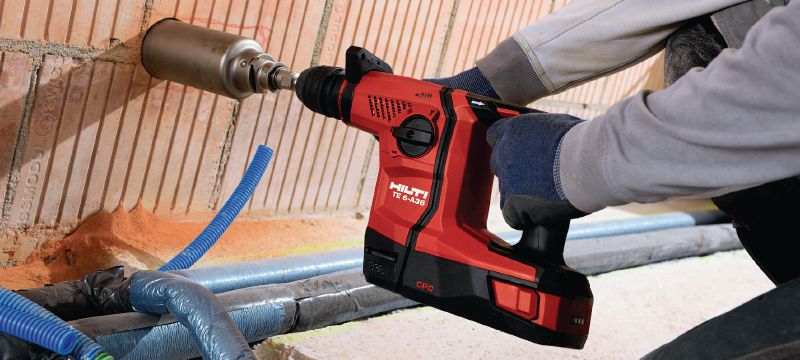

Drilling and hammer drilling in concrete and masonry
Occasional drilling in wood and steel with optional quick-release chuck
Screwdriving using the special bit holder with TE-C (SDS Plus) connection end

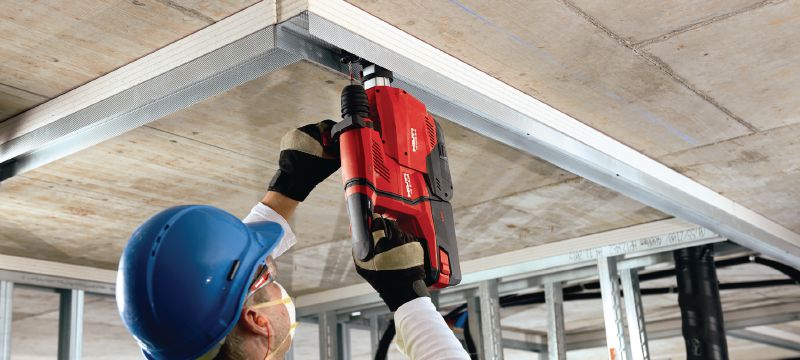

Drilling in concrete in clean areas using the DRS-6-A (02) integrated dust removal system
Light chiselling
