DETECT WHERE TO DRILL

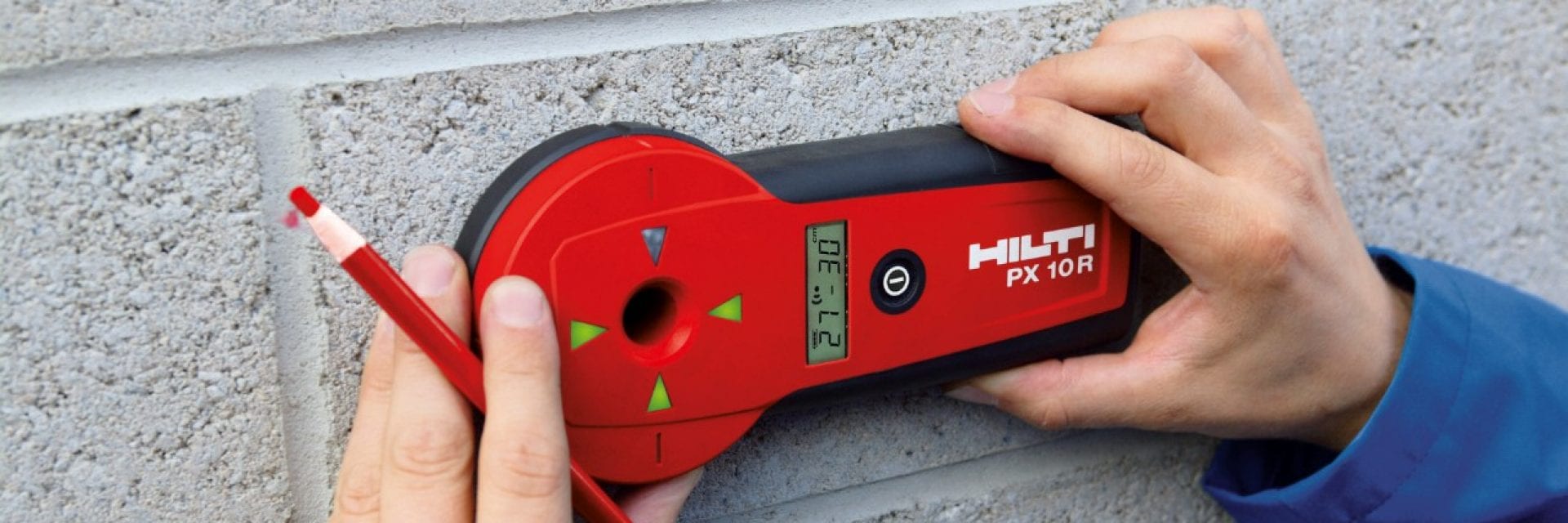

Hilti PX 10 Transpointer

Hilti PX 10 Transpointer detection system

Our Hilti PX 10 Transpointer helps to precisely detect the exact entry or exit point before drilling a hole at any angle on a wall, floor or ceiling.

The detector consists of a PX 10 T transmitter and PX 10 R receiver, with a unique slope adapter, and can determine precisely:

  • Drill bit exit or starting points
  • Drilling angles
  • Thickness of base material and required drill bit length for through penetration

The PX 10 T transmitter uses a magnetic field to penetrate bricks, wood, concrete and steel reinforced concrete and to align with the PX 10 R receiver.

KEY FEATURES OF THE PX 10 TRANSPOINTER

Hilti PX 10 Transpointer detection system
  • Allows drilling to be carried out quickly and efficiently:
    • Allows free choice of drilling direction, for example when drilling through floors.
    • Drilling positions can be determined even where floor levels differ or dividing walls are not in line.
    • Avoids damage when drilling through insulation or cladding by drilling in the right direction.
  • No need for time consuming procedures such as drilling pilot holes, measuring out manually or “trial and error”.
  • Overhead drilling becomes unnecessary.

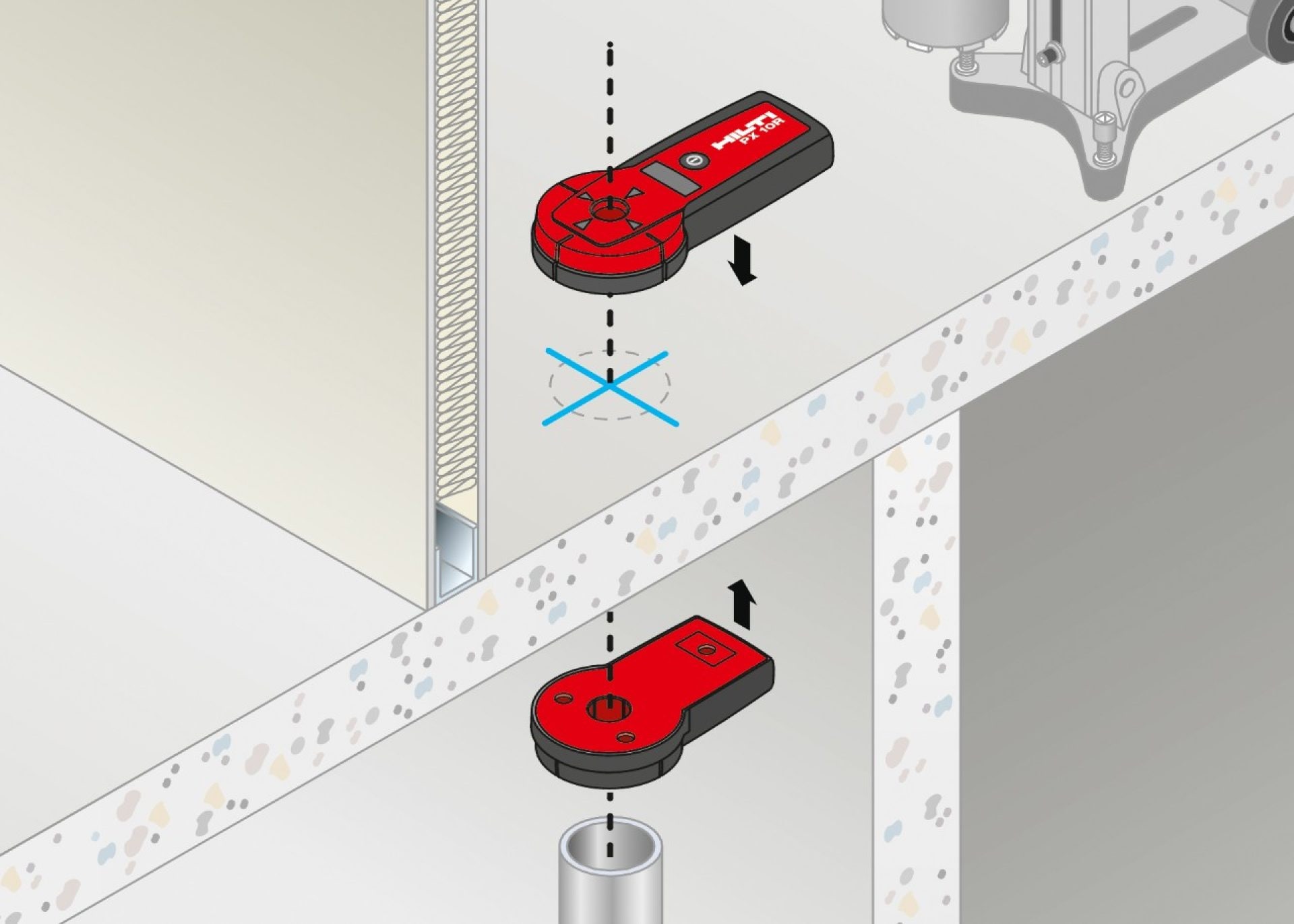

  • Positions can be transposed through floors and walls.
  • Direction arrows for easy, user-friendly operation.

REQUEST A FREE ONSITE DEMONSTRATION

Contact your local Hilti team to request a free demonstration or find out more information. We’re happy to help onsite, online and on the phone.
