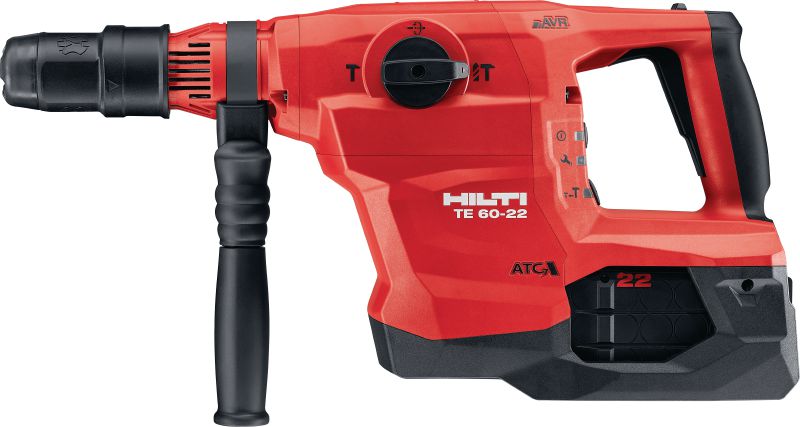

TE 60-22 cordless rotary hammer

Name: TE 60-22 cordless rotary hammer
Brand: Hilti
SKU: r13250315

TE 60-22 + TE-YX SM28 #3831907

Powerful and cordless SDS Max (TE-Y) rotary hammer with Active Vibration Reduction and Active Torque Control for heavy-duty concrete drilling and chiseling (Nuron)

Weight according to EPTA-Procedure 01/2003 without battery: 6.3 kg
Optimum hammer drilling range: 18 - 40 mm
Hammer drilling diameter range: 12 - 100 mm

Customize your kit

Tool Body

How many kits do you want to order?

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

HKD 12,362.50

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery

6.3 kg

Optimum hammer drilling range

18 - 40 mm

Hammer drilling diameter range

12 - 100 mm

Rated voltage

21.6 V

Single impact energy

8.1 J

Hammer drilling RPM

340 rpm

Full hammering frequency

3300 impacts/minute

Functionality

Active Torque Control (ATC), Active Vibration Reduction (AVR), Hammer drilling, Chiselling, Power reduction

Triaxial vibration value for hammer drilling into concrete (ah,HD)

10.7 m/s² ¹

Triaxial vibration for chiselling in concrete

9.1 m/s² ²

Dust removal system available

TE DRS-Y, TE DRS-D

A-weighted emission sound pressure level

98 dB (A) ³

A-weighted emission sound power level

106 dB (A) ⁴

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

Outsized performance – weighing in at just 8.1 kg (inc. B 22-170 battery), TE 60-22 has the drilling and chipping power you'd expect from a much heavier cordless rotary hammer
Maximized working time per charge – brushless motor and more efficient Nuron batteries help you get up to 3x more battery run time
Upgraded safety features – includes Active Torque Control (ATC) to better protect you from uncontrolled spinning if the bit jams, and Active Vibration Reduction (AVR) for increased shielding from vibration
Longer trigger time – minimal vibration so that you can work with fewer interruptions
On the Nuron battery platform – cordless rotary hammers without compromise thanks to longer-lasting batteries, power-saving drill bits and a range of services to keep you productive, today and tomorrow

Applications

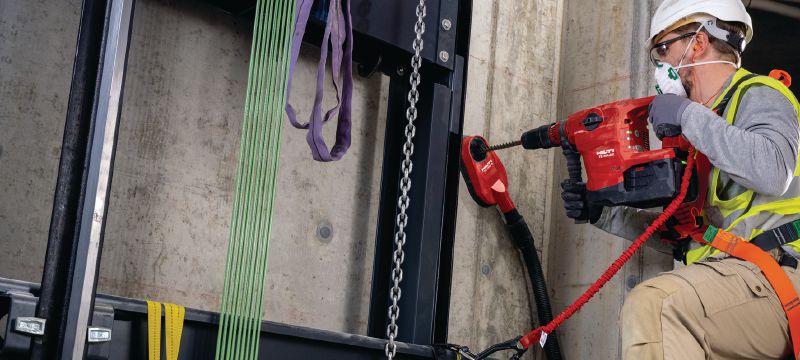

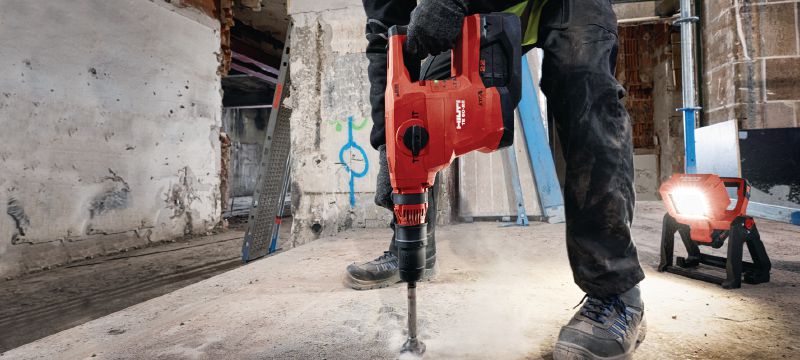

Extremely versatile rotary hammer drill for heavy-duty concrete construction work as well as building services installation

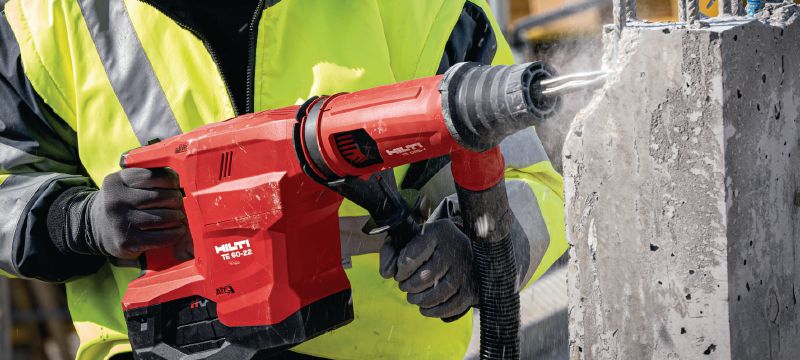

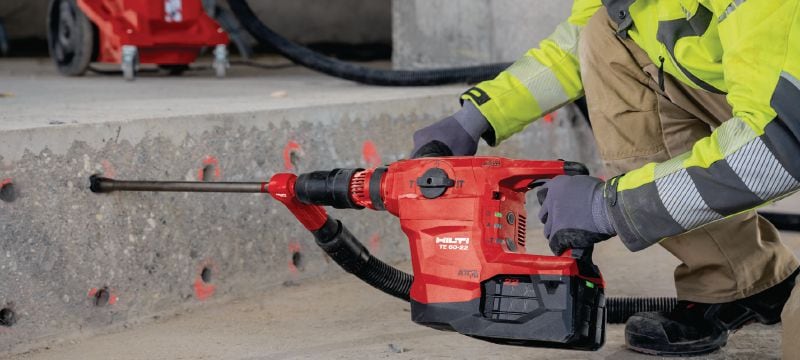

Drilling holes for post-installed reinforcing bar connections in concrete (recommended diameter range 20-40 mm)

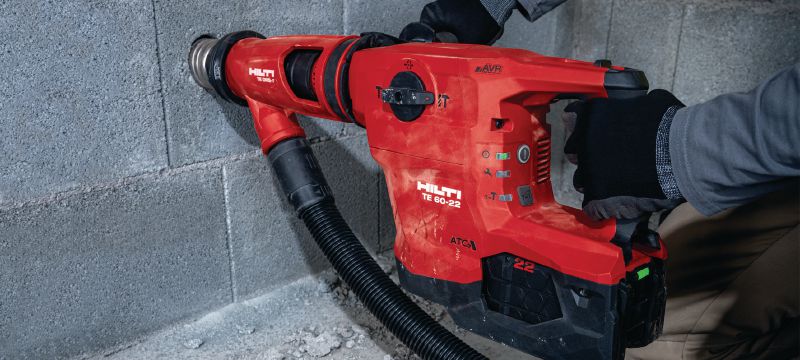

Drilling holes for pipe penetrations or plug sockets through concrete and masonry

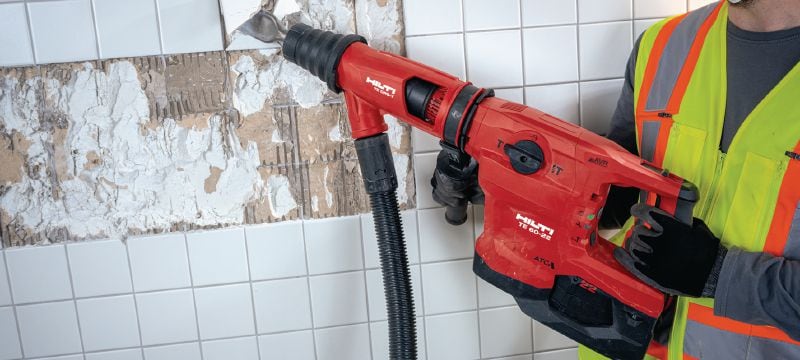

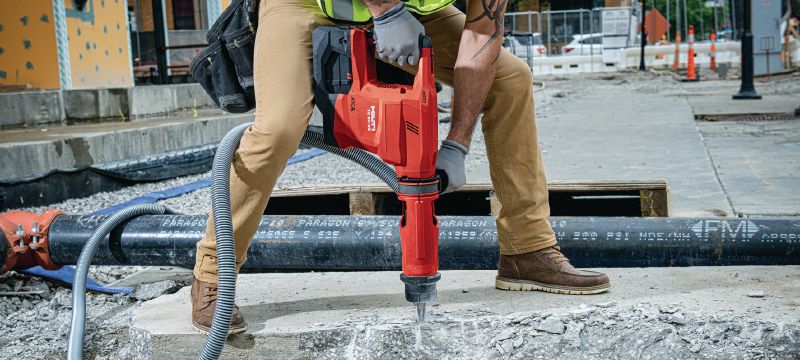

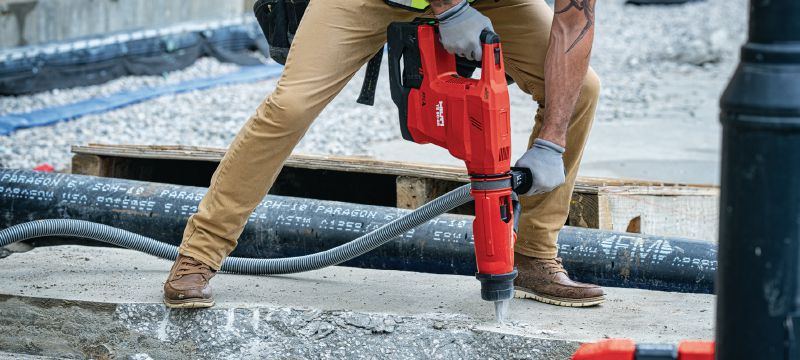

Chiseling openings and channels in concrete or masonry

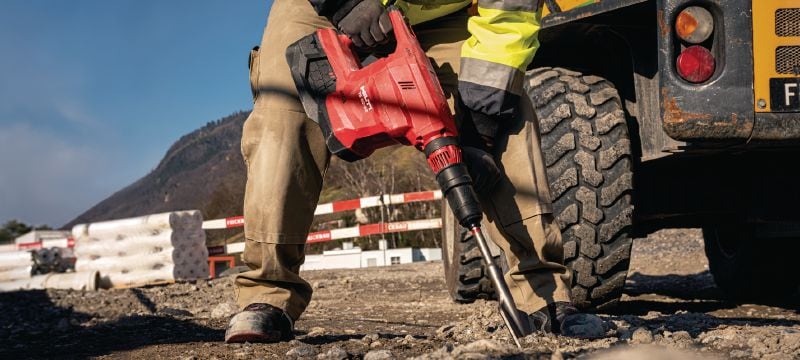

Digging holes in earth – SDS Max clay spade available separately
