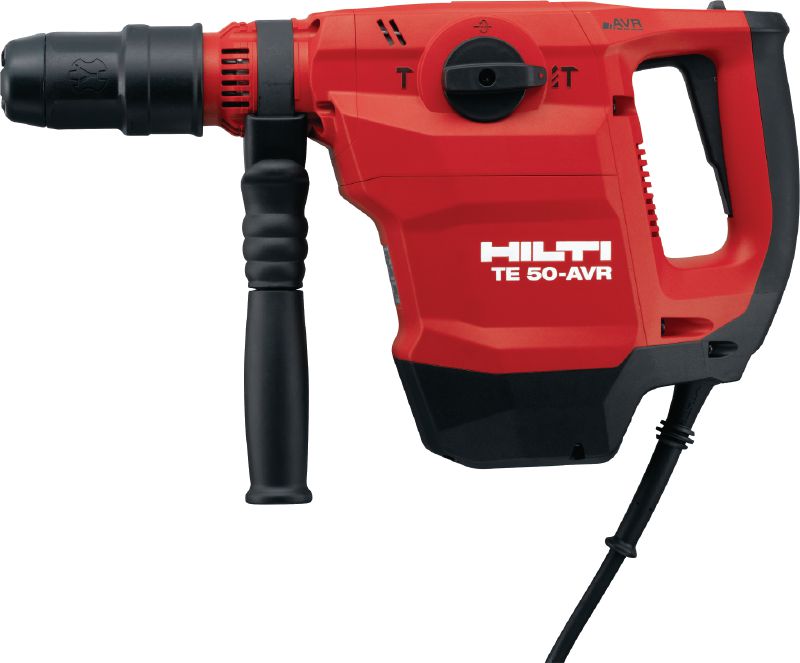

TE 50-AVR Rotary hammer

Our most compact SDS Max (TE-Y) rotary hammer for lightweight comfort and control while drilling or chiseling in concrete, stone, and masonry

  • Weight according to EPTA-Procedure 01/2003 without battery: 6.1 kg
  • Weight class: 5 kg
  • Single impact energy: 6 J

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
6.1 kg
Weight class
5 kg
Single impact energy
6 J
Hammer drilling diameter range
12 - 82 mm
Optimum hammer drilling range
16 - 35 mm
Hammer drilling RPM
360 rpm
Full hammering frequency
3510 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiselling, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
8.8 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D, TE DRS-BK
Triaxial vibration for chiselling in concrete
7.1 m/s² 2
Rated input power
1100 W
Dimensions (LxWxH)
449 x 115 x 272 mm
A-weighted emission sound power level
108 dB (A) 3
A-weighted emission sound pressure level
100 dB (A) 4
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)
  4. According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

  • Exceptionally light and versatile SDS Max (TE-Y) rotary hammer
  • Low contact pressure for high user comfort
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

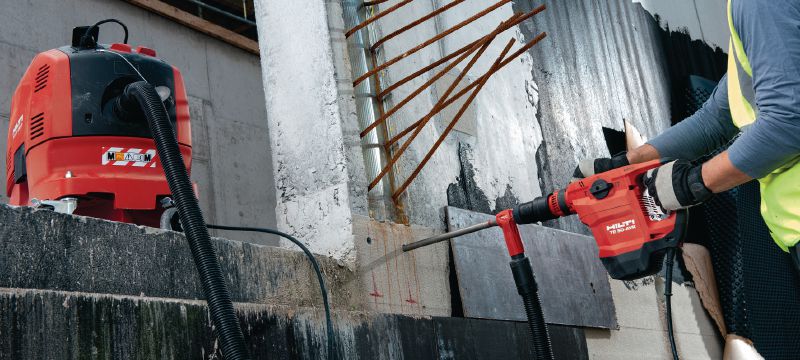

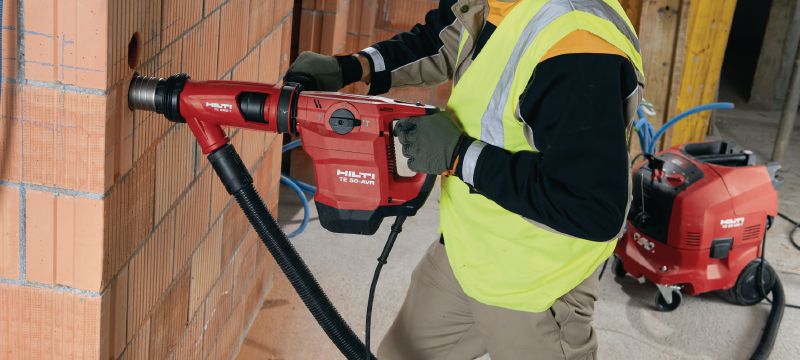

  • Optional DRS-Y dust removal system collects up to 95% of dust
  • Detachable supply cord for quicker and easier replacement of damaged/broken cords on the jobsite

Applications

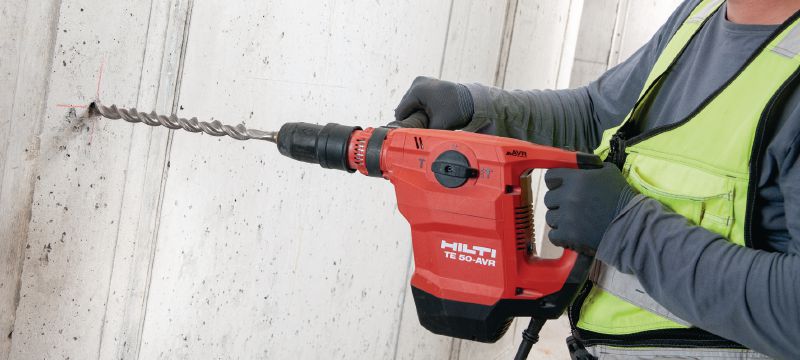

  • Hammer drilling in concrete, masonry and natural stone (possible diameter range 12-55 mm, recommended diameter range 16-32 mm)

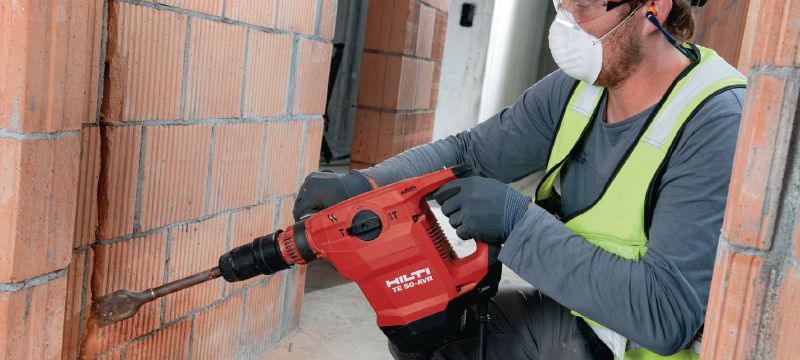

  • Light to medium-duty chiselling in masonry and concrete
  • Drilling penetrations mainly in masonry using percussion core bits (possible diameter range 45-150 mm, recommended diameter range up to 82 mm)
  • Hammer drilling in concrete, masonry and natural stone (possible diameter range 1/2"- 2", recommended diameter range 5/8" - 1 1/4")
  • Drilling penetrations mainly in masonry using percussion core bits (possible diameter range 1 3/4"- 5 15/16", recommended diameter range up to 3 1/4" )

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • After the no-cost period, repair costs are capped at max. 40% of the price of an equivalent new tool
  • 3-month no-cost period after each repair
