new

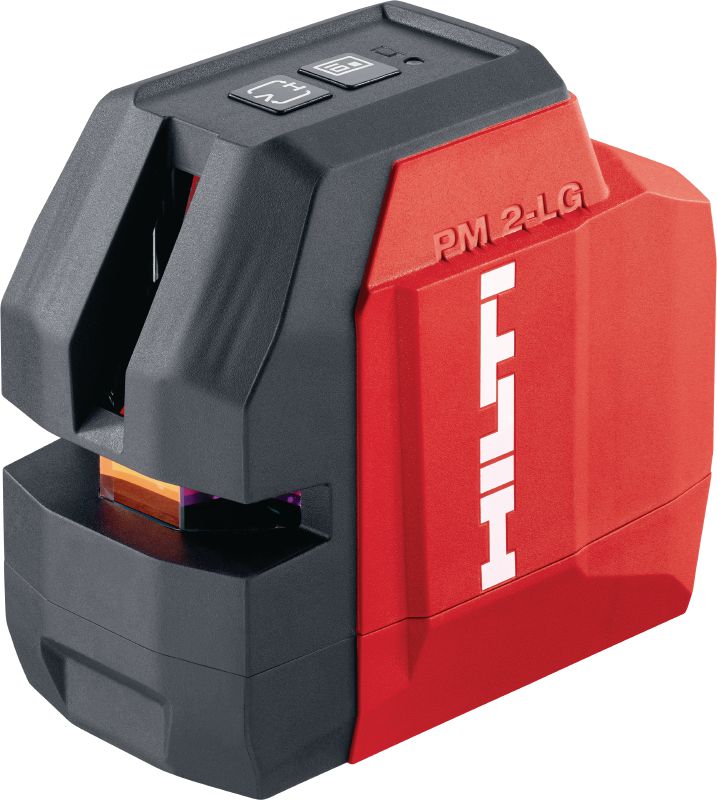

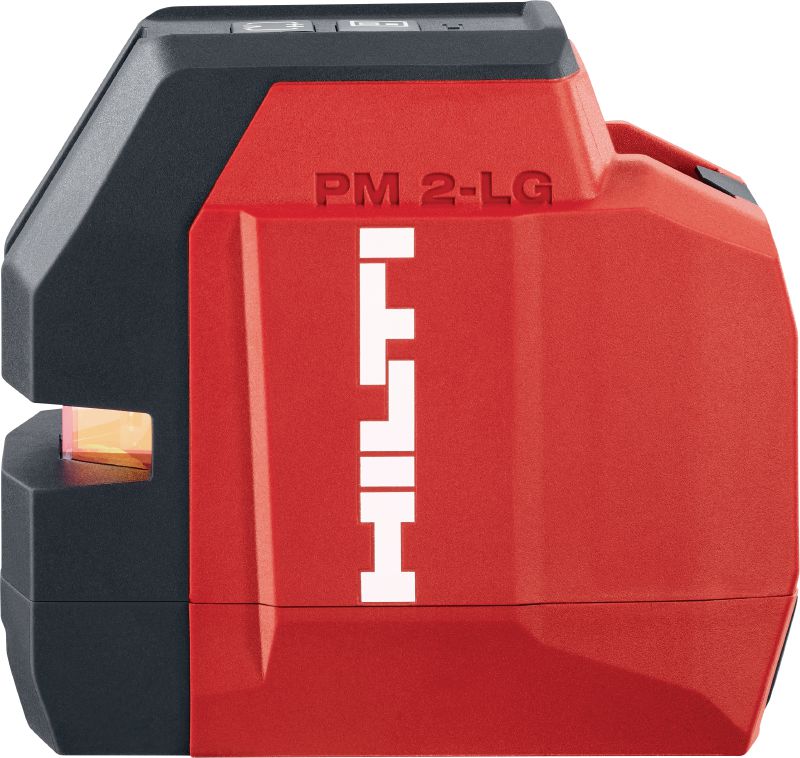

PM 2-LG Green line laser

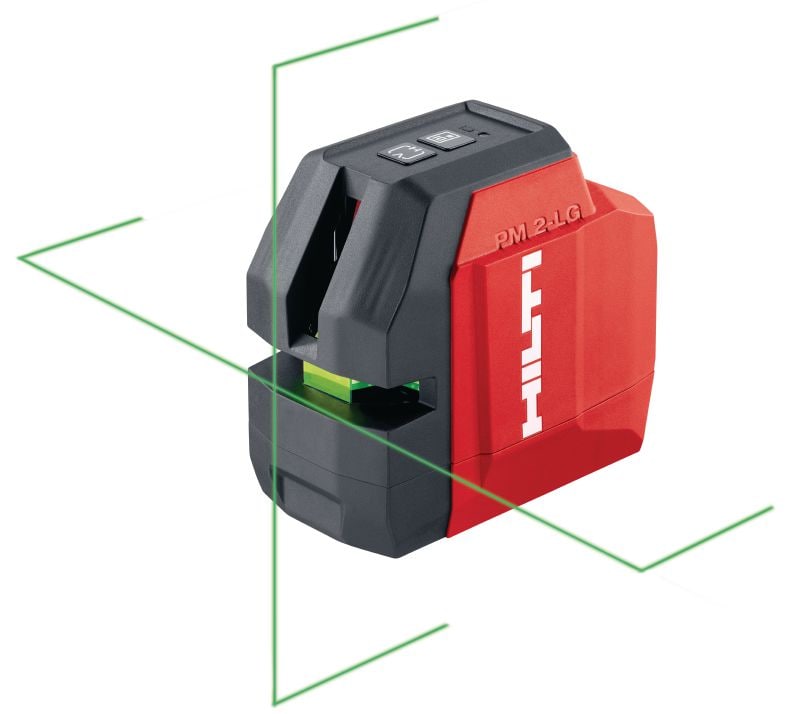

Green line laser with 2 high-visibility beams for leveling and aligning

Technical Data

Accuracy

±3 mm at 10 m

Max. operating distance (diameter)

40 m (lines), 100 m (lines, with receiver) ¹

Maximum operating time

8 h

Battery type

4 x 1.5 V (AA)

Self-levelling range at room temperature

+/-4 °

Self-levelling time

3 s

Horizontal fan angle

200 °

Vertical fan angle

160 °

IP protection class

IP 54 (EN 60529)

Laser type

Line

Operating distance can be significantly affected by site conditions. See operating instructions.

Better visibility for better productivity – green queue lasers give you a beam which is 4x easier to see than red lasers in indoor environments, so you can work over much longer distances without stopping to relocate the laser
Extreme ease of use – one button to toggle vertical/horizontal/cross queues, one button to activate the receiver
Slope mode – you can lock the self-levelling pendulum so this line laser can be used for straight queues at any angle (optional PMA 93 crab clamp recommended)
Practical and durable design – compact housing with rubber bumpers to better withstand jobsite conditions and class 2 laser requiring no special precautionary measures for use
Low battery alert – better avoid unexpected downtime by finding out in advance when your line laser needs new batteries
