Nuron

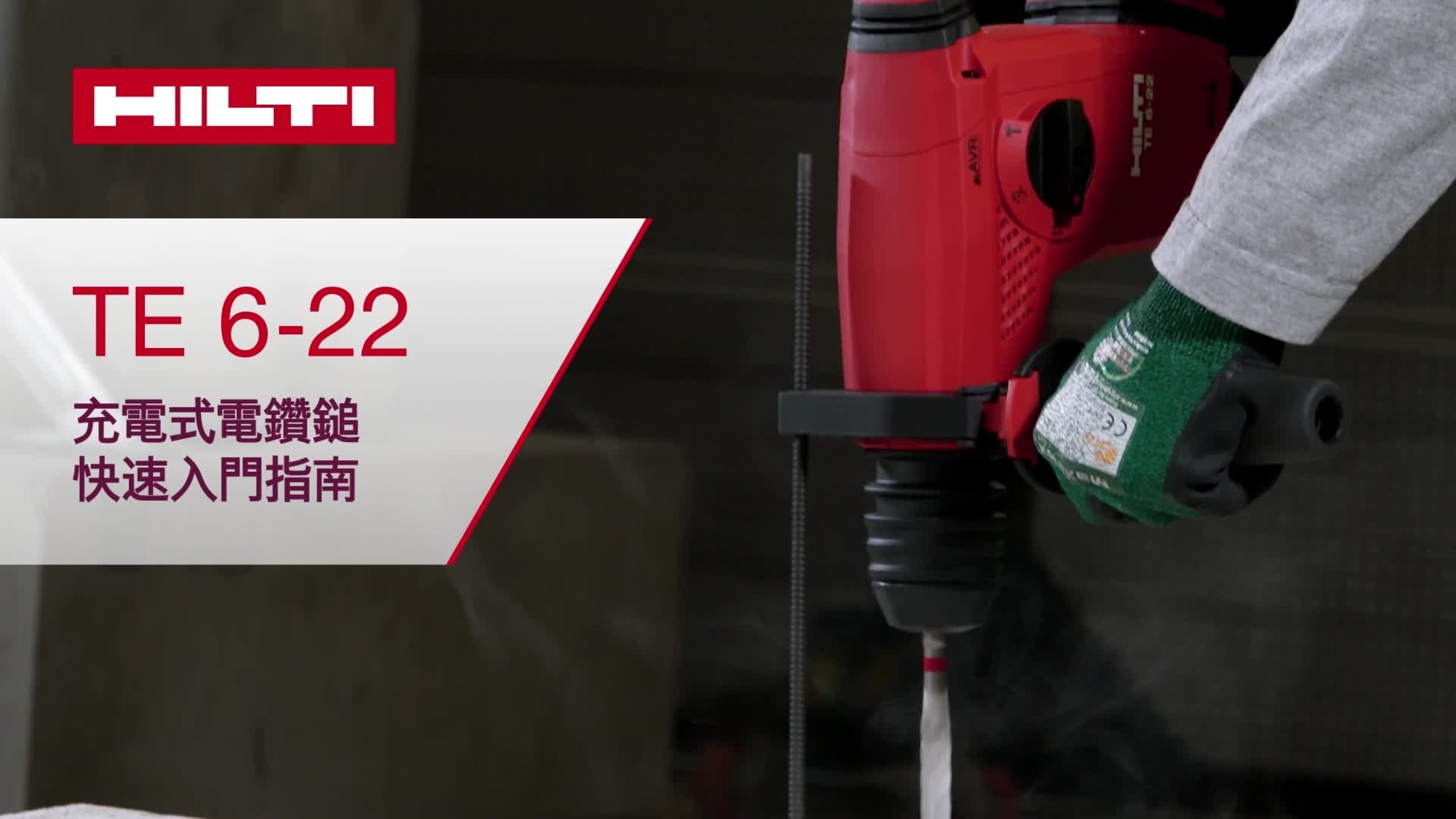

TE 6-22 Cordless rotary hammer

Name: TE 6-22 Cordless rotary hammer
Brand: Hilti
SKU: r13250305

Versatile SDS Plus cordless rotary hammer with wide drilling range, chipping function and quick-change chuck (Nuron battery platform)

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery

2.84 kg

Optimum hammer drilling range

6 - 18 mm

Single impact energy

2.6 J

Hammer drilling diameter range

4 - 28 mm

Hammer drilling RPM

1050 rpm

Full hammering frequency

5100 impacts/minute

Functionality

Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiselling, Chipping, Depth gauge, Removable chuck, Reverse mode, Torque clutch

Triaxial vibration value for hammer drilling into concrete (ah,HD)

10.7 m/s² ¹

Triaxial vibration for chiselling in concrete

5.5 m/s² ²

A-weighted emission sound power level

102 dB (A) ³

A-weighted emission sound pressure level

94 dB (A) ⁴

Dust removal system available

TE DRS-4/6, TE DRS-C, TE DRS-D

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Performance, versatility and ergonomics in one – the TE 6-22 cordless rotary hammer has a wide drilling range, chiselling function and more comfort for all-day use
Helps reduce fatigue – now even lighter, helping you power through larger concrete drilling jobs
Improved handling – better tool balance and contoured grips so you can drill, chip or drive more comfortably in any position
Comprehensive safety features – includes Active Torque Control (ATC) to better protect you from uncontrolled spinning if the bit sticks
Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

Drilling and hammer drilling in concrete and masonry
Virtually dust-free drilling (TE DRS-4/6 on-board dust removal system or TE DRS-C vacuum cleaner connector required)
Light-duty chiselling – such as tile scraping, channel cleaning or surface correction
Occasional drilling in wood and steel (with optional quick-release chuck)
Setting anchors and drop-in anchors (with optional TE-C bit holder)

For approval or certificate information, please see individual items.

Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
After the no-cost period, repair costs are capped at max. 40% of the price of an equivalent new tool
3-month no-cost period after each paid repair

Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
High-performing tools and latest technology help to increase jobsite productivity.
Loan tools during repair to reduce downtime.
Temporary tools for peak times and special applications help to reduce investments.
Theft coverage helps to reduce financial risk and unexpected expenses.
